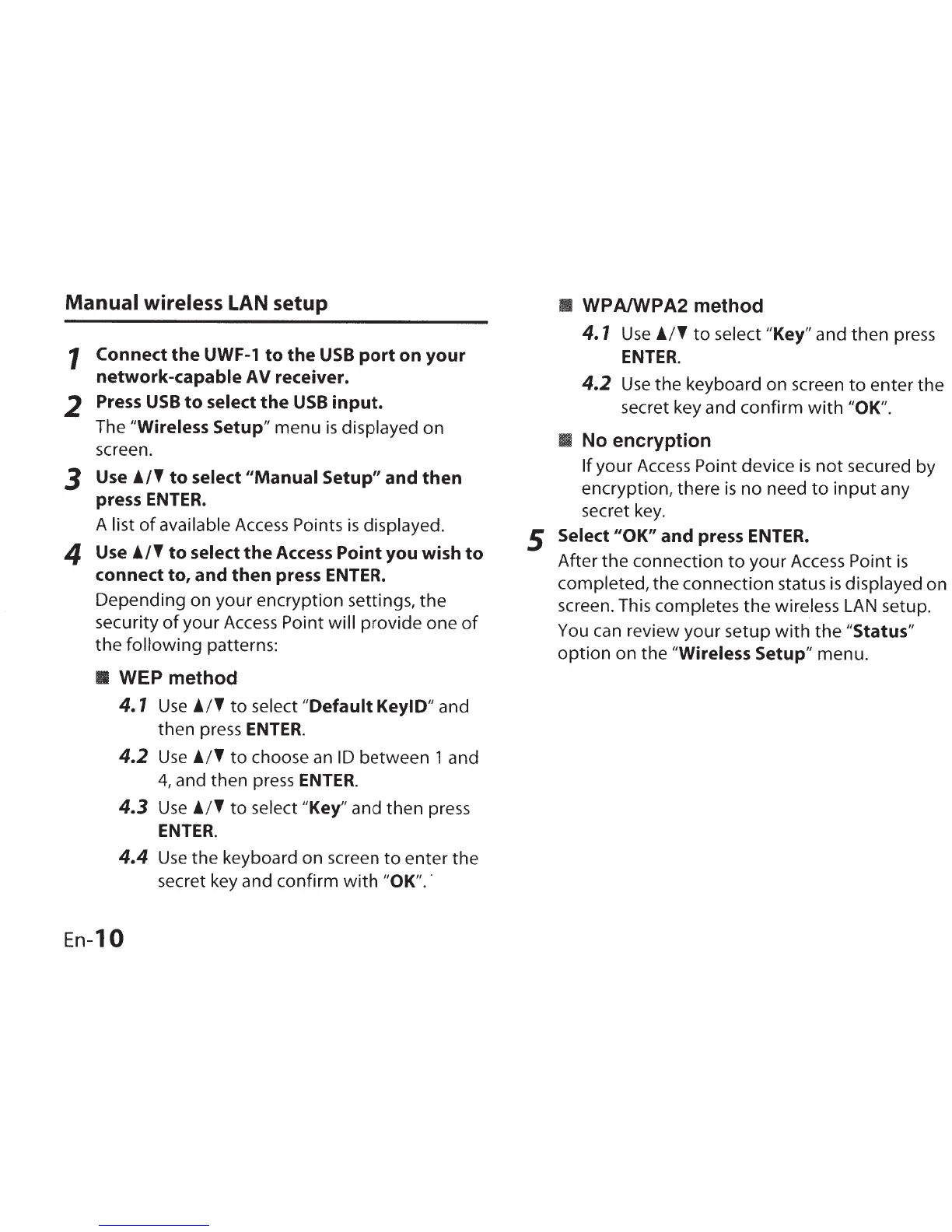

Onkyo UWF-1 User Manual

Manual
wireless LAN
setup
1
Connect
the
UWF-1 to
the
USB
port
on
your
network-capable
AV
receiver.
2
Press
USB
to
select
the
USB
input.
The
"Wireless Setup"
menu
is
displayed on
screen.
3
Use
!/f
to
select "Manual Setup"
and
then
press ENTER.
A list
of
available
Access
Points
is
displayed.
4
Use!/'
to
select
the
Access
Point you wish
to
connect to,
and
then
press ENTER.
Depending on
your
encryption settings,
the
security
of
your
Access
Point
will provide one
of
the
following
patterns:
• WEP method
4. 1
Use
!/'
to
select
"Default KeyiD"
and
then press
ENTER.
4.2
Use
!/'
to
choose an
ID
between 1 and
4,
and then press
ENTER.
4.3
Use
!/'
to
select ''Key"
and then press
ENTER.
4.4
Use
the
keyboard on screen
to
enter the
secret key and confirm
with
"OK".·
En-10
• WPAIWPA2
method
4.1
Use
!/'
to
select "Key"
and
then
press
ENTER.
4.2
Use
the
keyboard on screen
to
enter
the
secret key and confirm
with
"OK"
.
•
No encryption
If
your
Access
Point device
is
not
secured by
encryption, there
is
no need
to
input
any
secret key.
5
Select "OK"
and press ENTER.
After
the
connection
to
your
Access Point
is
completed,
the
connection status
is
displayed on
screen. This completes
the
wireless
LAN
setup.
You can review your setup
with
the
"Status"
option
on the "Wireless
Setup"
menu.

Onkyo UWF-1 Specifications

General

Interface	WLAN
Connectivity technology	Wired
Chipset	-
Internal	No
Product color	Black
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	- Mbit/s
Power consumption	310 mA
Package depth	17.5 mm
Package width	96 mm
Package height	201 mm
Package weight	100 g

Weight and Dimensions

Depth	17 mm
Width	29.8 mm
Height	8.4 mm
Weight	3.4 g
