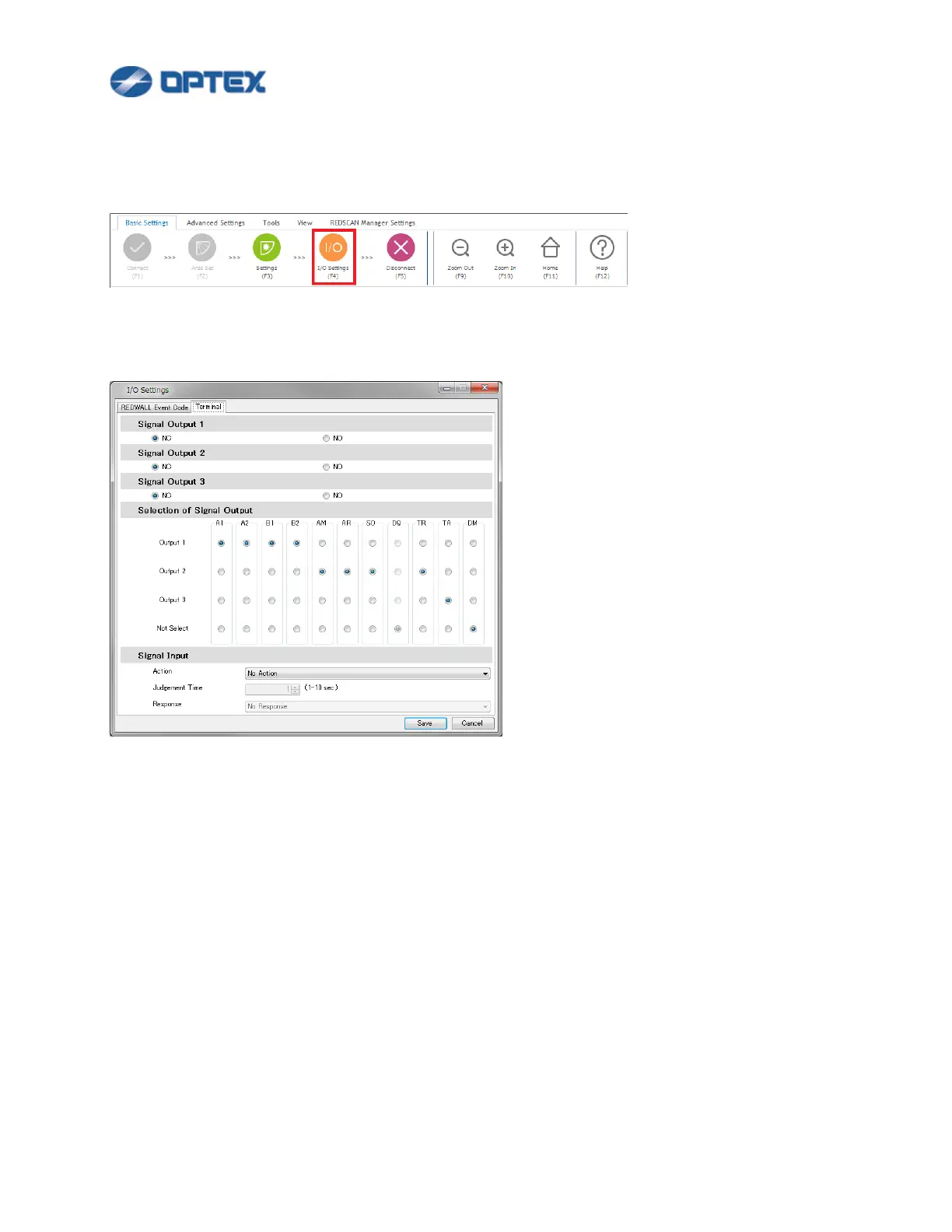

70
[Terminal Settings]
Select relay output settings. If you do not use relay output, skip this page.
1. Click I/O Settings button (the 4th button).
2. Dialog box will appear. Click Terminal tab.
RLS-2020 Terminal tab screen (Versions earlier than 2.1.0)
