Optoma Projector User Manual

13
English
Installation

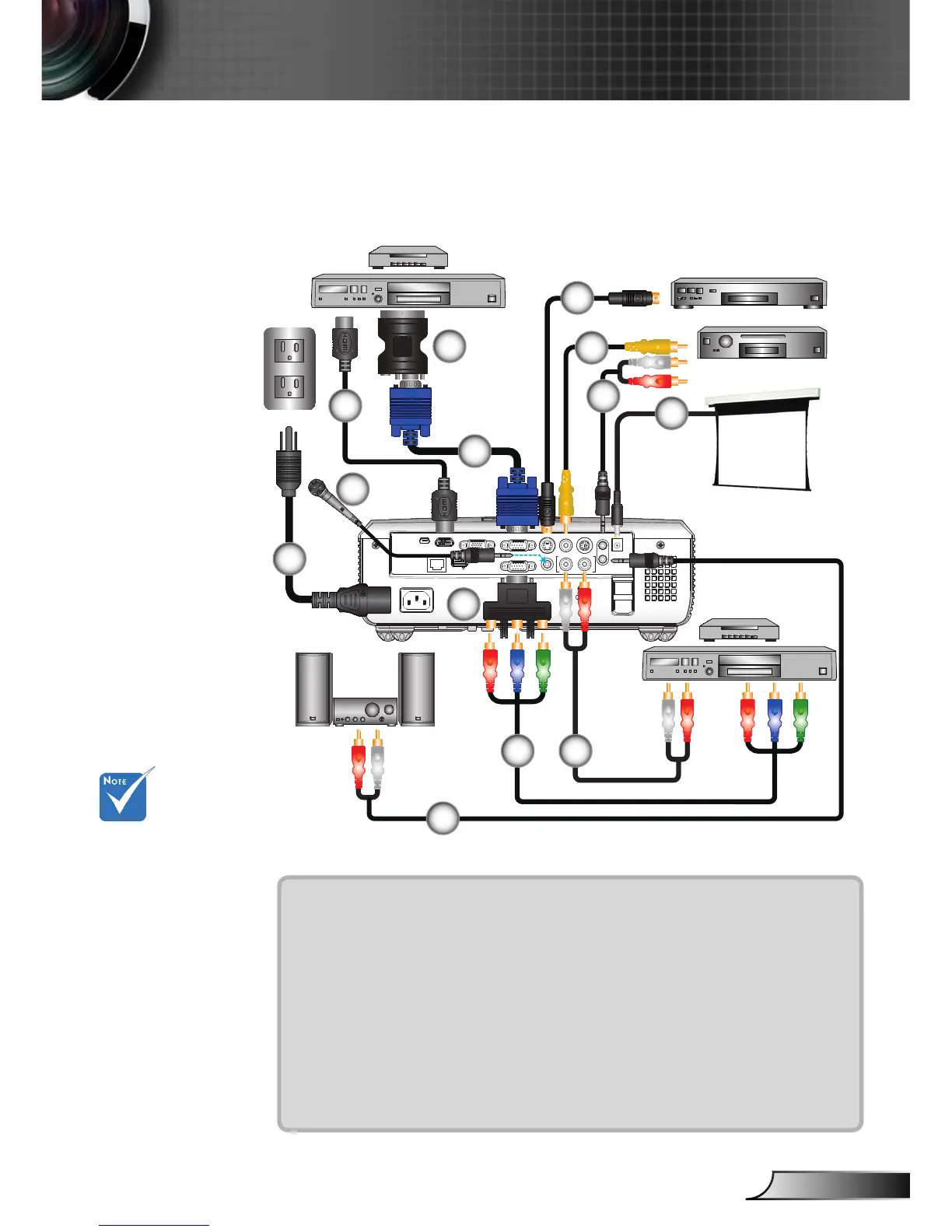

Connect to Video Sources
Due to the
difference in
applications
for each
country, some
regions may
have different
accessories.
(*) Optional
accessory
AUDIO OUT
AUDIO1-IN
(VGA1/VGA2)
RS-232
MIC
L R
AUDIO 2-IN (S-VIDEO/VIDEO)
VIDEOS-VIDEO HDMI
VGA-OUT
VGA1-IN / YPbPr
VGA2-IN / YPbPr
RJ-45
PB/MOUSE
SERVICE
12V OUT
USB /
DISPLAY
E62405SP
R
1....................................................................................................Power Cord
2..................................................................................................*HDMI Cable
3........................................................................................ *Microphone Cable
4................................................................................... *SCART/VGA Adaptor
5.....................................................................................................VGA Cable
6.............................................................................................. *S-Video Cable
7................................................................................*Composite Video Cable
8.................................................................................*Audio Cable Jack/RCA
9................................................*15-Pin to 3 RCA Component/HDTV Adaptor
10...........................................................................*3 RCA Component Cable
11. ..............................................................................*Audio Cable RCA/RCA
12.............................................................................................. *12V DC Plug
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
S-Video Output
1
4
3
2
7
8
Audio Output
6
8
5
+12V Output
9
10 11
12
