Introduction

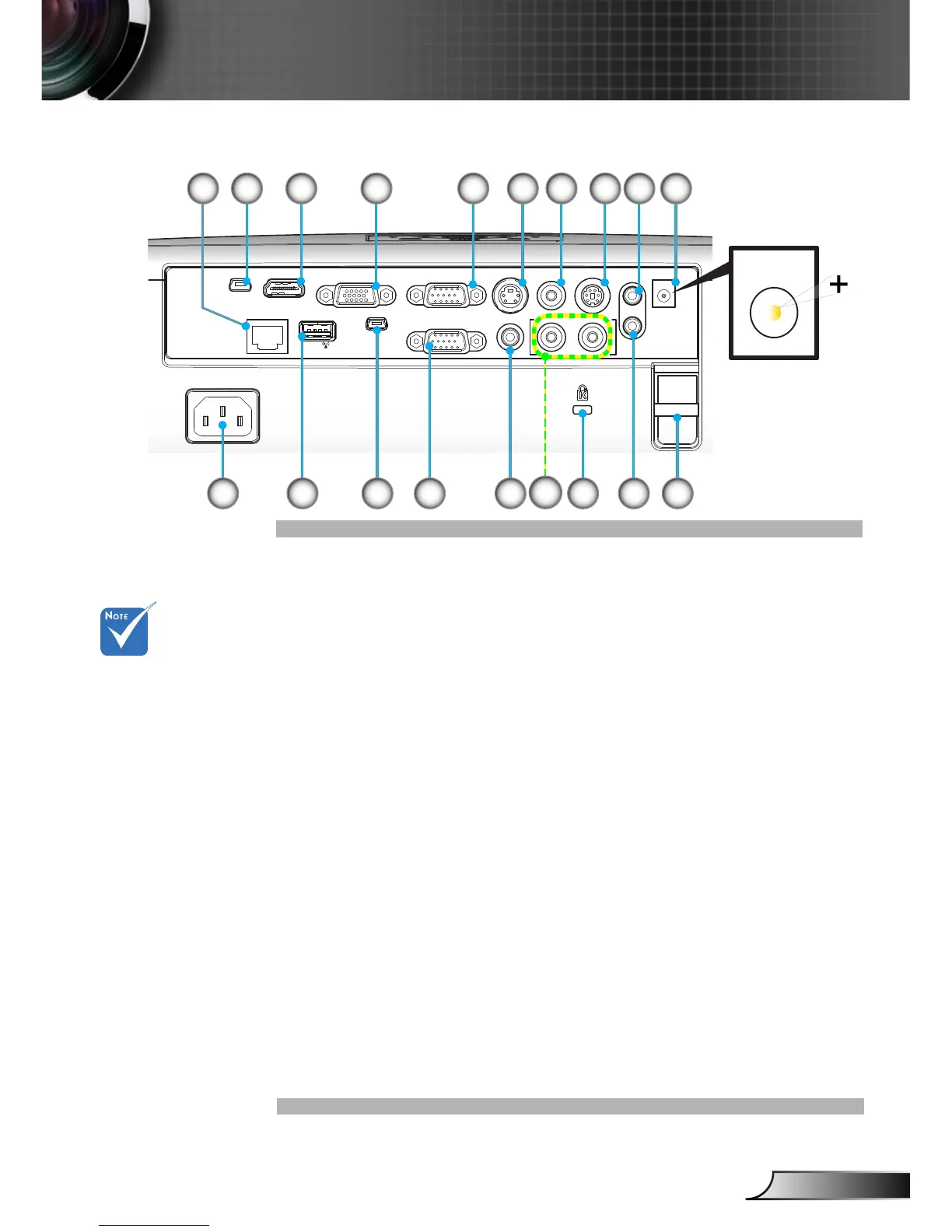

Input/Output Connections
Monitor loop
through only sup-
port in VGA1-In/
YPbPr.
AUDIO OUT
AUDIO1-IN
(VGA1/VGA2)
RS-232
MIC
L R
AUDIO 2-IN (S-VIDEO/VIDEO)
VIDEOS-VIDEO HDMI
VGA-OUT
VGA1-IN / YPbPr
VGA2-IN / YPbPr
RJ-45
PB/MOUSE
SERVICE
12V OUT
USB /
DISPLAY
1. RJ-45 Networking Connector
2. 5pin Mini-USB for interactive function and rmware upgrade
3. HDMI Connector
4. VGA-Out Connector (Monitor Loop-through Output)
5. VGA1-In/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
6. S-Video Input Connector
7. Composite Video Input Connector
8. RS-232 Connector (3-pin DIN Type)
9. Audio 1 Input connector (3.5mm mini jack)
(for VGA1/VGA2)
10. 12V Trigger Relay Connector (12V, 750mA)
11. Security Bar
12. Audio Output Connector (3.5mm Mini Jack)
13. Kensington
TM
Lock Port
14. RCA Audio 2 Input connector (Left & Right)
(for S-Video/Video)
15. Microphone Input Connector
16. VGA2-In/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
17. 5pin Mini-USB for Display
18. USB for Wireless dongle & Thumb drive
19. Power Socket
6542
13 1119
1
16 12
3 7 8 9 10
14
15
12V OUT
1718
