1. Remove the split pin by pulling and turning it using pliers.
2. Turn the handle counter clock wise one turn to increase pressure.
3. Re-install the split pin with a small hammer.

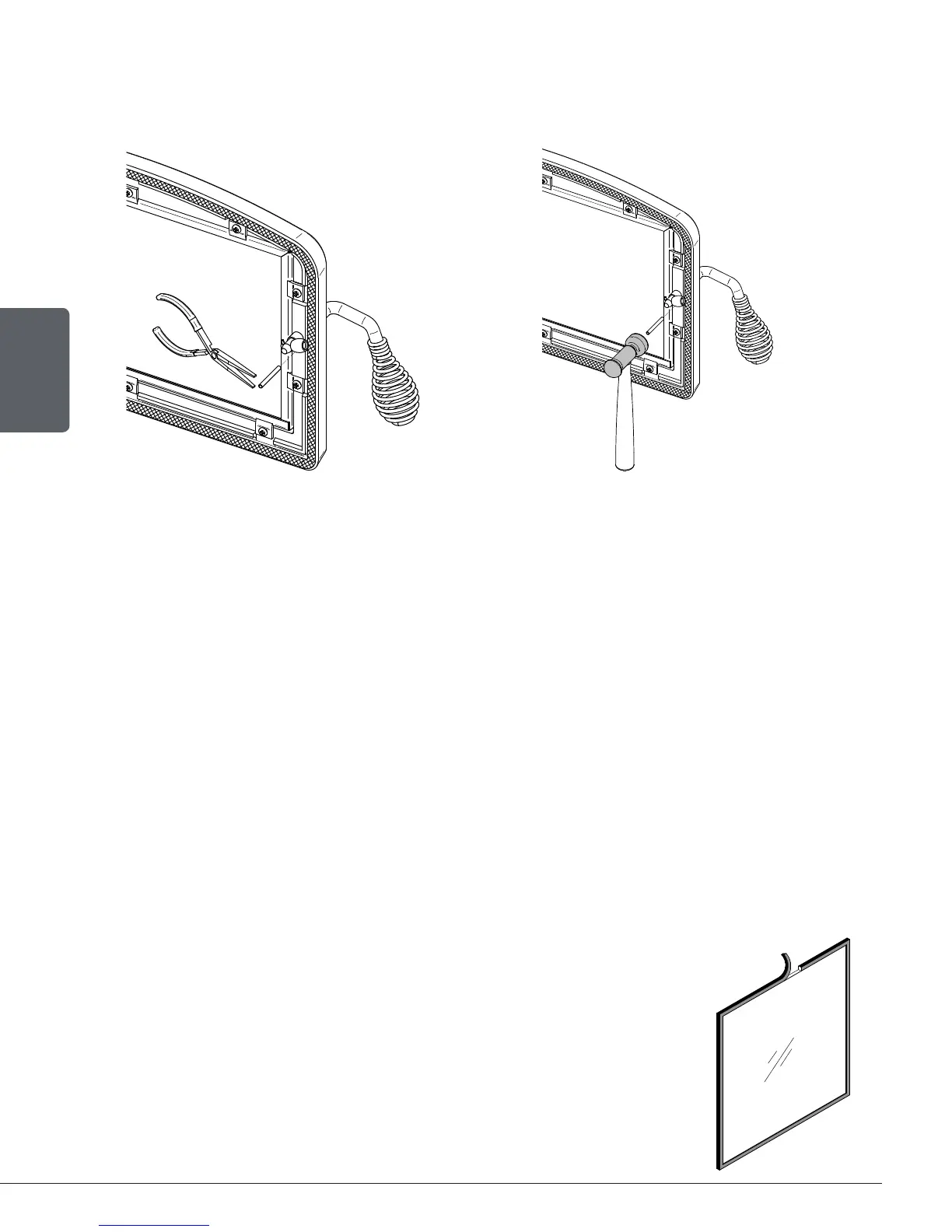

Figure 18: Removing the split pin Figure 19: Installing the split pin
5.1.3 Replacing the Door Gasket
It is important to maintain the gasket in good condition. After a year or more of use, the door
gasket will compress and become hard, which may allow air to leak past it. You can test the
condition of the door gasket by closing and latching the door on a strip of paper. Test all around
the door. If the paper slips out easily anywhere, it is time to replace the gasket.
Use the correct replacement gasket that you can purchase from your retailer. The diameter and
density of the gasket is important to getting a good seal.
Place the door face-down on something soft like a cushion of rags or piece of carpet. Remove
the old gasket from the door by pulling and prying it out with an old screw driver. Then use the
screwdriver to scrape the old gasket adhesive from the door. Now run a 1/4" (6 mm) bead of
high temperature silicone in the door gasket groove. Starting from the middle of the hinge side,
press the gasket into the groove. Do not stretch the gasket as you place it. Leave the gasket
about 1/2" long when you cut it and press the end into the groove. Tuck any loose fibres under
the gasket and into the silicone. Close the door and do not use the stove for 24 hours.
5.1.4 Replacing the Glass or the Glass Gasket
It is a good idea to replace the glass gasket when the door gasket is
replaced. The gasket is flat, adhesive-backed, woven fibreglass. Remove
the glass retaining screws and clips. Lift out the glass and pull off the old
gasket. This is a good time to clean the glass thoroughly.
The gasket must be centred on the edge of the glass. To do this easily,
peel back a section of the paper covering the adhesive and place the
gasket on a table with the adhesive side up. Stick the end of the gasket
to the middle of one edge, then press the edge of the glass down onto
the gasket, taking care that it is perfectly centred on the gasket.
