Page 55
Installation and Operation Manual - 2000
ENGLISH

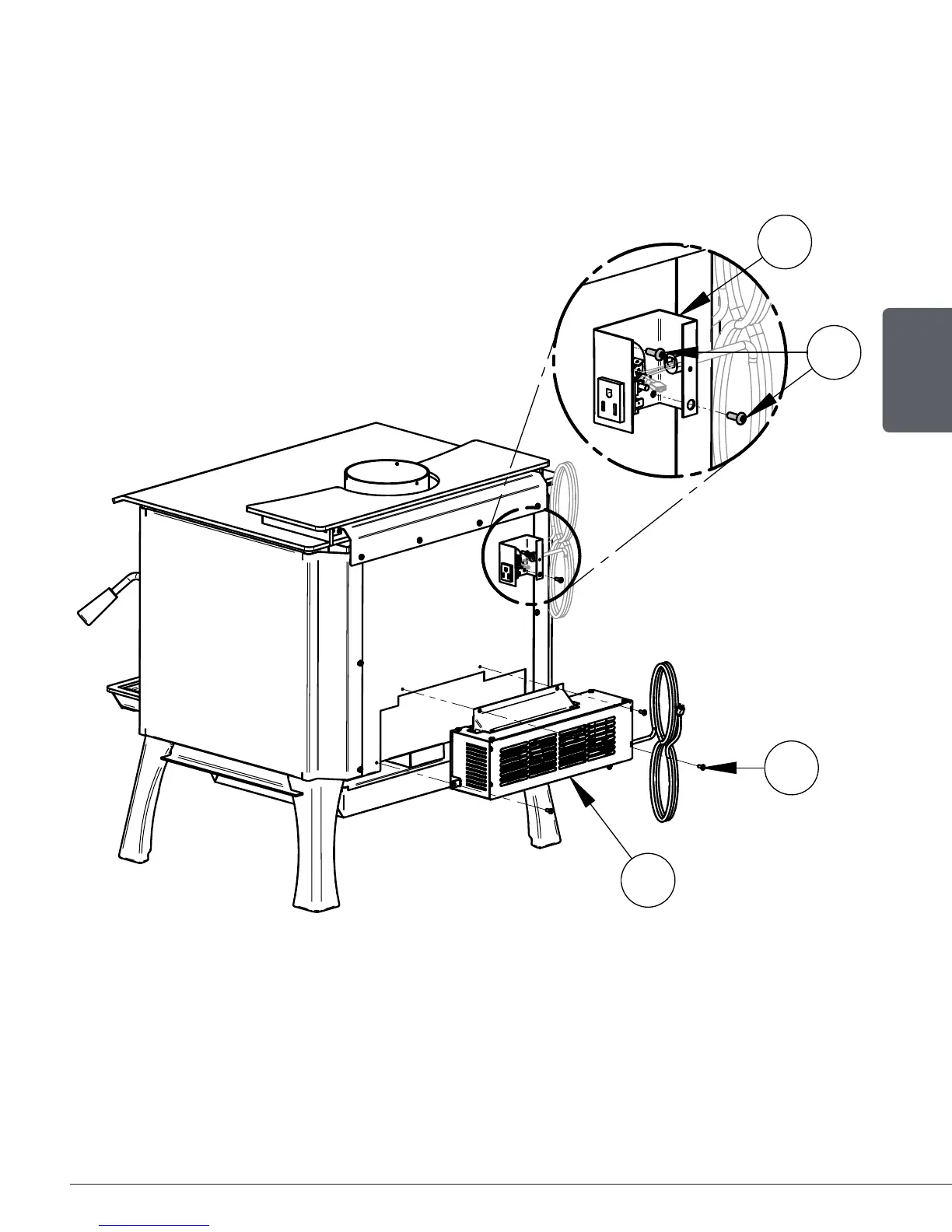

APPENDIX 7: BLOWER AND OPTIONAL THERMODISC INSTALLATION
A blower (E) is included with this wood stove. The installation of the blower is identical for a
stove on legs or pedestal. A thermodisc, sold separately, can also be installed (B). It allows the
blower to operate only when the stove is hot enough. See the instructions provided with the
thermodisc for more details.
C
B
E
D
Screw the blower (E) into place using the screws (D) included in the installation manual. Screw
the thermodisc (B) with the screws (C) supplied with the thermodisc on the back of the stove.
Ensure that the blower’s power cord is not in contact with any surface of the stove to
prevent electrical shock or fire damage. Do not run the power cord beneath the stove.
