APPENDIX 8: AIR TUBES AND BAFFLE INSTALLATION

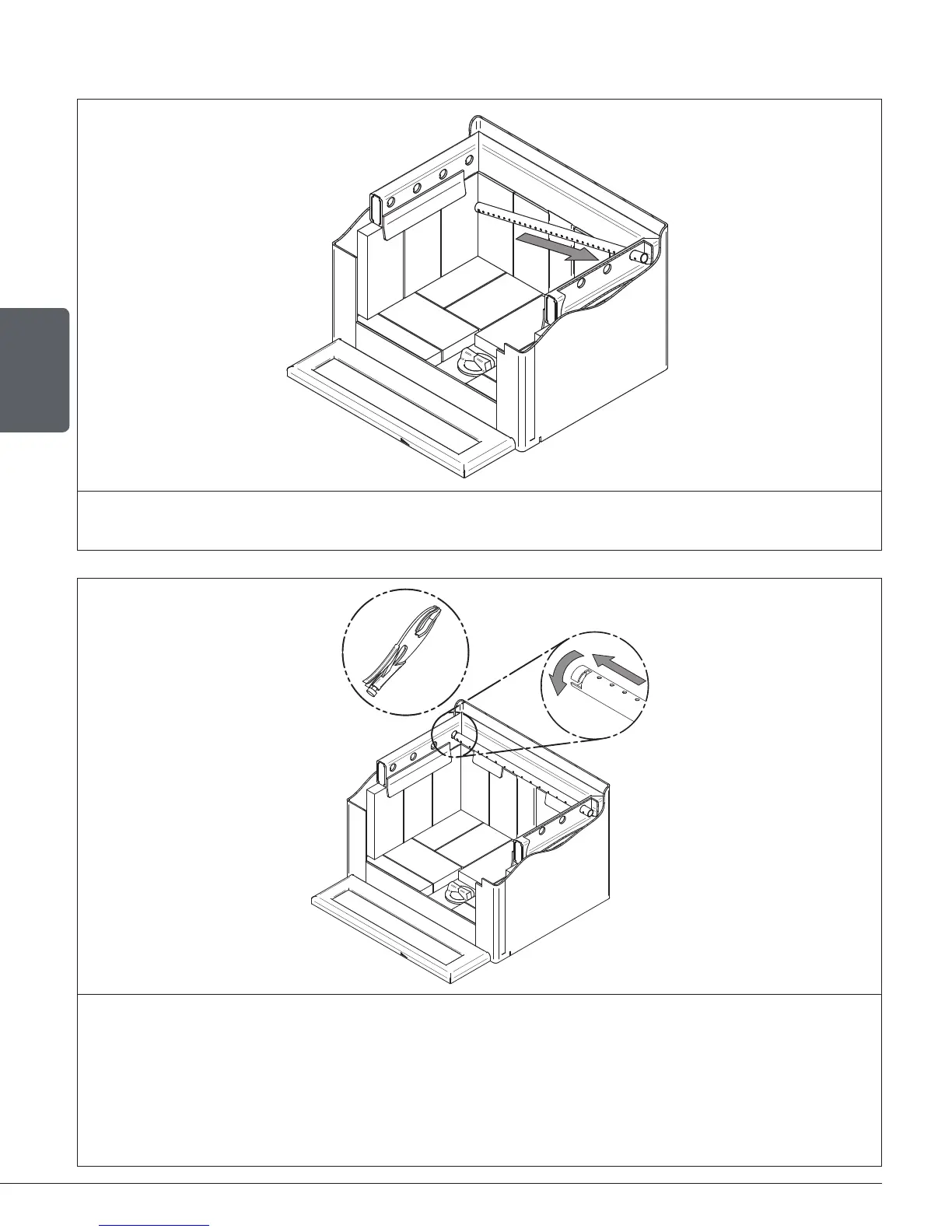

1. Starting with the rear tube, lean and stove the right end of the secondary air tube into the rear
right channel hole. Then lift and stove the left end of the tube into the rear left channel.
DETAIL A
2. Align the notch in the left end of the tube with the key of the left air channel hole. Using a « Wise
grip » hold the tube and lock it in place by turning the tube as shown in detail A . Make sure the
notch reaches the end of the key way.
3. Repeat steps 1 and 2 for the two tubes in the back then install the baffle before installing the
two front tubes.
4. To remove the tubes use the above steps in reverse order.
