If test operation does not proceed correctly
Carry out test operation after approximately 12 hours have passed
since the power was turned on (crankcase heater is energized). If
operation is started by using the remote control within 1 minute of
turning on the power, the outdoor unit settings will not be made
correctly and correct operation will not be possible.
If the following symptoms occur after turning on the power,
check the wiring connections once more.
•
• •
• For standard installation

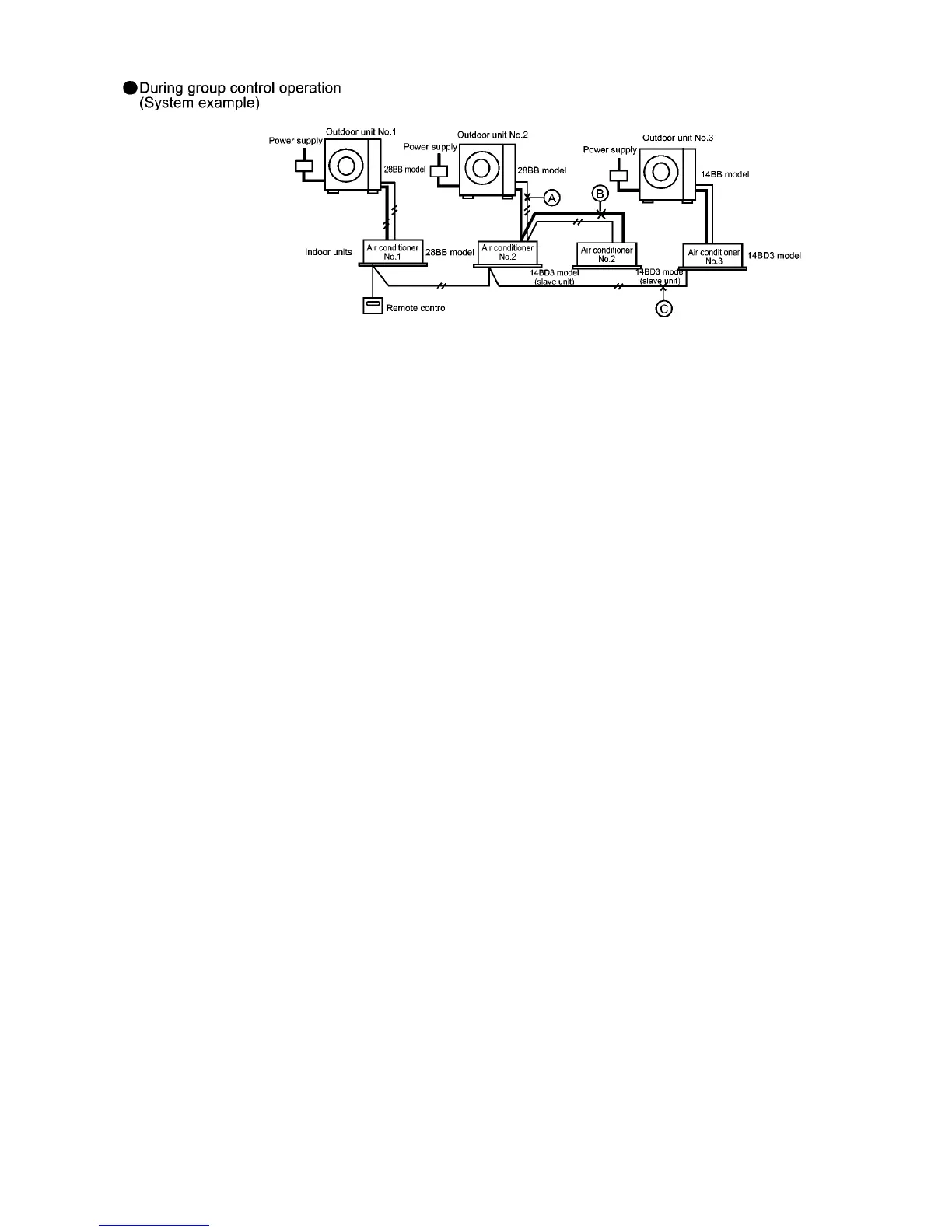

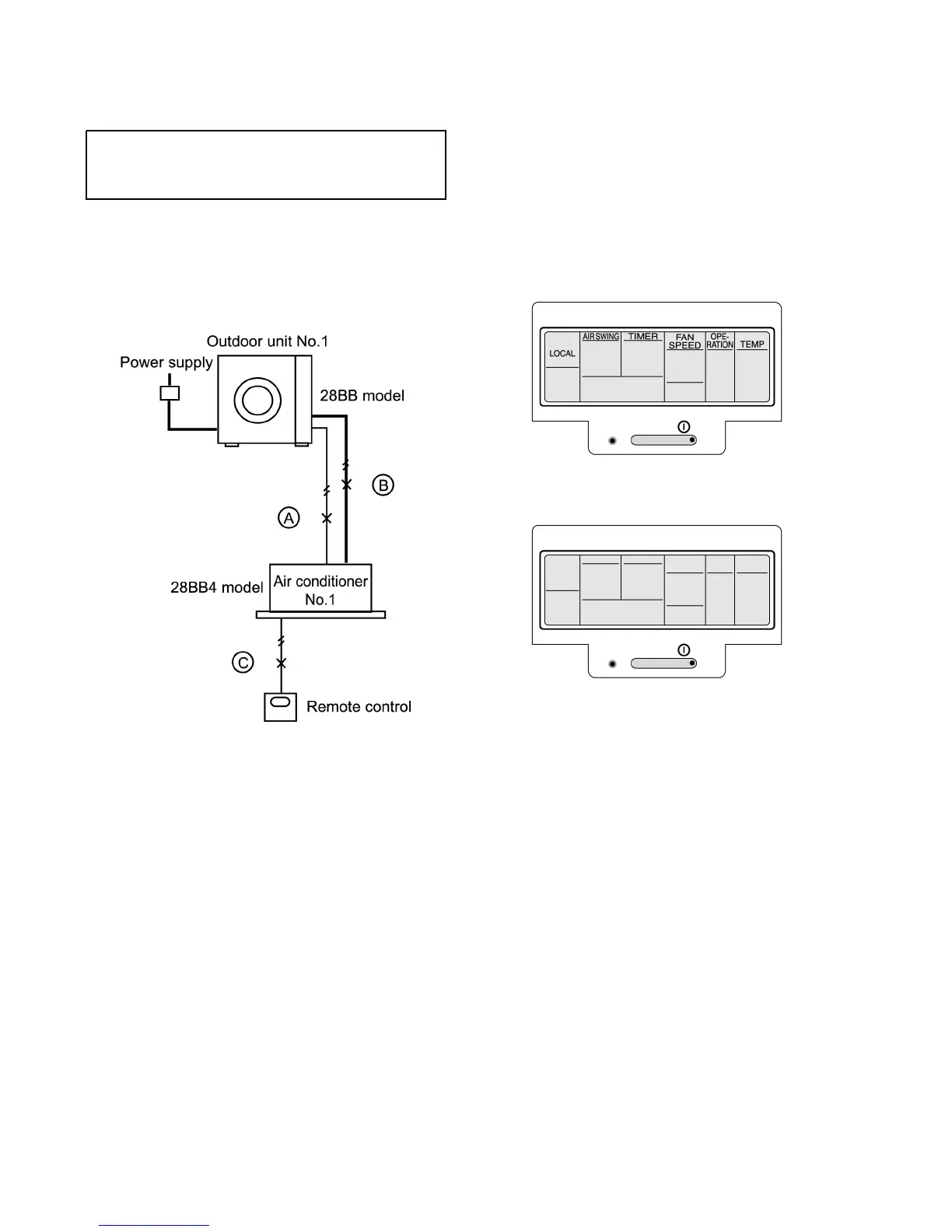

(System example)
1. The main power is turned on while the indoor-outdoor
transmission wires are not connected (open circuit at
section A)
Symptom:
Remote control unit... “CHECK” flashes
NOTE:
Indoor unit... LED2 on printed circuit board flashes
Outdoor unit... LED3 and LED7 on printed circuit board
flash
2. The main power is turned on while the indoor-outdoor
power supply wires are not connected (open circuit at
section B)
Symptom:
Remote control unit... Display of “No power supply”
NOTE:
Indoor unit... No display
Outdoor unit... LED3 and LED7 on printed circuit board
flash
3. The main power is turned on while the remote control
unit connection cord is not connected (open circuit at
section C)
Symptom:
Remote control unit... Display of “No power supply”
NOTE:
Indoor unit... LED1 on printed circuit board stays
illuminated
Outdoor unit... LED1 on printed circuit board stays
illuminated
(When remote control display shows “Power supply”)
(When remote control display shows “No power supply”)
Remedy
1. Turn off the main power.
↓
2. Connect the disconnected wire correctly.
↓
3. Turn on the main power.
↓
4. After 1 minute, start the operation using the remote
control.
(Indoor unit operation will start according to the remote
control setting.)
(Outdoor unit operation will start after 3-5 minutes.)
NOTE:
The “CHECK” display on the remote control and the
flashing of LEDs on the printed circuit boards will not occur
immediately. They will appear 3-6 minutes after the main
power is turned on.
