Applicable piping kit
CZ-3F5, 7AEN (C7DK, C9DK, A7DK, A9DK, )
CZ-4F5,7, 10AN (C12DK, A12DK)
10.3. Select the best location
INDOOR UNIT
• There should not be any heat source or steam near the
unit.
• There should not be any obstacles blocking the air
circulation.
• A place where air circulation in the room is good.
• A place where drainage can be easily done.
• A place where noise prevention is taken into
consideration.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall,
ceiling, fence or other obstacles.
• Recommended installation height for indoor unit shall be
at least 2.3 m.
OUTDOOR UNIT
• If an awning is built over the unit to prevent direct
sunlight or rain, be careful that heat radiation from the
condenser is not obstructed.
• There should not be any animal or plant which could be
affected by hot air discharged.
• Keep the spaces indicated by arrows from wall, ceiling,
fence or other obstacles.
• Do not place any obstacles which may cause a short
circuit of the discharged air.
• If piping length is over the common length, additional
refrigerant should be added as shown in the table.

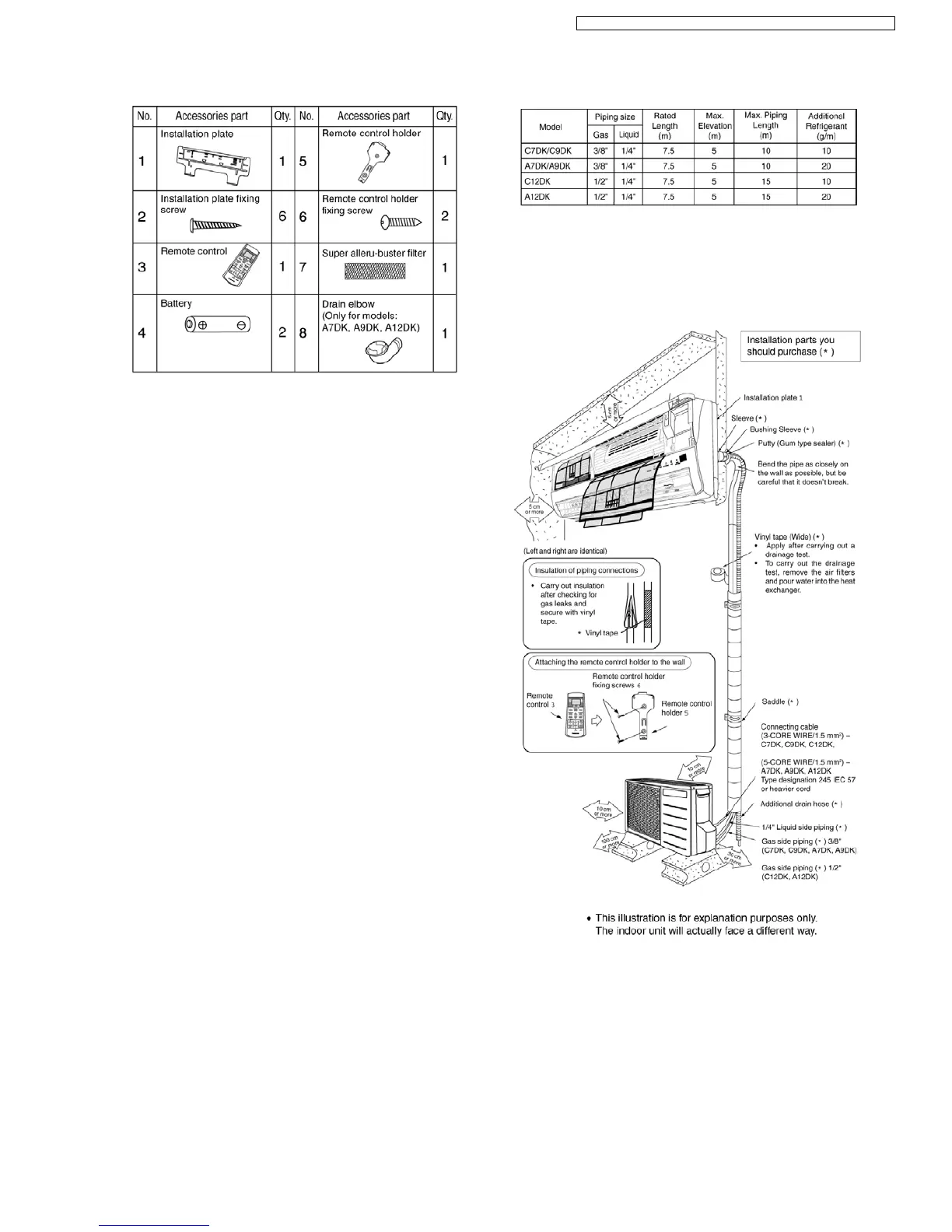

10.4. Indoor/Outdoor Unit
Installation Diagram
• This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
10.2. Attached accessories
47
CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
