53
10. Do not install the indoor unit at a laundry. Electric shocks may result.
NOTE
• Thoroughly study the following installation locations.

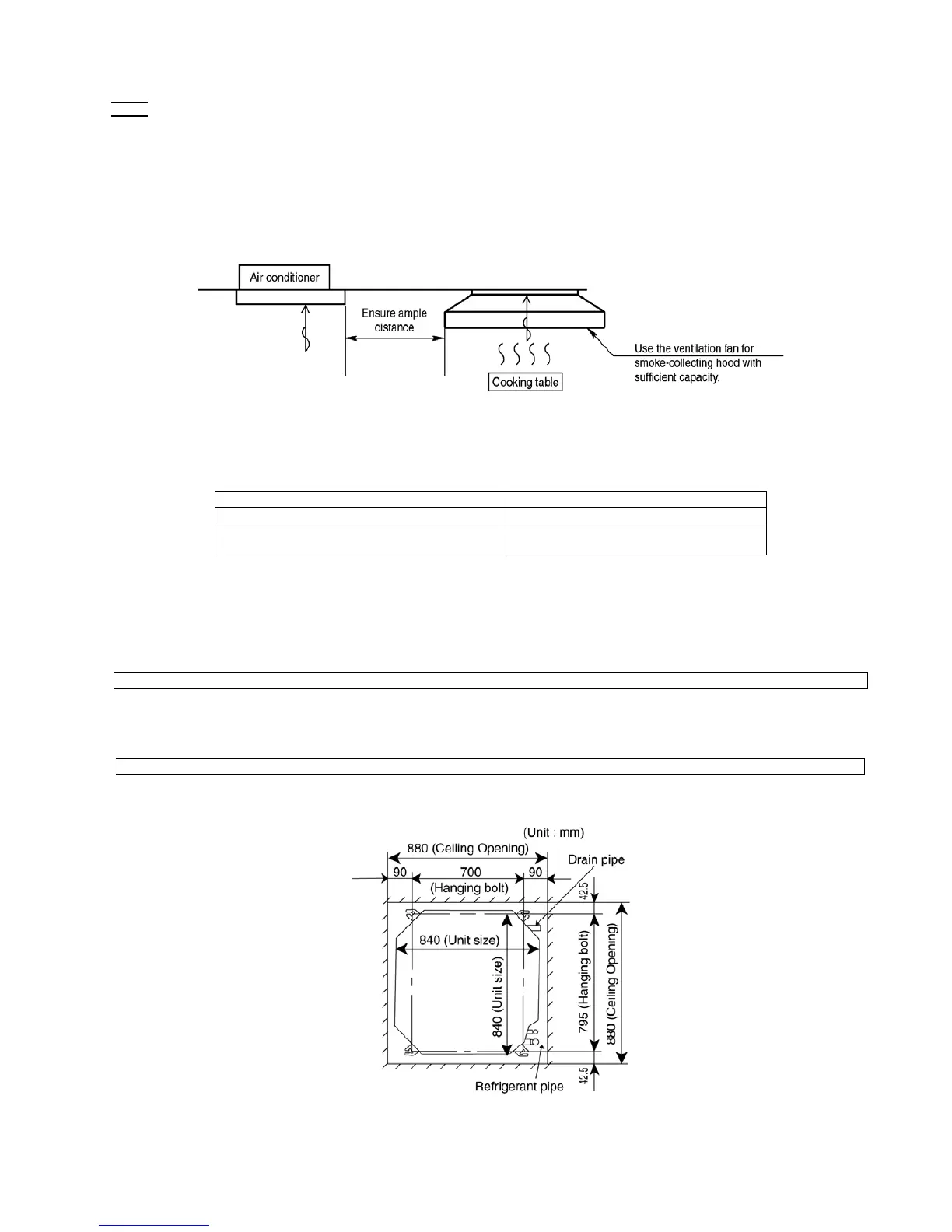

1. In such places as restaurants and kitchens, considerable amount of oil steam and flour adhere to the turbo fan, the fin of the
heat exchanger and the drain pump, resulting in heat exchange reduction, spraying, dispersing of water drops, drain pump
malfunction, etc.
In these cases, take the following actions:
• Make sure the ventilation fan for smoke-collection hood on a cooking table has sufficient capacity so that it draws oily steam
which should not flow into the suction of the air conditioner.
• Make enough distance from cooking room to install the air conditioner in such place where it may not suck in oily steam.
2. Avoid installing the air conditioner in such circumstances where cutting oil mist or iron powder exist especially in factories, etc.
3. Avoid places where inflammable gas is generated, flows-in, contaminated, or leak.
4. Avoid places where sulphurous acid gas or corrosive gas can be generated.
5. Avoid places near high frequency generators.
10.4.3. Installation of indoor unit
This air conditioner uses a drain up motor.
Horizontally install the unit using a level gauge.
The paper model for installation expand or shrink according to temperature and humidity.
Check on dimensions before using it.
• The dimensions of the paper model for installation are the same as those of the ceiling opening dimensions.
• Be sure to discuss the ceiling drilling work with the workers concerned.
Model Name Height in the ceiling
CS-F24DB4** CS-F28DB4** 246 mm or more
CS-F34DB4** CS-F43DB4** 288 mm or more
CS-F50DB4**
CEILING OPENING DIMENSIONS AND HANGING BOLT LOCATION
Caution During the installation, care must be taken not to damage the electric wires.
To Next Page
