10.6. Wired remote control installation
Wired Remote Control Installation Manual
• Before installing the wired remote controller, be sure to thoroughly read the “Notes with regard to safety” section of the
installation manual provided with the indoor unit.
• After installing the wired remote controller, carry out a test operation to check that the remote controller functions properly, and
also explain the operation and cleaning procedures to the customer in accordance with the details in instruction manual.
Furthermore, ask the customer to keep this installation manual and the instruction manual in a safe place for later reference.

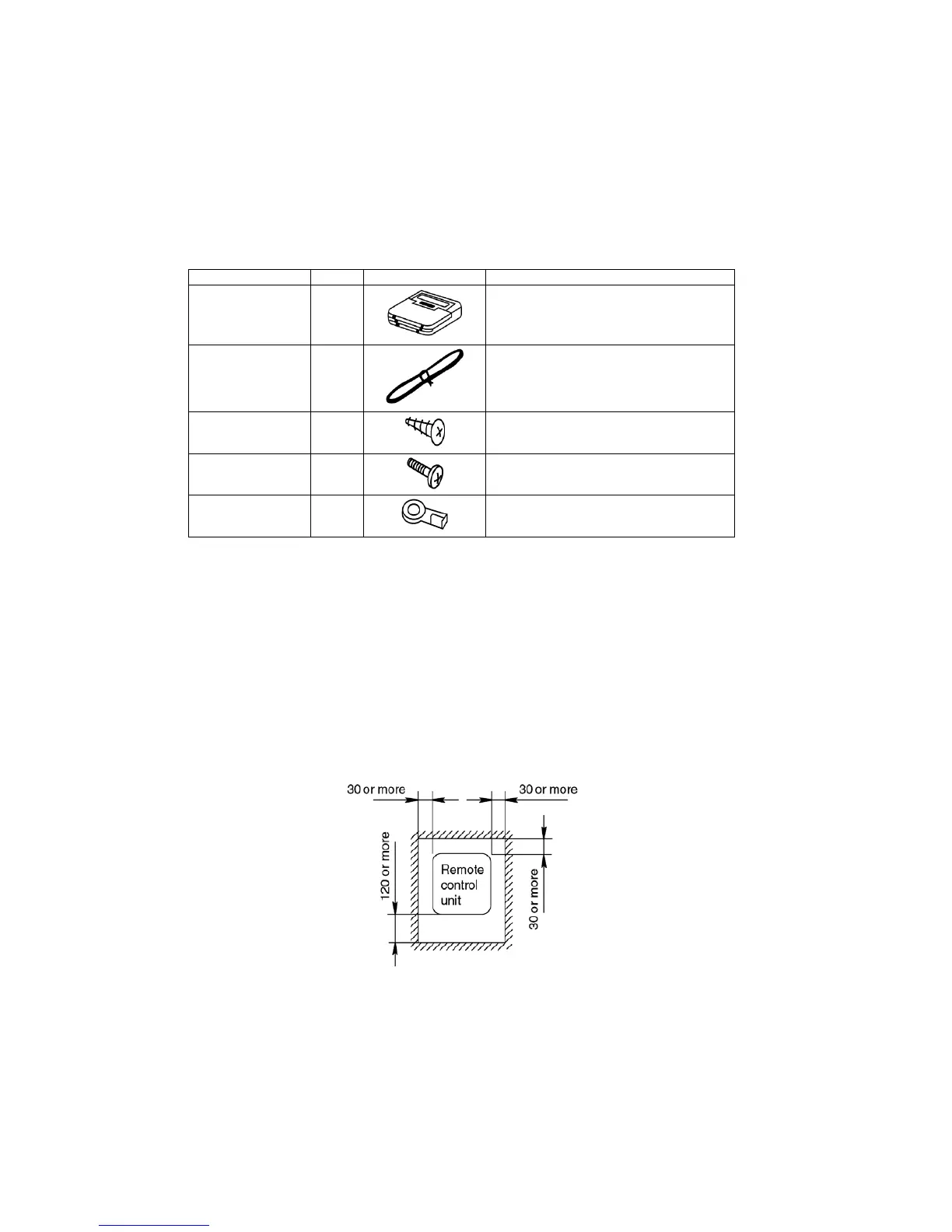

10.6.1. Accessories supplied with wired remote controller
10.6.2. Notes regarding wired remote controller setting-up location
• Select a place where the remote controler can be operated easily (after obtaining approval from the building’s owner).
• Install in a place which is away from direct sunlight and as free from humidity as possible.
• Install in a place which is as flat as possible to avoid warping of the remote controller.
(If installed to a wall an uneven surface, damage to the LCD case or operation problems may result.)
• Install in a place where the LCD can be seen easily. If the remote controller is installed somewhere which is too low or too high,
it may be difficult to read the LCD. (Standard height from the floor is 1.2 to 1.5 meters.)
• Avoid installing the remote control cable near refrigerant pipes or drain pipes.
• Install the remote control cable at least 5cm away from other electric wires (including stereo and TV cables) to avoid mis-
operation (electromagnetic noise).
• If passing the remote control cable through a wall, be sure to install a water trap above the cable.
• Allow sufficient space around the remote controller as shown in the illustration at right.
Secure the remote controller lower case to the wall or to an outlet.
10.6.3. Remote controller installation
• Be sure to turn off the main power before installing and connecting the remote controller.
(If the remote controller is connected while the power is still turned on, the remote controller displays may not appear.)
If no displays appear on the remote controller, check while referring to “If no remote controller displays appear” in “5 Test
operation”.
• The remote control cable is live during use, so please be careful with it.
Name Q’ty Diagram Remark
Remote controller
1
Remote control cable 1 Length (10m)
4mm screw 3 Installing the remote controller to the wall
M4 screw 3 Installing the remote controller to an outlet box
Round terminal 2 Connecting to indoor unit terminal block
