3.6. How to Define the Model Suffix (NTSC or PAL model)
There are nine kinds of DMC-LX5, regardless of the colours.
• a) DMC-LX5 (Japan domestic model), DMC-LX5SG
• b) DMC-LX5P/PC
• c) DMC-LX5EB/EF/EG/EP
• d) DMC-LX5EE
• e) DMC-LX5GT
• f) DMC-LX5GK
• g) DMC-LX5GD
• h) DMC-LX5GN
• i) DMC-LX5GC/PU
What is the difference is that the “INITIAL SETTINGS” data which is stored in Flash-ROM mounted on MAIN P.C.B..

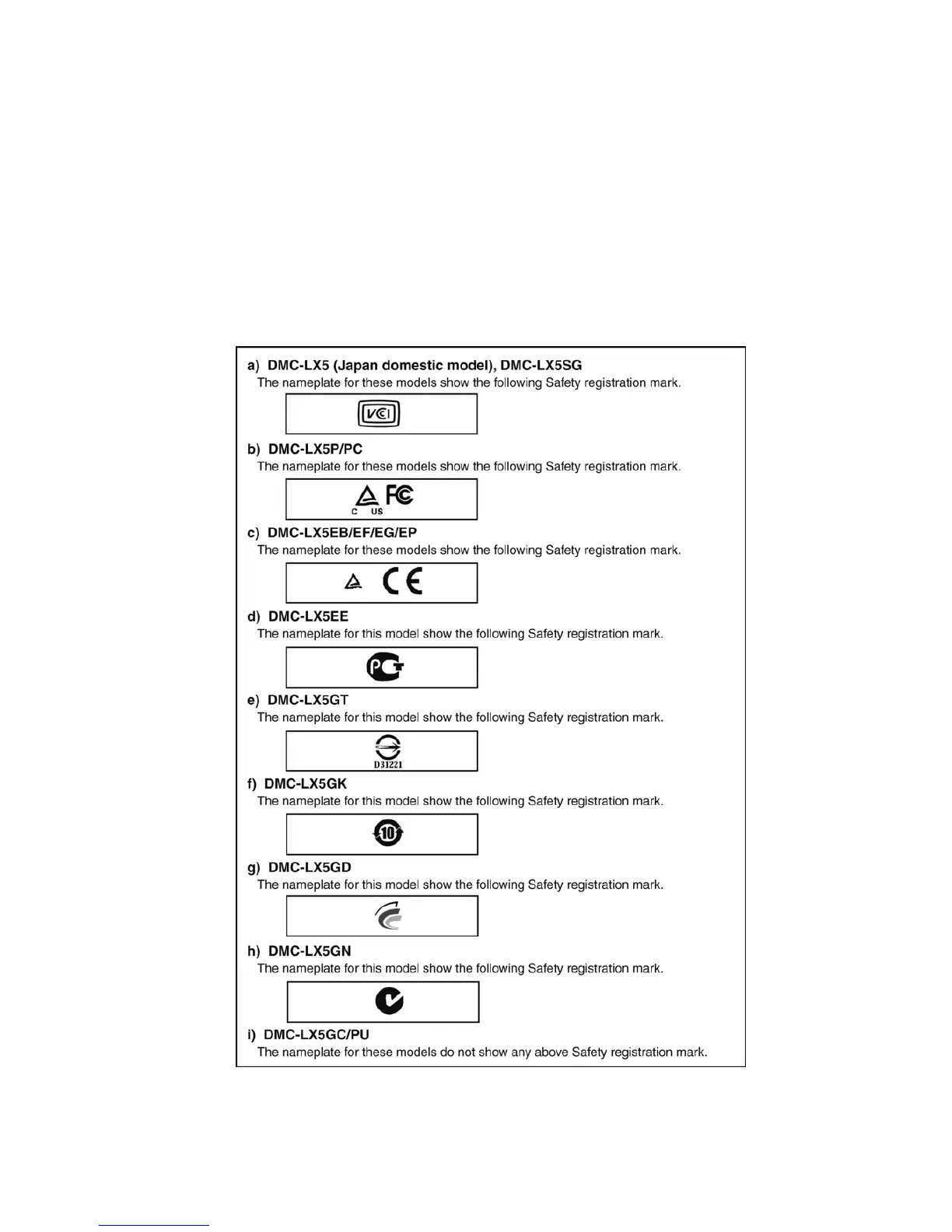

3.6.1. Defining methods:
To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.
NOTE:
After replacing the MAIN P.C.B., be sure to achieve adjustment.
The service software is available at “TSN Website”. To download, click on “Support Information from NWBG/VDBG-AVC”.
