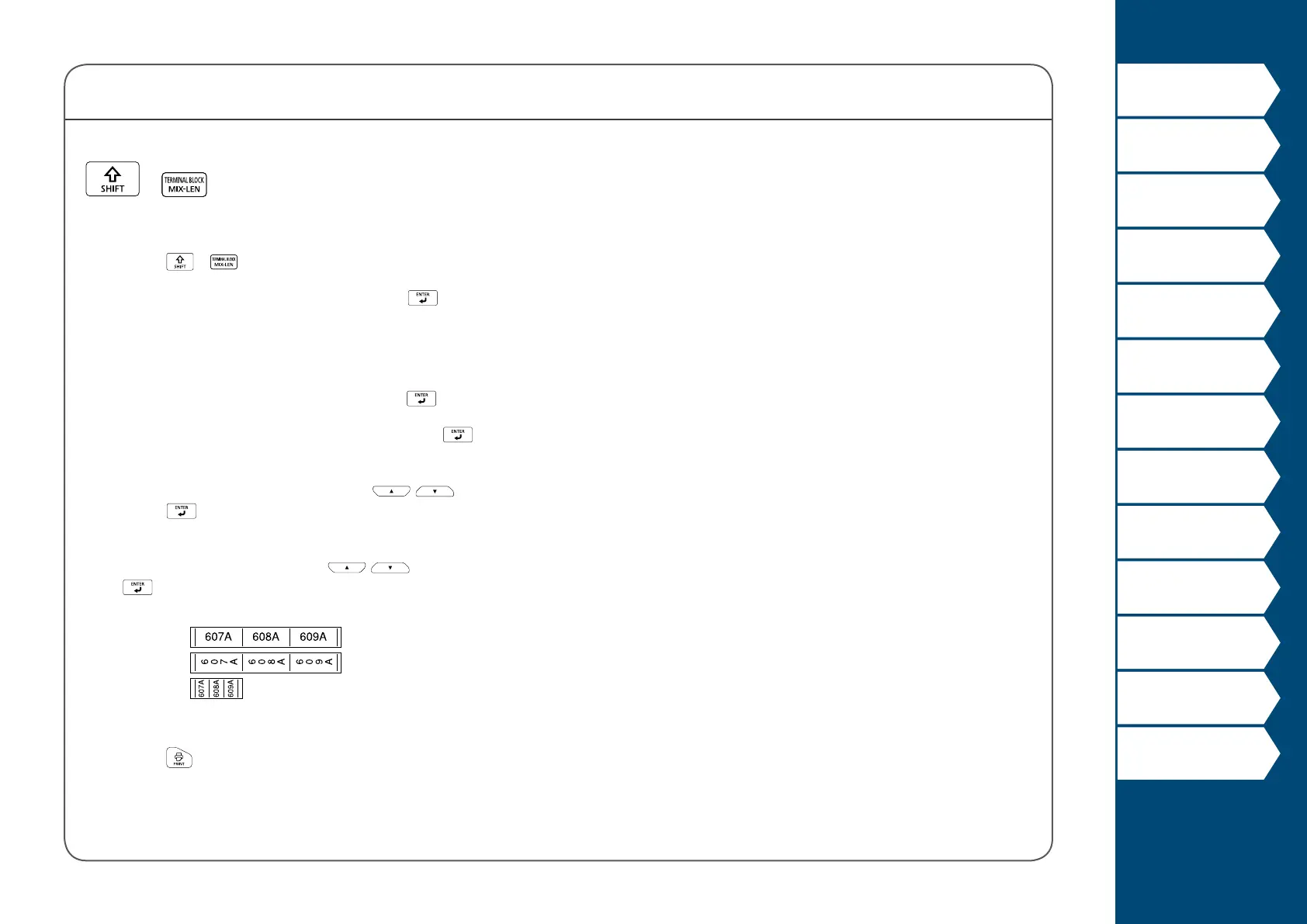

Terminal Block Mode
Creating Labels for Terminal Block
+
You can create labels optimized for terminal blocks by
setting the pitch length and label length.
1. Press
+ .
2. Select the length type and then press
.
In this example, we will select "Pitch".
Pitch: Sets the length by pitch length.
Label: Sets the length by label length.
3. Enter the pitch length and then press
.
4. Enter the terminal number and then press
.
In this example, we will enter "03".
5. Select the type of separator with
/ and then
press
.
In this example, we will select "Line".
6. Select the orientation with
/ and then press
.
In this example, we will select "Vert.2".
Hori.
Vert.1
Vert.2
7. Enter the text.
8. Press
.

Panduit MP300 Specifications

General

Print technology	-
Maximum resolution	360 x 360 DPI
Maximum printing width	- mm
Display	LCD
Product color	Black, Grey
USB port	Yes
Certification	RoHS
Cables included	USB

Weight and Dimensions

Width	295 mm
Height	97 mm
