Pentair BERKELEY HN Series User Manual

Repair Parts 10
REPAIR PARTS LIST
§ Seal and Gasket Kit PP1550 PP1550 PP1551 PP1551
# Overhaul Kit PP1560 PP1561 PP1563 PP1554
NOTE: § Included in Seal and Gasket Kit.
# Included in Overhaul Kit.
SERVICE KITS

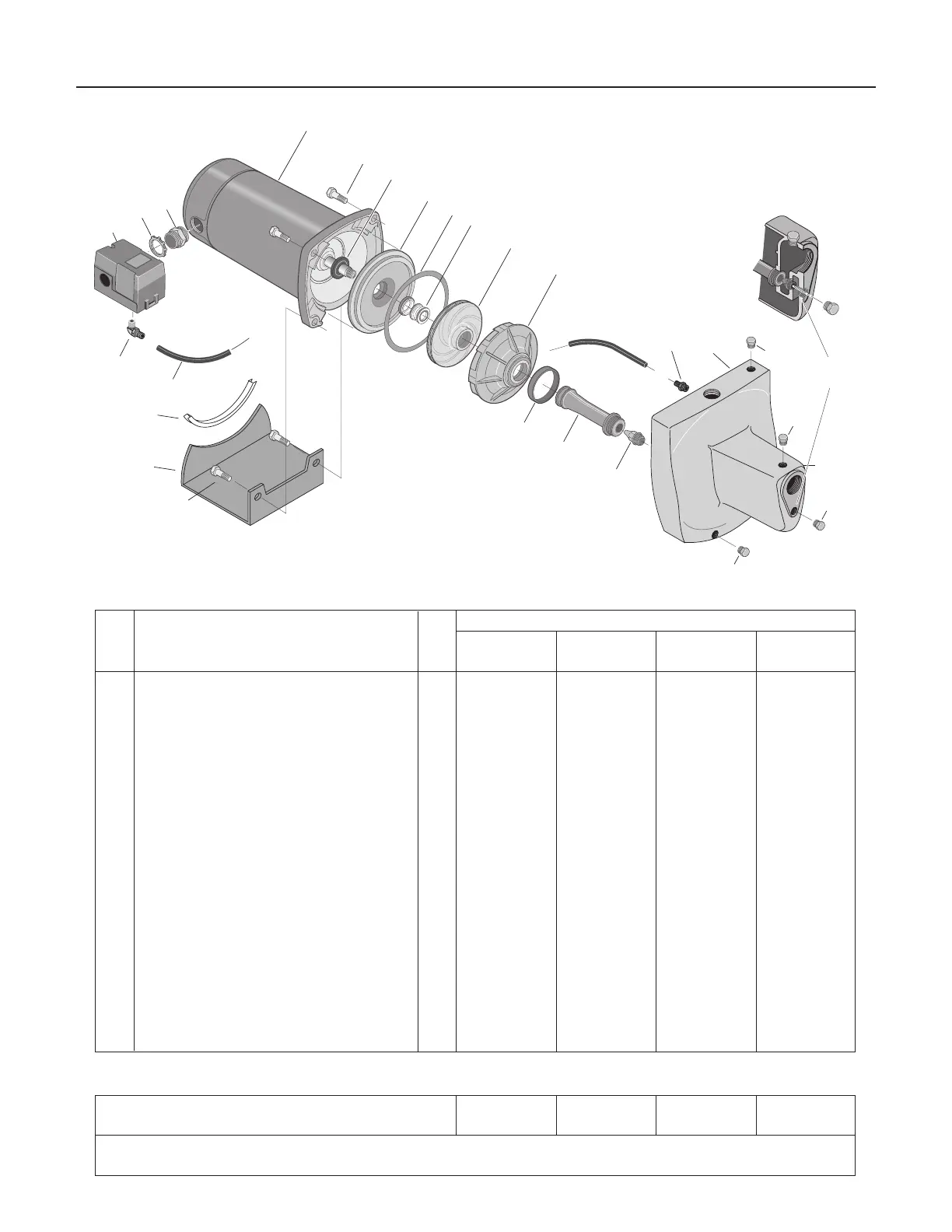

Exploded View
Models 5SN, 7SN, 10SN, 15SN
1
2
3
4
5
6
7
8
11
12
12
12
12
11A
9
10
11B
18
19
20
14
13
15
16
17
2763 0197
Nozzle
Cleanout
Port
AVC Port
Model and Horsepower
Key Part No. 5SN 7SN 10SN 15SN
No. Description Used 1/2 HP 3/4 HP 1 HP 1-1/2 HP
1 Motor 1 J218-582APKG J218-590PKG J218-596PKG J218-601PKG
2 Hex Capscrew - 3/8” - 16 x 1-1/4” Lg. 4 U30-75ZP U30-75ZP U30-76ZP U30-76ZP
#§3 Water Slinger 1 17351-0009 17351-0009 17351-0009 17351-0009
4 Seal Plate 1 N3-1043P N3-1043P L3-10 L3-10
#§5 Seal Plate Gasket 1 N20-35 N20-35 C20-21 C20-21
#§6 Shaft Seal 1 U109-6A U109-6A U109-6A U109-6A
#7 Impeller 1 J105-40P J105-42P J105-8PAN J105-22PA
#8 Diffuser 1 L1-25P L1-25P L1-23P L1-23P
 • DiffuserScrew 3 – – U30-489SS U30-489SS
#§9 Diffuser Ring 1 N20-34 N20-34 L21-1 L21-1
10 Quick Connect - 1/4” NPT 1 U11-217P U11-217P U11-217P U11-217P
11 Pump Body Assembly 1 N176-43G N176-43GB N176-44G N176-44GA
11A Venturi (1) N32P-66 N32P-75 N32P-64 N32P-65
11B Nozzle (1) N34P-17 N34P-21 J34P-44 J34P-44
12 Pipe Plug - 1/4” NPT Hex Hd. 4 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
13 Base 1 J4-9 J4-9 J104-9C J104-9C
14 Rubber Pad 1 C35-5 C35-5 C35-5 C35-5
15 Tube 3/8” O.D. x 14-1/2” Lg. 1 U37-672P U37-672P U37-677P U37-677P
16 Quick Connect Elbow - 1/4” NPT 1 U11-218P U11-218P U11-218P U11-218P
17 Pressure Switch 1 U217-1225 U217-1225 U217-1225 U217-1225
18 Locknut - 1/2” 1 U36-112ZP U36-112ZP U36-112ZP U36-112ZP
19 Connector 1 L43-5C L43-5C L43-5C L43-5C
