USER MAINTENANCE 1/3
The following information describes how to service and maintain the IntelliFlo® VSD2 pump.
Illustrations apply to WhisperFlo IntelliFlo VSD.
PUMP STRAINER BASKET
The strainer, sometimes referred to as the “Hair and Lint Pot,” is in front of the of the pump.
Inside there is a basket which must be kept clean of leaves and debris at all times. View the
basket through the top see through lid to inspect for leaves and debris.
Regardless of the length of time between filter cleaning, it is most important to visually inspect
the hair and lint pot basket at least once a week. A dirty basket will reduce the efficiency of the
filter and possibly the heater.
WARNING - DO NOT open the strainer basket if pump fails to prime or if pump has been
operating without water in the strainer pot. Pumps operated in these circumstances may
experience a build up of vapor pressure and may contain scalding hot water. Opening the
pump may cause serious personal injury. In order to avoid the possibility of personal injury,
make sure the suction and discharge valves are open and that the strainer pot is cool to
the touch, then open with extreme caution.
!
CAUTION - To prevent damage to the pump and filter and for proper operation of the
system, clean pump strainer and skimmer baskets regularly.
!

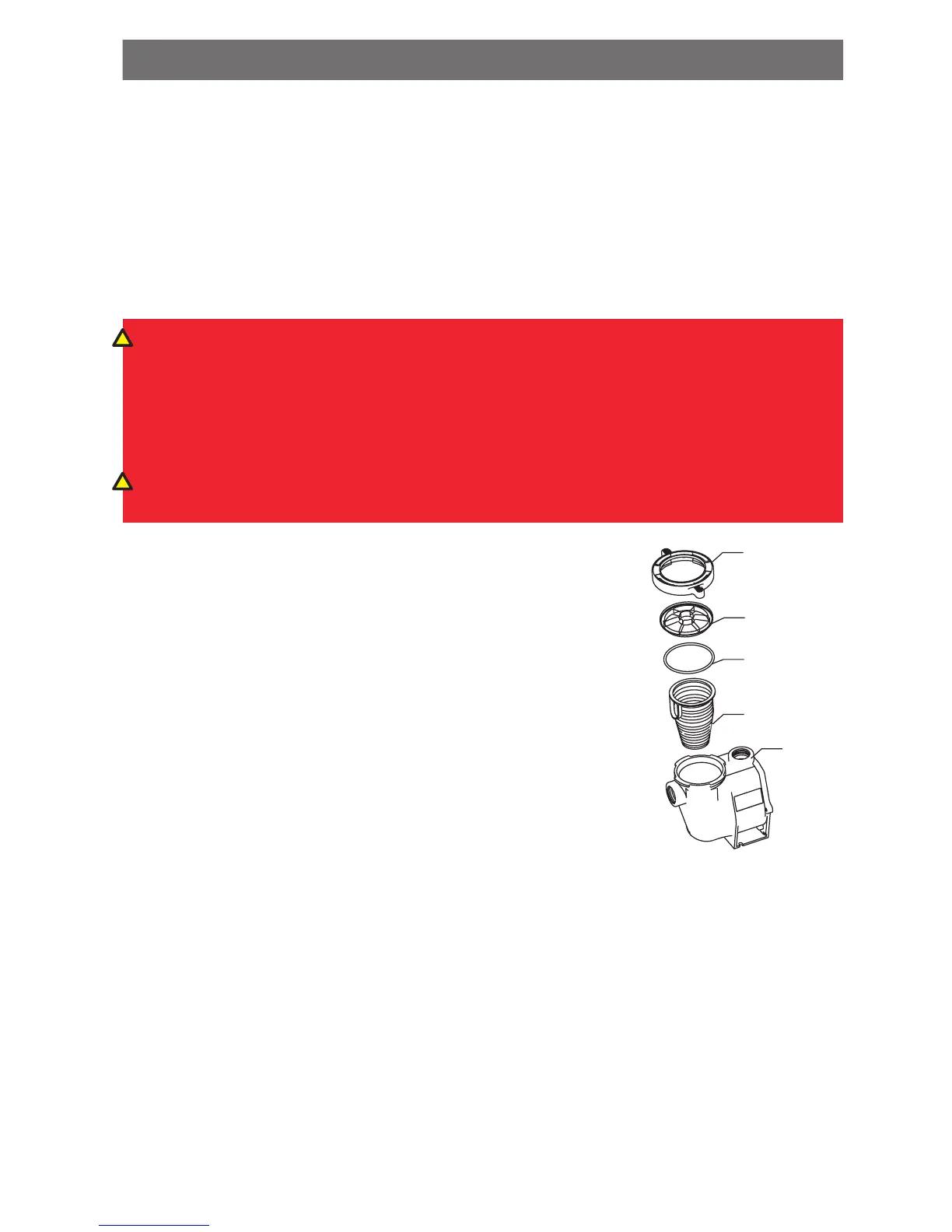

Pump Strainer Basket Service
If the IntelliFlo® pump is installed below the water level of the pool,
close the return and suction lines before opening the hair and lint
pot on the pump.
1. Press the Stop button to stop the pump and switch off the pump
at the circuit breaker.
2. Disconnect the communication cable from the IntelliFlo® pump.
3. Relieve pressure in the system.
4. Turn the locking ring and lid in a counter-clockwise direction
until it stops.
5. Remove the locking ring and lid.
6. Remove the basket and put the debris into the trash and rinse
out the basket. If the basket is cracked, replace the basket.
7. Replace the basket and fill the pump pot and volute with water
up to the inlet port.
8. Clean the cover, o-ring, and sealing surface of the pump pot. Grease the o-ring with Teflon®
or silicone lubricant.
9. Reinstall the lid by placing the locking ring and the lid on the pot.
10. Be sure that the lid o-ring is properly placed. Seat the locking ring and lid then turn clockwise
until the handles are horizontal as shown.
11. Reconnect the communication cable to the pump if required.
12. Switch the power ON at the circuit breaker. Reset the pool time clock to the correct time
To Next Page
