INSTALLATION AND REMOVAL 5/5
SPARE PARTS
Detailed spare pars list can be consulted at www.pentairpooleurope.com or our product
catalog.
DRIVE ASSEMBLY REMOVAL AND INSTALLATION
WARNING - To avoid dangerous or fatal electrical shock hazard, switch OFF power to
motor before working on pump or motor.
!
CAUTION - To avoid electrical hazard, do not remove the four tamper proof bits from the
motor assembly.
!
To remove the IntelliFlo® drive and control panel from the motor assembly:
1. Be sure all electrical breakers and switches are turned off before removing the drive.
2. Disconnect the RS-485 communication cable from the pump.
3. Open the control panel cover.
4. Remove the three Phillips head screws securing the drive to the motor assembly as
shown.
5. Lift up the drive assembly and remove it from the motor adapter located on top of the
motor assembly.
Note: Be careful not to remove the gasket between the drive and motor, it is critical in
keeping moisture out of the drive and motor. Replace the gasket if damaged. Do not
reassemble with a damaged or missing gasket.
To install the IntelliFlo® drive assembly onto the motor assembly:
1. Be sure all electrical breakers and switches are turned off before installing the drive.
2. Be sure that the gasket between the drive and motor is in place. It is critical in keeping
moisture out of the drive and motor. Replace the gasket if damaged. Do not reassemble
with a damaged or missing gasket.
3. Verify that the three (3) orange motor post caps are in position before placing the drive on
the motor assembly.
4. Align the drive assembly with the motor adapter and seat the drive on the motor assembly.
5. Secure and tighten the drive assembly with the three Phillips head screws.

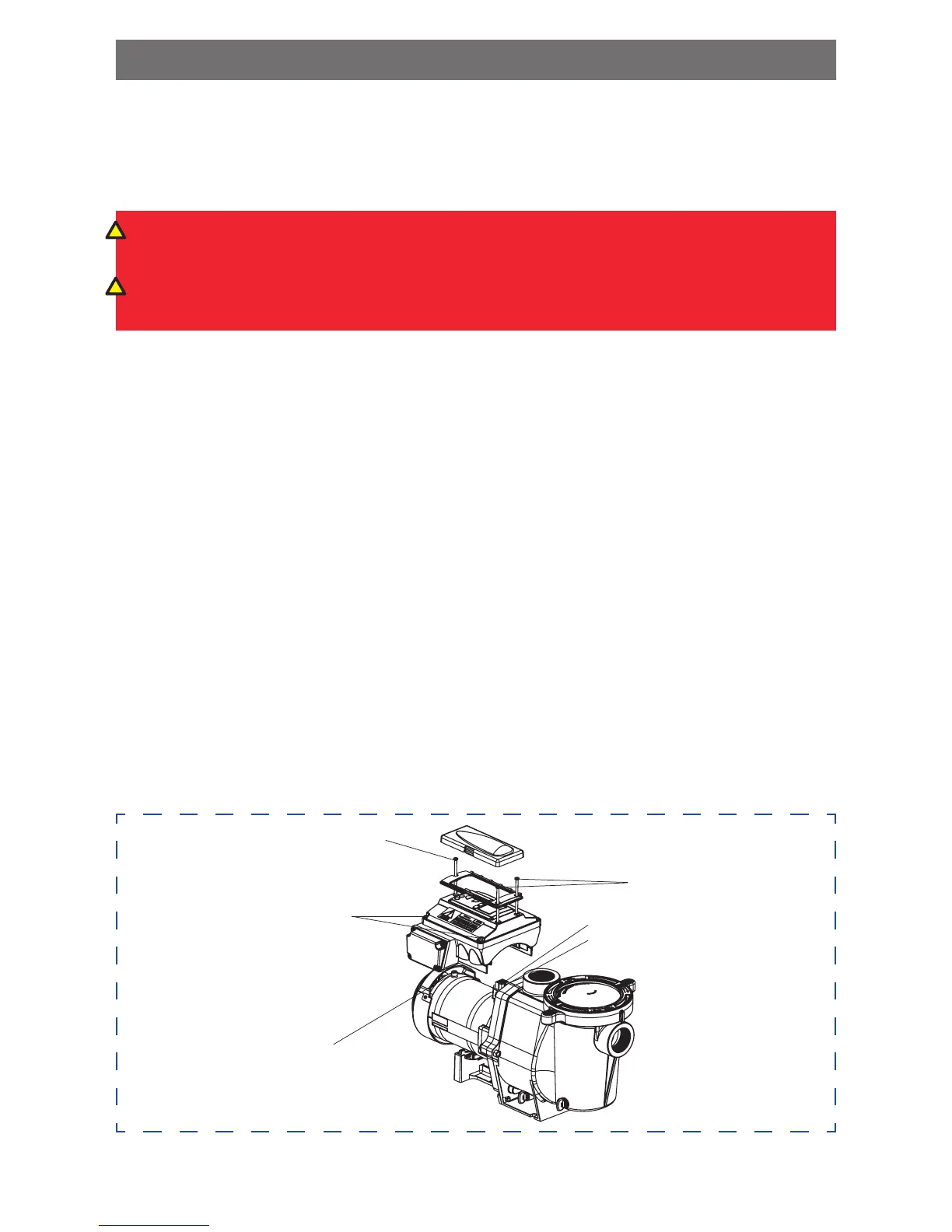

Phillips Head Screws
Phillips Head Screw
Adapter Connector
Gasket
Orange Motor Post
Caps (QTY. 3)
Note: Do not remove
these screws
39
To Next Page
