INTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s Guide
6
INTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s Guide
Control Panel #1-8
12:15p
750 RPM
T 0.00 150 WATTS
Running Speed 1
SaveBack
Select
Menu
1
5
2
6
8
4
3
7
1 2 3
4
Quick
Clean
Time
Out
12:15p
750 RPM
T 0.00 150 WATTS
Running Speed 1
SaveBack
Select
Menu
1 2 3
4
Quick
Clean
Time
Out
15
Line 1
Line 2
Line 3
Line 4
9
13
12
10
11
14
Save?

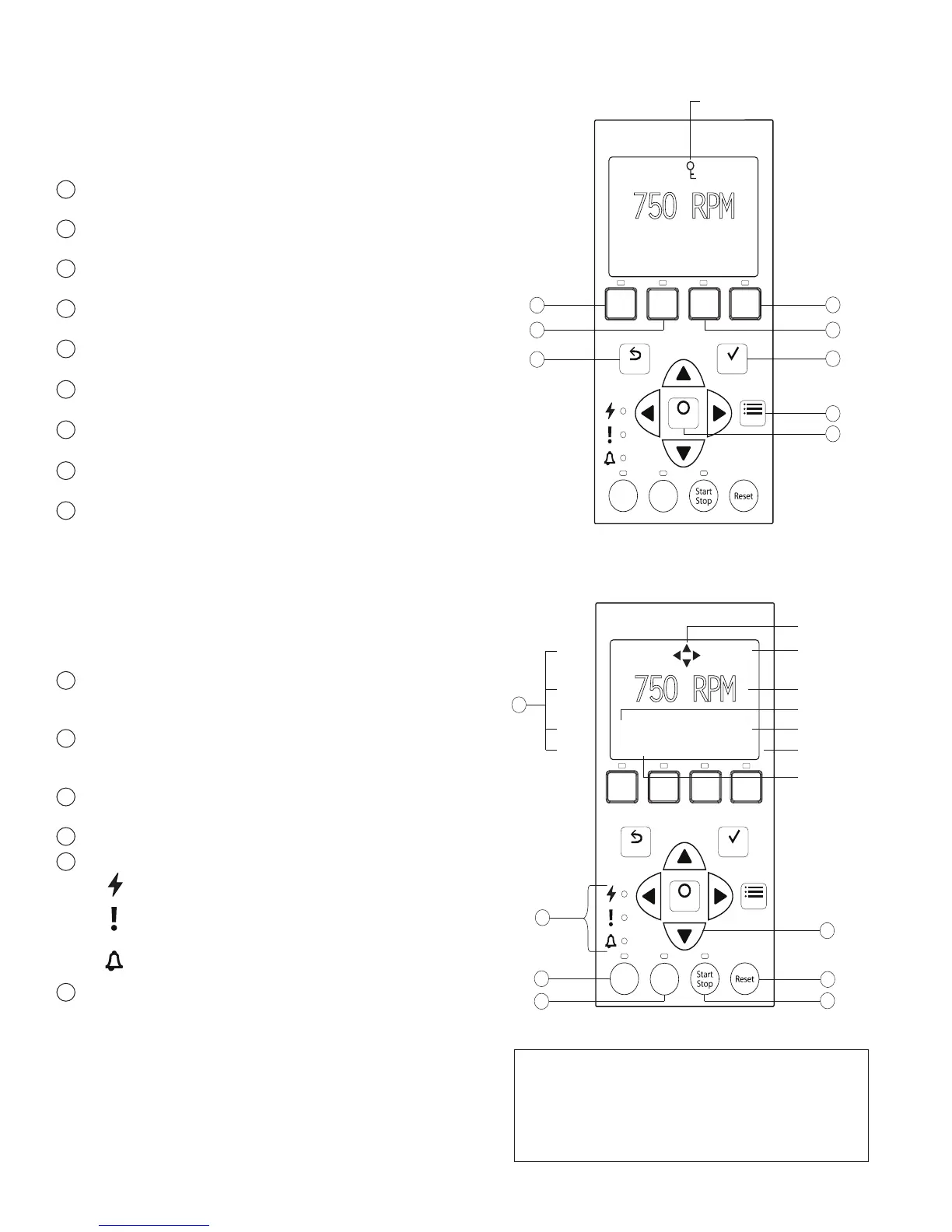

Control Panel #9-15
Using the Operator Control Panel
Use the operator control panel to start and stop the IntelliFlo
®
VSF
Variable Speed and Flow Pump, set, and change programs, and
access pump features and settings.
Button 1: Press to select Program 1 (750 RPM). LED on
indicates Program 1 is active.
Button 2: Press to select Program 2 (1500 RPM). LED on
indicates Program 2 is active.
Button 3: Press to select Program 3 (2350 RPM). LED on
indicates Program 3 is active.
Button 4: Press to select Program 4 (3110 RPM). LED on
indicates Program 4 is active.
Back: Goes one step back in menu; exits without saving
current setting.
Save: Saves current menu item setting. When a parameter
has been adjusted the "Save?" icon will be displayed.
Menu: Accesses the menu items when and if the pump is
stopped.
Select: Press to select the currently displayed option on the
screen.
Arrow buttons:
• Up arrow: Move one level up in the menu or increase
a digit when editing a setting.
• Down arrow: Move one level down in the menu or
decrease a digit when editing a setting.
• Left arrow: Move cursor left one digit when editing a
setting.
• Right arrow: Move cursor right one digit when editing
a setting.
Quick Clean: Pump increases to a higher RPM (for
vacuuming, cleaning, adding chemicals, etc.). LED light is
on when active.
Time Out: Allow the pump to remain in a stopped state for
a set period of time before resuming normal operation. LED
is on when active.
Start/Stop button: To start or stop the pump. When LED is
on, the pump is running or in a mode to start automatically.
Reset button: Reset alarm or alert.
LEDs:
On: Green light when pump is powered on.
Warning: On if warning condition is present. See
“Alerts and Warnings” on page 25.
Alarm: Red LED on if alarm condition occurs. See
“Alerts and Warnings” on page 25.
Control Panel LCD Screen:
• Line 1: Key icon indicates password protection mode is
active. If password protect is not enabled, no key icon is
displayed. Also shows current time of day. Active cursors
display when arrow key input is available.
• Line 2: Displays current pump speed/flow (RPM/GPM).
• Line 3: Countdown time and watts
• Line 4: Current pump status and current feature. "Save?"
will display on this line when a parameter adjustment
can be saved.
Controls and LEDs on Keypad
5
1
2
3
4
6
7
8
9
10
11
12
13
14
15
Note: Always close the keypad cover after using
the keypad.
Note: Using screwdrivers or pens to program the
pump will damage the keypad overlay. Use your
fingers only when programming the pump.
Key Lockout Icon
Current Speed/Flow
Countdown Time
"Save?" Icon
Current Time
Current Power Usage
Active Cursors
Current Running
Feature
To Next Page
