Pentair INTELLIFLO VSF Installation And User Guide

INTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s Guide
28
INTELLIFLO
®
VSF Variable Speed and Flow Pump Installation and User’s Guide

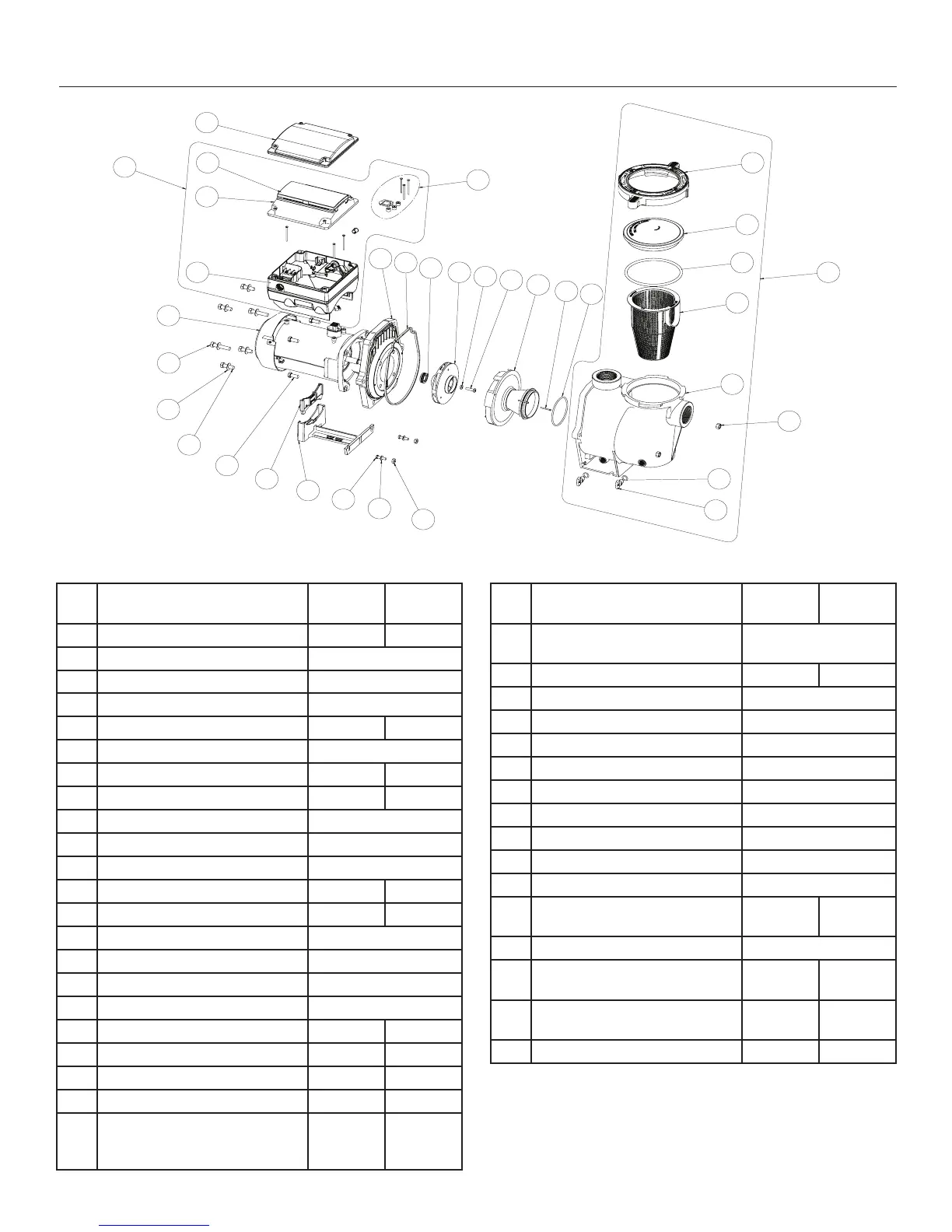

REPLACEMENT PARTS
1
2
3
4
5
33
6
7
9
10
11
12
13
14
16
15
17
20
21
24
25
26
27
29
30
31
32
28
18
19
22
23
34
8
IntelliFlo
®
VSF Variable Speed and Flow Pump Replacement Parts
Item
No.
Description
Almond
Part #
Black
Part #
1 Clamp, Cam and Ramp 357199 357150
2 See Through Lid 357151
3 Lid O-Ring 350013
4 Stainer Basket 070387
5 Volute WF 350015 357157
6 O-Ring 112 for Drain Plug (Qty2) 192115
7 Drain Plug WF (Qty2) 071131 357161
8 Volute Kit (Includes Item #1-7) 357243 357244
9 Nut, 1/4-20 Hex. SS (Qty2) 071406
10 Washer, Flat 1/4" ID x 5/8" OD (Qty2) 072183
11 Screw, 1/4-20 x 1" Hex Cap SS (Qty2) 071657
12 Foot WF 070927 357159
13 Foot Insert WFE, Pump Motor Support 070929 357160
14 Bolt, Hex Head 3/8-16 x .875" (Qty4) 070429
15 Bolt, Hex Head 3/8-16 x 1.25" (Qty4) 070430
16 Washer, Flat 3/8" ID x 7/8" OD (Qty6) 072184
17 Bolt, Hex Head 3/8-16 x 2" (Qty2) 070431
18 Motor, 3.2kW 10 Pole 350305S 350306S
19 Drive, Variable Speed 356880Z 356894Z
20 Drive Cover Kit (Includes Item #21) 357527Z 358527Z
21 Keypad Cover 400100 401100
22
Keypad Relocation Kit (Includes
Keypad Relocation Cable and Blank
Drive Cover)
356904Z 356905Z
Item
No.
Description
Almond
Part #
Black
Part #
23
Drive Hardware Kit (Includes Drive
Screws, Drive Gasket and Screw Caps)
355685
24 Seal Plate 074564 357158
25 Seal Plate Gasket 357100
26 Mechanical Seal 071734S
27 Impeller 073131
28 Rubber Washer, Impeller Set Screw 075713
29 Impeller Set Screw, 1/4-20 LH Thread 071652
30 Diffuser 072928
31 Diffuser Set Screw, 4-40 x 1-1/8 (Qty2) 071660
32 Diffuser O-Ring 355227
33 Nut, 3/8-16 Brass, Nickel Plated (Qty2) 071403
34
Drive Kit Assembly (Includes
Item #19-21 & 23)
356922Z 355868Z
- 50 Ft. Communication Cable 350122
-
Seal Plate Kit w/ Mechanical Seal
(Includes Item #24-26)
350202 350203
-
Union Kit (Contains 2 Complete Unions
for 1 Pump - Not Included w/ Pump)
357603
Not
Available
- Seal Plate Kit, Ozone/Salt Resistant 350199 350198
(-) Not Shown
