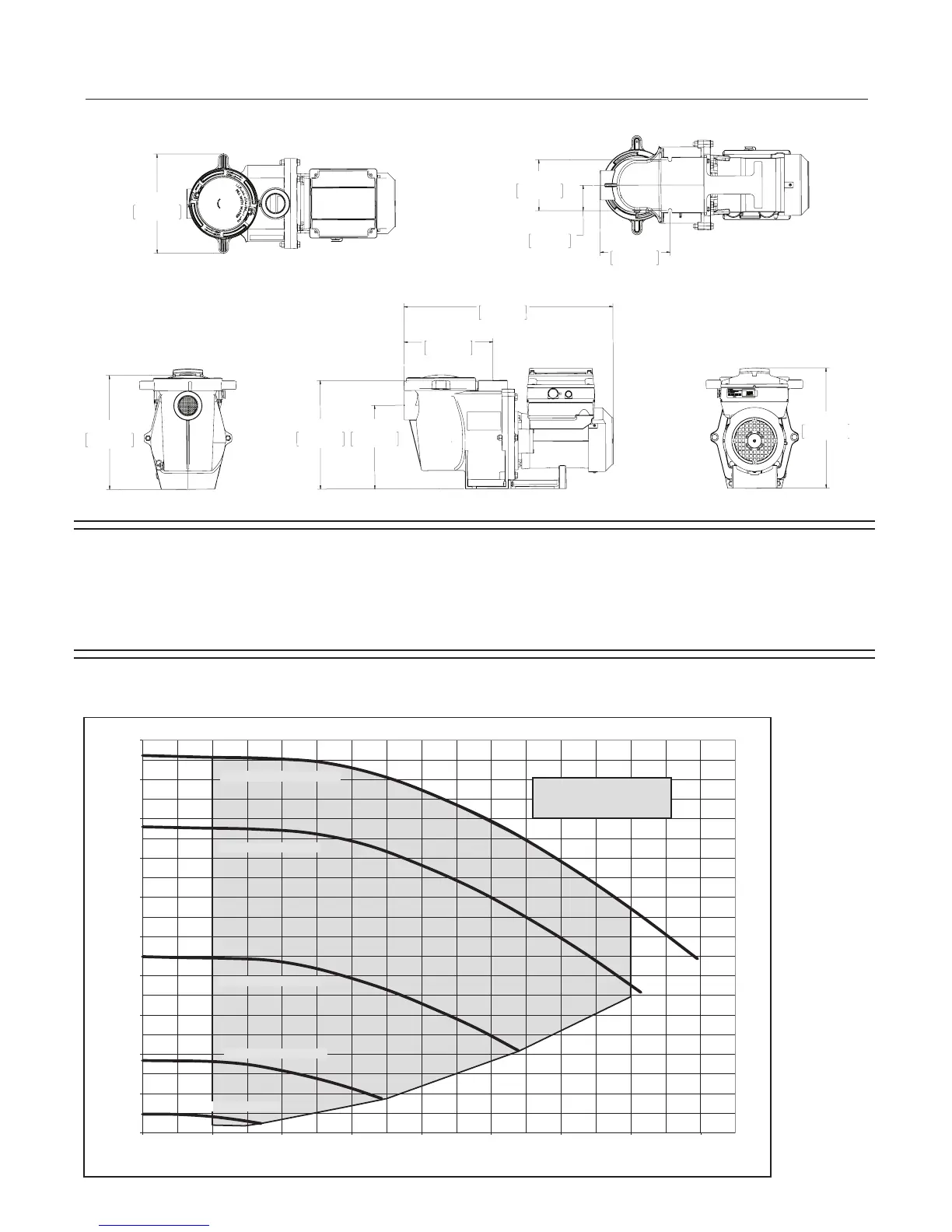

TECHNICAL DATA
Pump Dimensions
23.4in
594mm
11.8in
301mm
9.9in
253mm
9.1in
232mm
10.8in
275mm
12.4in
316mm
13.1in
333mm
7.8in
199mm
2.8in
71mm
5.6in
142mm
Electrical Specifications
Circuit Protection: Two-pole 20 AMP device at the Electrical Panel.
Input: 230 VAC, 50/60 Hz, 3200 Watts Maximum, 1 phase
Pump Performance Curves

Pentair INTELLIFLO VSF Specifications

General

Brand	Pentair
Model	INTELLIFLO VSF
Category	Water Pump
Language	English
