Pentair STA-RITE DS3 Series User Manual

12
S536 (11-25-19)

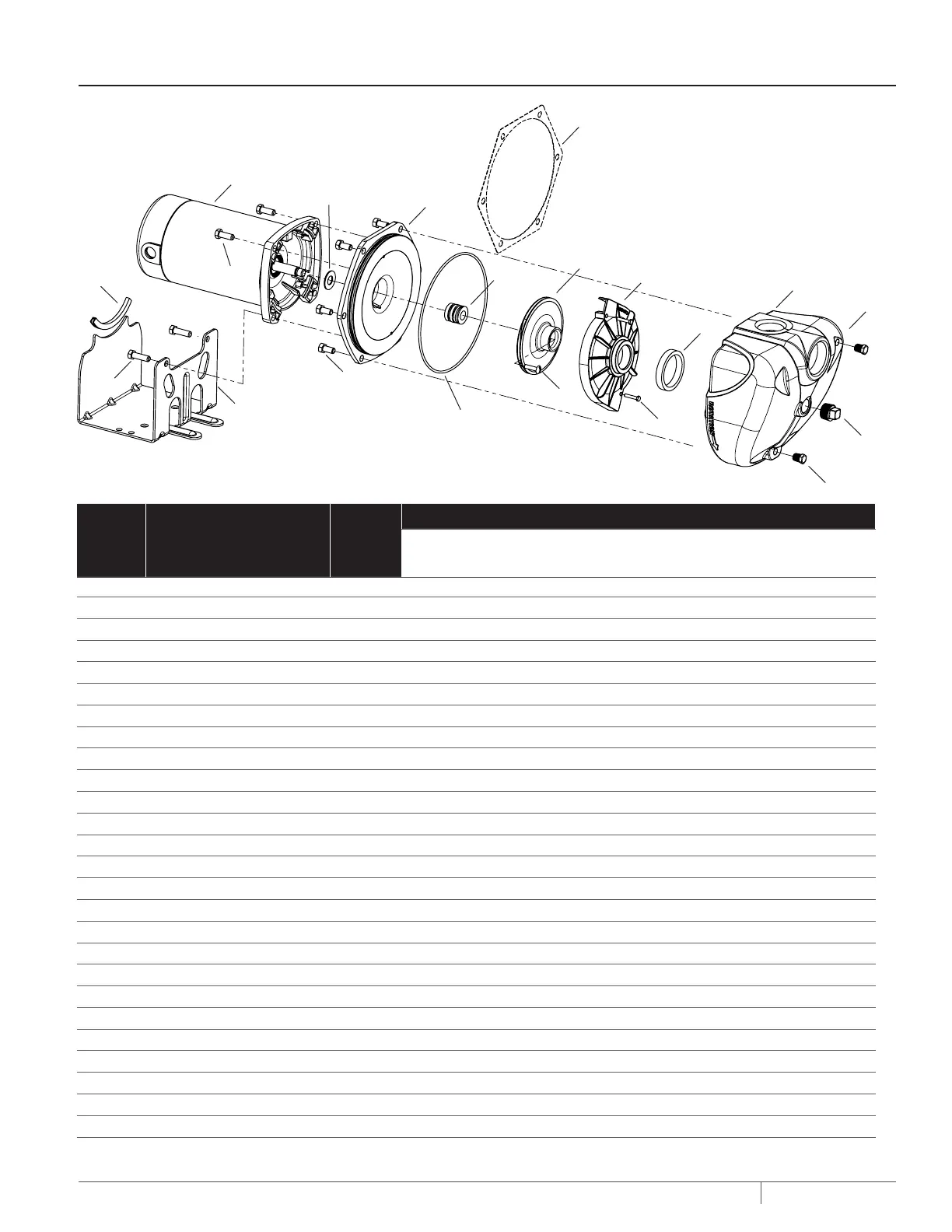

PARTS LIST
• Not illustrated.
* Model DS3HHG3-01 uses Base C4-82.
10
9
8
7
4
3
1
2
3
6
5
10
15
11
14
12
13
7A
6A
4A
16
Key No. Part Description Qty.
Model Number
DS3HE-01
DS3HE3-01
1 HP
DS3HF-01
DS3HF3-01
1-1/2 HP
DS3HG-01
DS3HG3-01
2 HP
DS3HHG-01
DS3HHG3-01
2-1/2 HP
1 Motor, 115/230V, 1 Phase 1 J218-596PKG J218-601PKG J218-883APKG J218-628A
1 Motor, 230/460V, 3 Phase 1 AP100EL AP100FL AP100GL AP100G5L
2 Water Slinger 1 17351-000 17351-0009 17351-0009 17351-0009
3 Seal Plate 1 C3-155-SR C3-155-SR C3-117 C3-117
4 Gasket - Seal Plate 1 C20-86N C20-86N C20-87N C20-87N
4A O-Ring 1 25276 — 34516 —
5 Shaft Seal 1 U109-6B U109-6B U109-6B U109-6B
6 Impeller (1 Phase) 1 C105-92PKB C105-92PC C105-214PDA C105-214PA
6 Impeller (3 Phase) 1 C105-92PKBA C105-92PCA C105-214PDA C105-214PA
6A Impeller Screw (1 Phase 1 — — C30-14SS C30-14SS
6A Impeller Screw (3 Phase) 1 C30-14SS C30-14SS C30-14SS C30-14SS
7 Diffuser 1 C101-276P C101-276P C101-182 C101-182
7A Screw 10-24 x1” Lg Hex Head 2 U30-696SS U30-696SS — —
7A Machine screw 8-32x7/8” Lg. 2 — — U30-53SS U30-53SS
8 Diffuser Ring 1 C21-10 C21-10 C21-2 C21-2
9 Pump Body Assembly 1 C76-67E C76-67E C76-68E C76-68E
10 Plug 1/4” NPT Hex Head 2 U78-941ZPV U78-941ZPV U78-941ZPV U78-941ZPV
11 Base 1 C4-82 C4-82 C4-82 C4-82A*
12 3/8-16x1-1/4” Lower Capscrew 1 U30-75ZP U30-75ZP U30-75ZP U30-75ZP
13 3/8-16x1” Upper Capscrew 1 U30-74ZP U30-74ZP U30-74ZP U30-99SS
14 Motor Pad 1 C35-5 C35-5 C35-5 C35-5
15 Capscrew 3/8-16x3/4” Lg 6 U30-72ZP U30-72ZP — —
15 Capscrew 5/16-18x3/4” Lg. 8 — — U30-60ZP U30-60ZP
16 Pipe Plug 3/4” NPT - Sq. Hd. 1 U78-60ZPS U78-60ZPS U78-60ZPS U78-60ZPS
• Lockwasher 3/8” 2 U43-12ZP U43-12ZP U43-12ZP U43-12ZP
• Nut, 3/16”-18 Hex Head 2 U36-37ZP U36-37ZP U36-37ZP U36-37ZP
