Repair Parts 12
Ref. Part Description Qty. DSS4HG DSS4HG3T DSS3HG DSS3HG3T
1 Motor 1 B85740 B86076 B86075 B86077
2 SocketHeadCapscrew 4 U30-104ZP
3 Slinger 1 17351-0009
4 Bracket 1 M13784
5 ImpellerRepairKit(IncludesRef.Nos.6–8and10–14) 1 B85604 B86078
6 Shaft Seal 1 U9-469
7 Spacer 1 121P1710
8 O-Ring 2 111P2700
9 Sleeve 1 251A4310
10 Diffuser 4 101P6290
11 Impeller 3 or 4 101P6210
11A Spacer (3 Stg pump only) 1 M15780
12 Washer, Flat 1 121P1760
13 Washer, Toothed 5 M13975
14 ImpellerNut 1 U36-204SSW
15 PumpBody(Suction) 1 751S4800
16 Washer 2 121P0810
17 Pipe Plug 2 171P1180
18 Capscrew 4 121P1690
19 RecirculationValveComplete(IncludesO-Ring) 1 ZBR05820
1
2
3
10
11
11A
10
11
10
11
10
11
12
13
13
14
15
18
16
17
19
16
17
4
5
5
6
7
8
9
8
4311 0212

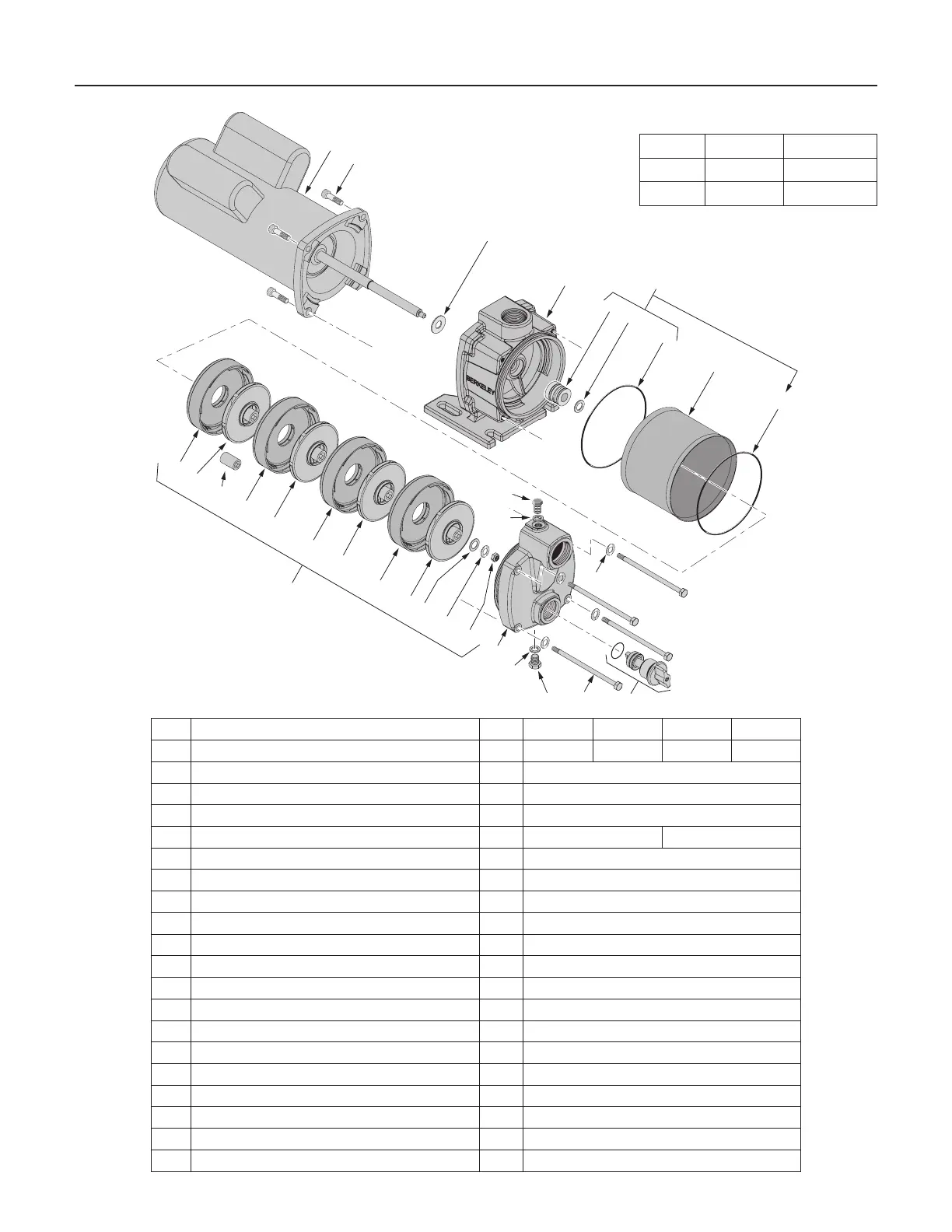

Exploded View
1 ø 3 ø
3 Stage DSS3HG DSS3HG3T
4 Stage DSS4HG DSS4HG3T
