Pepperl+Fuchs HD2 Series User Manual

2014-10
12
Compact Fieldbus Power Hub,Generic Interface
Specification

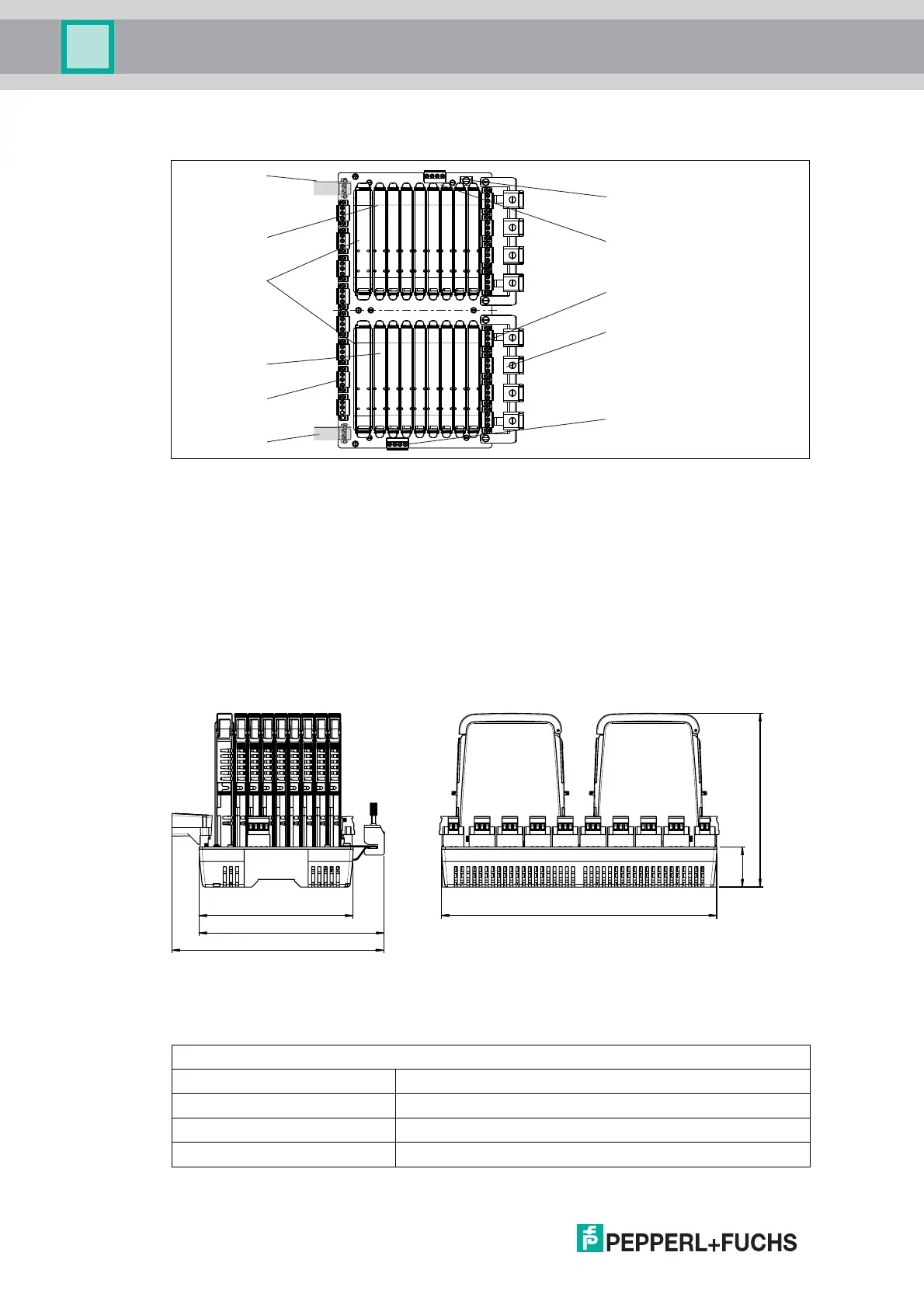

2.3 Component Identity
2.4 Dimensional Drawings
All dimensions in millimeters (inches) and without tolerance indication.
2.5 Technical Data
System Specification
1 Connections for host
2 Power supply modules
3 Diagnostic modules
4 Connections for bulk power supply with mounted connector cover for Ex ic installations
5 Screen/ground connection clamp
6 Connections for alarm volt-free contact and diagnostic bus
7 Connections for fieldbus trunk
8 Screening/earthing kit for trunk cable shields, optional accessory
6
6
7
5
2
2
3
1
4
8
4
169 mm (6.6")
268 mm (10.5")
38 mm
(1.5")
150 mm (5.9")
180 mm (7.1")
195 mm (7.7")
Ambient conditions
Ambient temperature -40 ... 70 °C (-40 ... 158 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Relative humidity < 95 % non-condensing
Shock resistance 15 g 11 ms
