10 - 2
Care and maintenance
Switch the machine off!
Danger of injury due to unintentional starting of the machine!
Always check the oil level before starting operation.
The oil level must be at least 10 mm.
● Top up the oil through hole 1 in the oil reservoir when required.
● Before commissioning the machine, and after longer periods out of
operation, apply 1 to 2 drops of oil in hole 2 of the hook gib.
Only use oil with a medium viscosity of 22.0 mm²/s at 40° C and a density of
0.865 g/cm³ at 15 C.
We recommend PFAFF sewing mahine oil, No. 280-1-120 144.
58.010

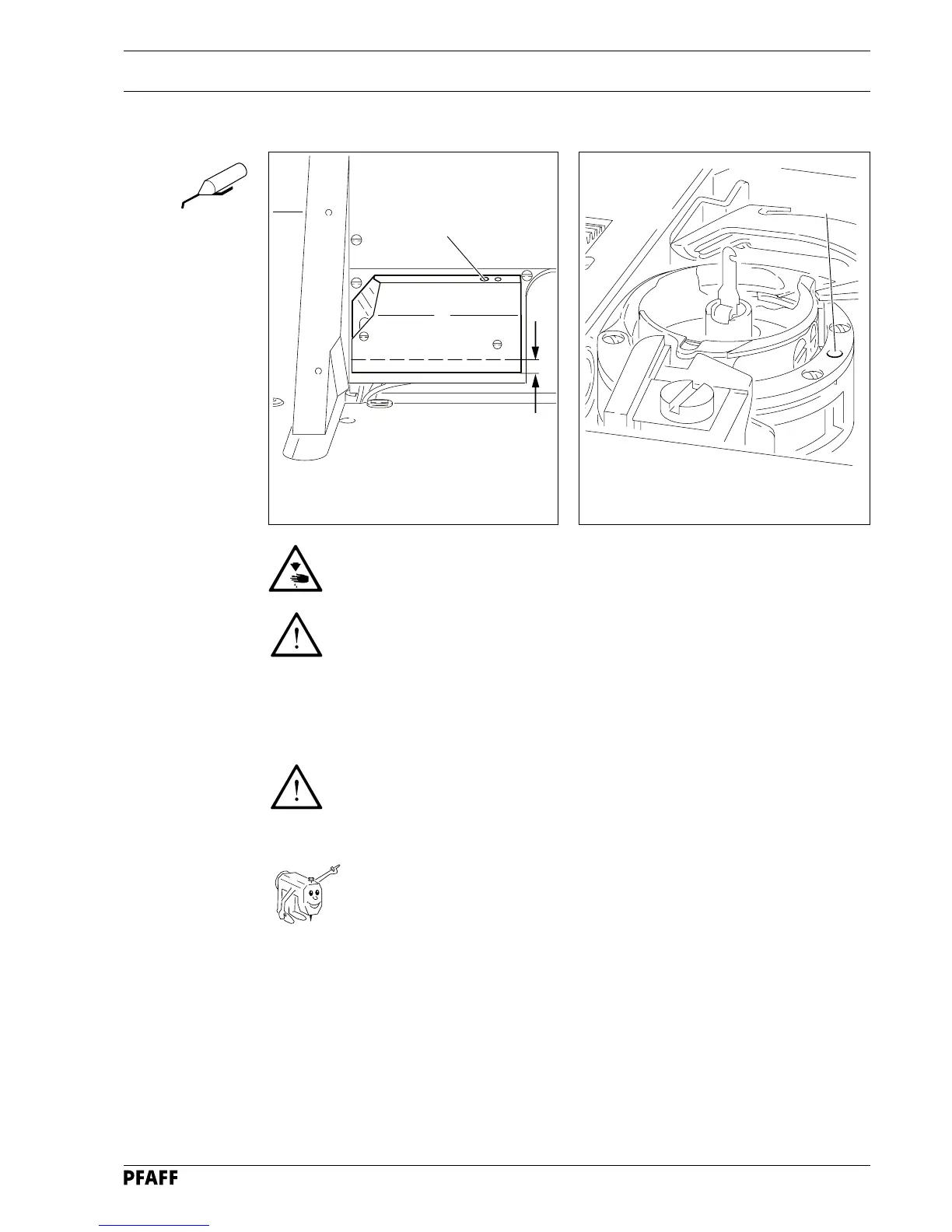

Fig. 10 - 03
2
Fig. 10 - 02
10 mm
1
10.02 Oiling the hook
