11 - 5
Adjustment

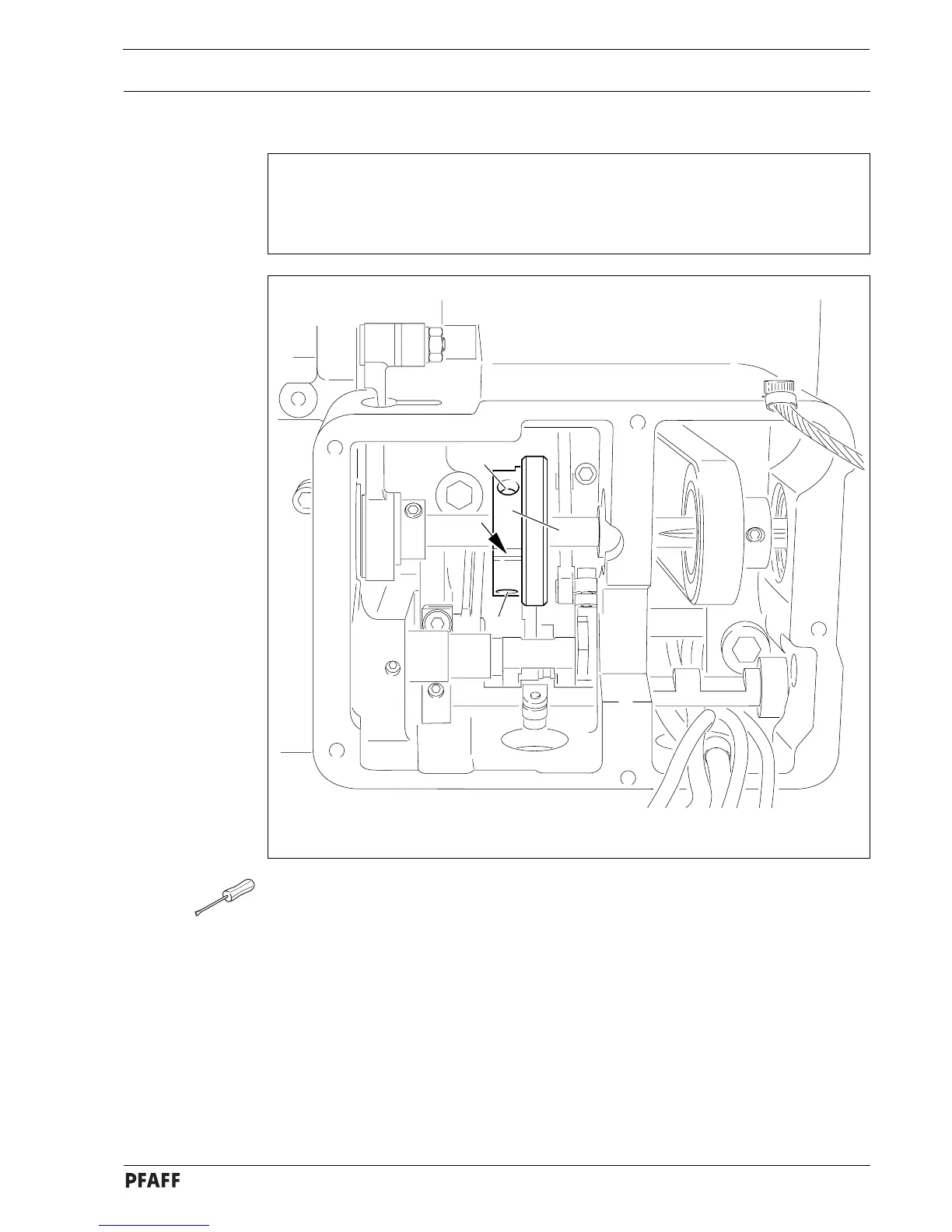

Fig. 11 - 04
1
2
2
11.
04.04
Feeding motion of the unison feed
Requirement
At the longest stitch-length setting and at needle bar b.d.c. neither the top- and bottom
feed dogs nor the needle bar must make any feeding motion when the reverse-feed lever
is pressed.
●
Adjust eccentric
1
(screws
2
) according to
Requirement
. Make sure that cut-out (see
arrow) is visible.
42
44
