Bobbin winding

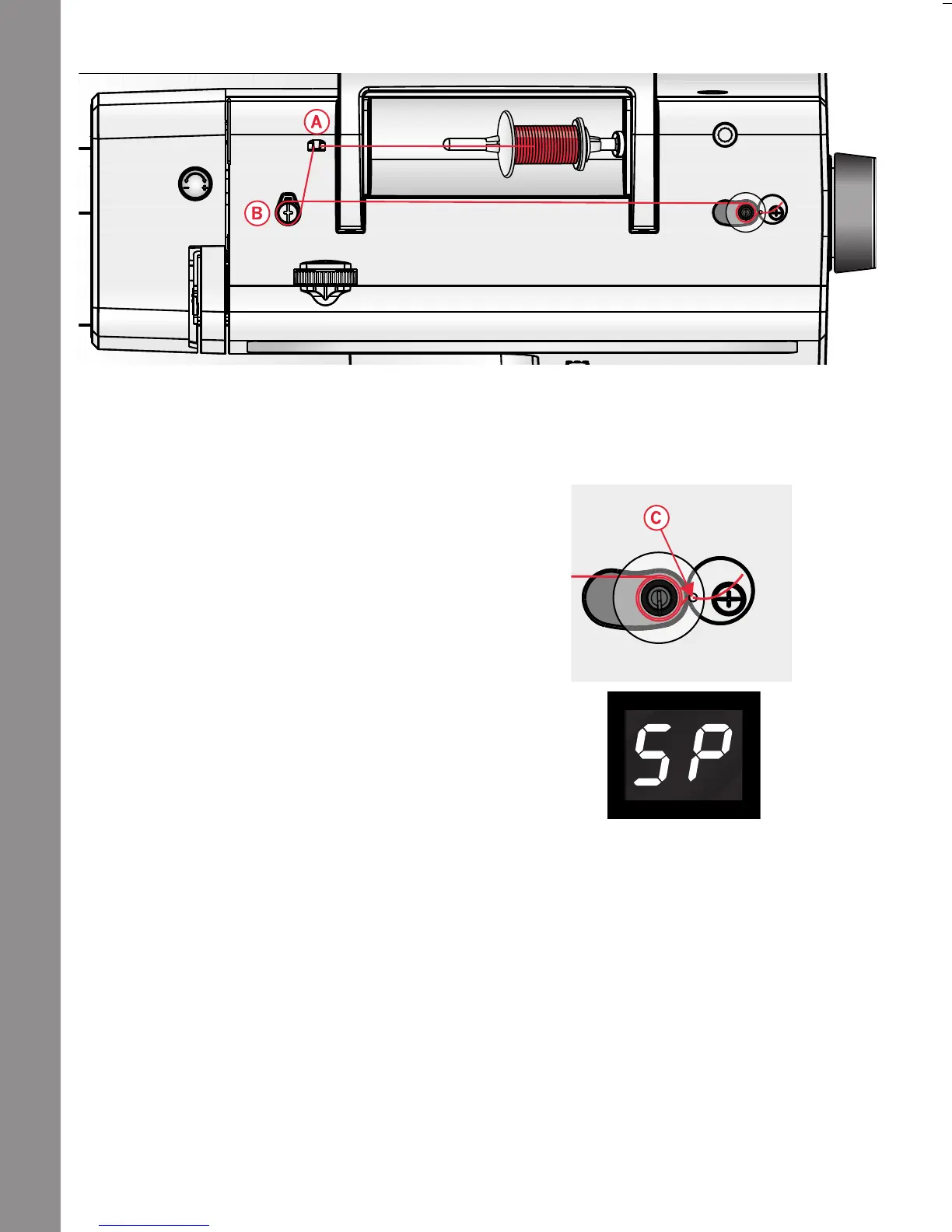

1. Place the thread spool on the spool pin. Slide a spool
cap tightly against the spool.
2. Place the thread into the thread guide (A) from front
to back. Pull the thread clockwise around the bobbin
winder tension disc (B).
3. Thread through the hole in the bobbin (C) from the
inside to the outside.
4. Place the bobbin on the bobbin spindle.
5. Push the bobbin spindle to the right to activate
bobbin winding. The letters "SP" flash on the LED
display.
6. Press the foot control to wind the bobbin. Once the
bobbin begins to wind, cut the excess thread.
7. When the bobbin is full, bobbin winding will slow
down. Release the foot control and push the bobbin
spindle to the left. Remove the bobbin and cut the
thread.
16
