Safety Instructions, Warnings, and Notes
EN 3LC4.3HE AA 2.
AV1 Mini Jack: Video 1fH CVBS - In, Audio - In
1 - Audio R 0.5 V
RMS
/ 10 kohm oj
2 - Ground CVBS Gnd oj
3 - Video CVBS 1 V
PP
/ 75 ohm oj
4 - Audio L 0.5 V
RMS
/ 10 kohm oj
Mini Jack: Speaker - Out
- Loudspeaker 8 ohm ok
1.2.2 Rear I/O connections
Rear connections are the same as for the LC4.3E.
1.3 Chassis Overview

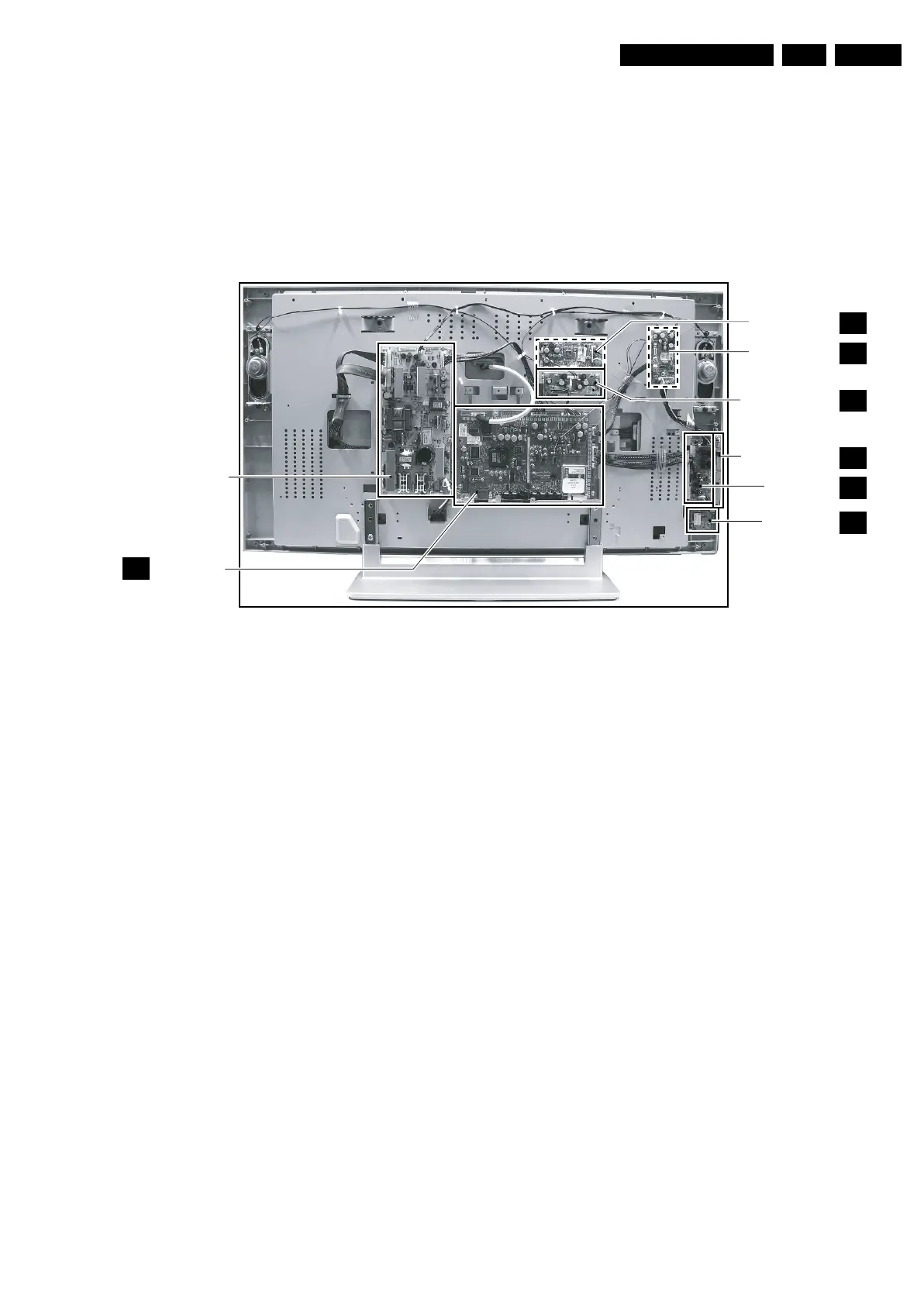

Figure 1-2 Chassis overview (both models)
2. Safety Instructions, Warnings, and Notes
See the relevant chassis manual (order code on front page).
3. Directions for Use
See the relevant chassis manual (order code on front page).
B
SMALL SIGNAL
BOARD
F_15800_003.eps
131205
D
SIDE I/O PANEL
E
J
LED & IR PANEL
C
AUDIO AMPL. PANEL
HC
iBOARD PANEL 26”
iBOARD PANEL 32”
(if present)
(if present)
HC
POWER SUPPLY
PANEL
KEYBOARD CONTOL
PANEL
