Mechanical Instructions
EN 19QFU1.1E LA 4.
2012-Sep-14
back to
div. table

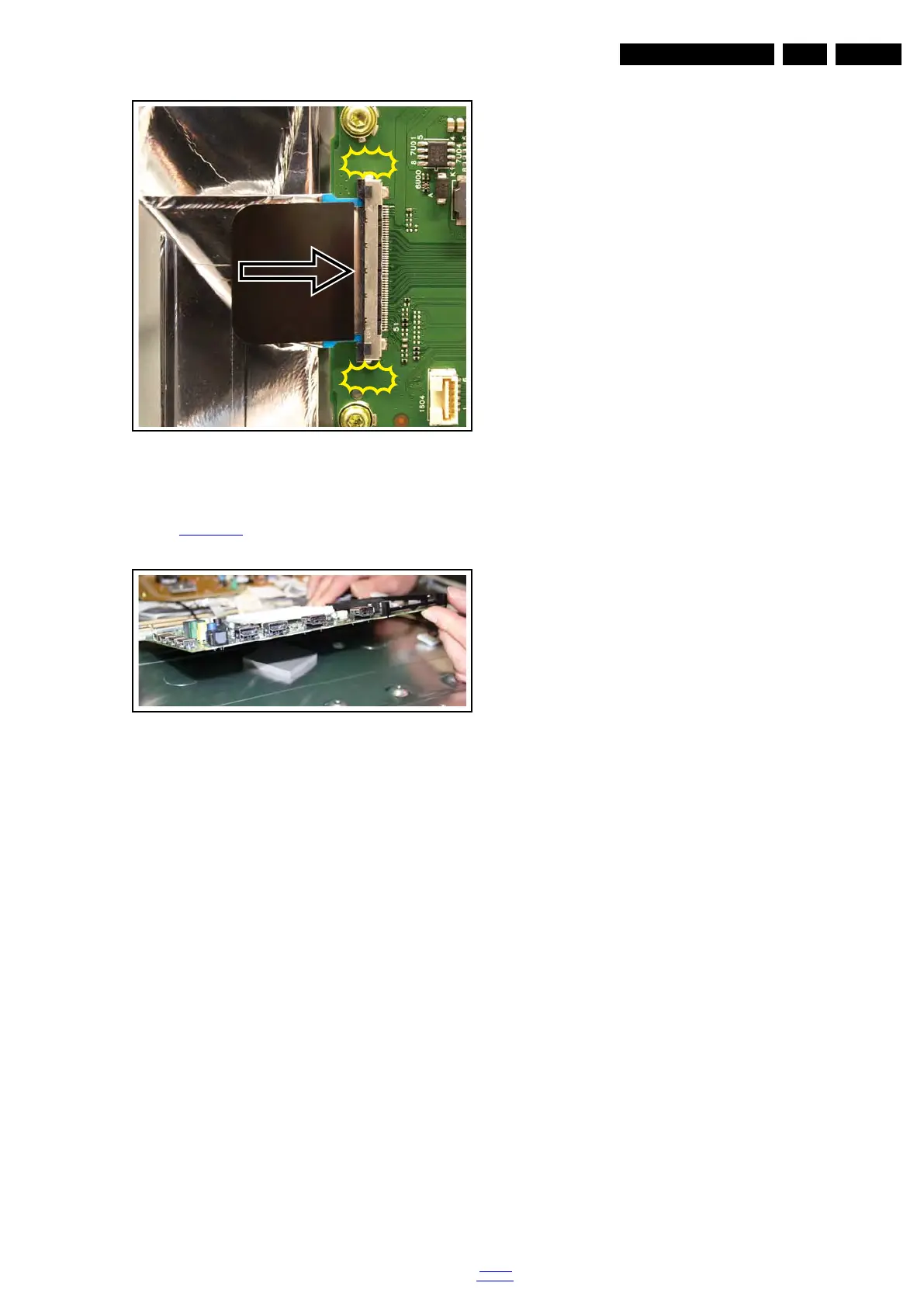

Figure 4-21 SSB LVDS connector catches (optional) -2-
Underneath the SSB an adhesive heat path is located.
Refer to Figure 4-22
for details.
After board swap, it should be located at the correct position.
Figure 4-22 SSB adhesive heath path
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original position.
• Pay special attention not to damage the EMC foams in the
set. Ensure that EMC foams are mounted correctly.
19222_001_120626.eps
120626
Click!
LVDS flat foil
Click!
19210_089_120509.eps
120509
