Philips 55PFL8007T Service Manual

EN 222QFU1.1E LA 11.
Styling Sheets
2012-Sep-14
back to
div. table

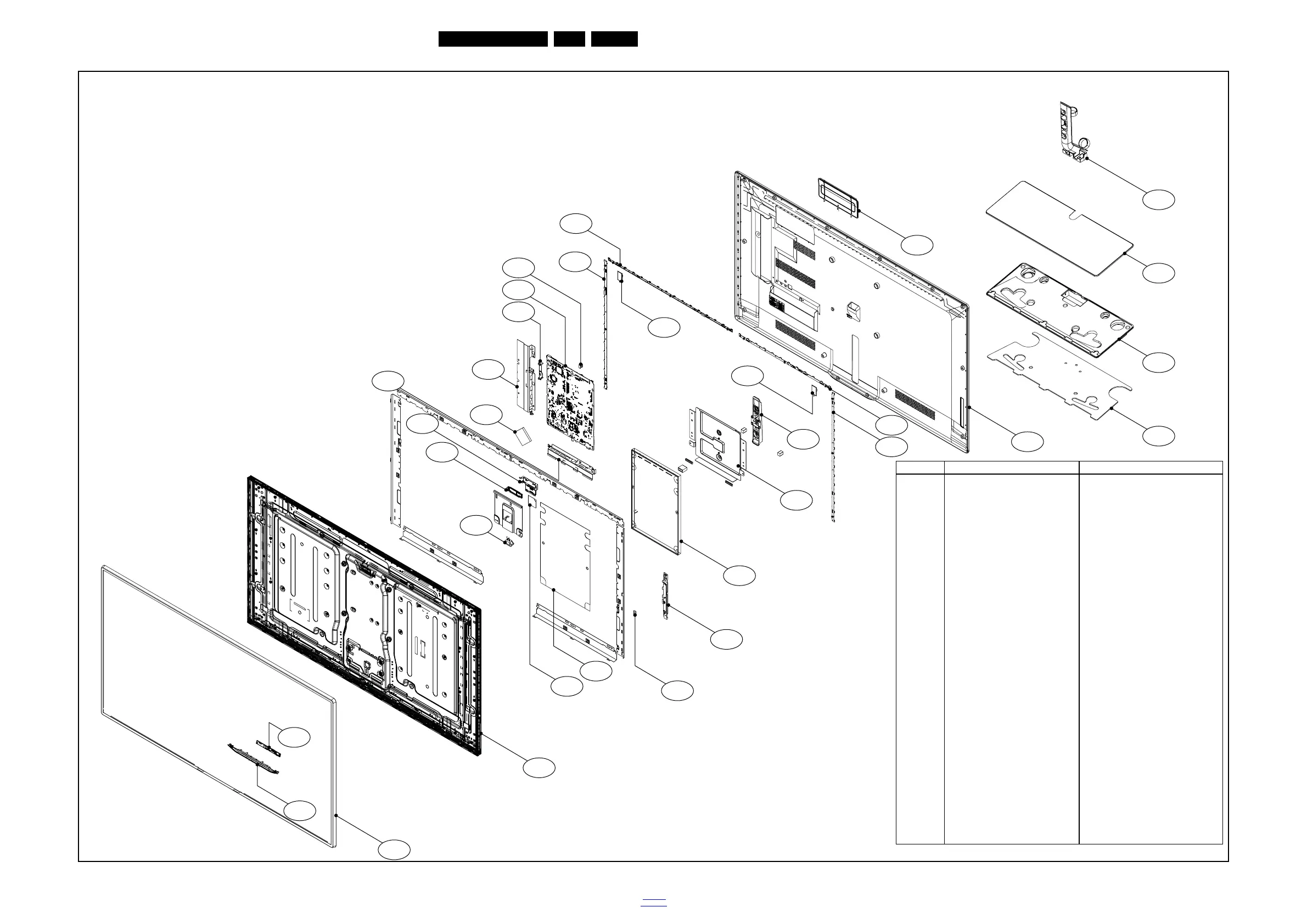

11.5 8000 series 46"
19210_094_120514.eps
120514
8000 series 46"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
Pos No. Description Remarks
0007 Deco front
0013 Back cover
0015 Swivel back piece
0016 Ambilight door
0032 Leading edge assembly
0034 Wifi bracket
0109 Mains inlet
0112 Stand interface
0159 PCMCIA cardguide
0160 Side I/O bracket
0162 Bottom I/O bracket
0202 Dolby I/O label Not displayed
0270 3D gogles Not displayed
0416 Stand coverplate screw Not displayed
0450 Thermal foam
0453 V0 sheet psu
0455 Ther
mal foam
0456 Spring grounding
0460 V0 sheet mains inlet
1004 LCD display
1010 Sensor board
1012 Keyboard control panel
1040 Wifi antenne
1041 Wifi antenne
1043 Wifi module USB
1050 PSU
1085 Remote control Not displayed
1090 Cinch connection Not displayed
1092 3 Cinch extention cable Not displayed
1111 SSB
1127 Speaker
1129 Stand coverplate
1130 Stand nec
k
1131 Base plate
1131 Smallware box Not displayed
1135 Skype assembly Not displayed
1163 Ambilight left
1164 Ambilight right
1170 Ambilight left
1172 Ambilight right
0032
1040
0162
1041
0453
0455
0460
1010
1111
0159
1170
0456
0007
1004
1012
0109
0450
0160
1163
1043
0034
1050
0013
0015
0112
1164
1172
0016
1131
1127
1129
1130
