Philips 55PFL8007T Service Manual

Service Modes, Error Codes, and Fault Finding
EN 26 QFU1.1E LA5.
2012-Sep-14
back to
div. table

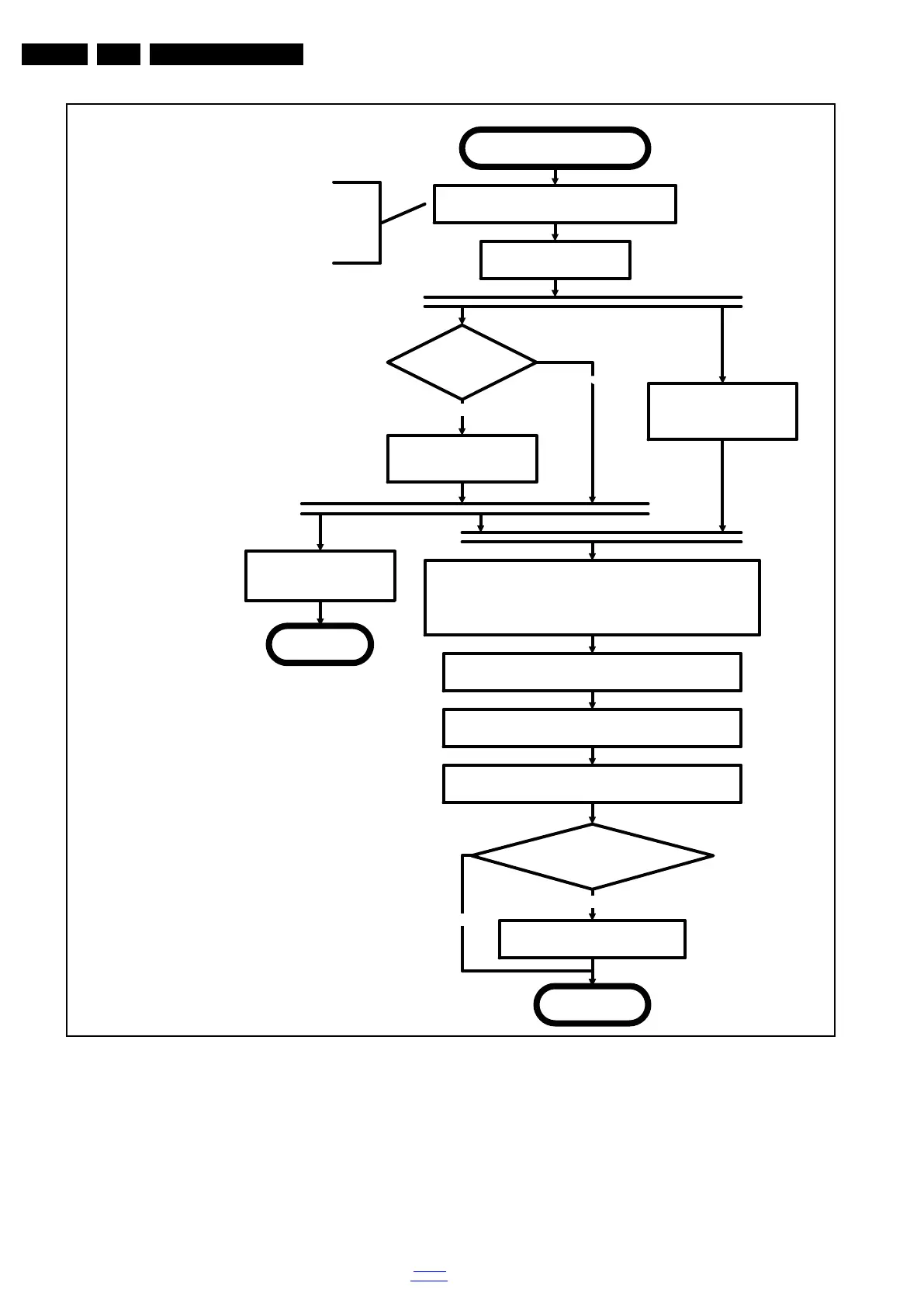

Figure 5-7 “Semi Stand-by” to “Active” flowchart
19210_079_120504.eps
120504
Active
Semi Standby
Initialize audio and video
processing IC's and functions
according needed use case.
Assert RGB video blanking
and audio mute
Wait until previous on-state is left more than2
secondsago. (to prevent LCD display problems)
The assumption here is that a fast toggle (<2s) can
only happen during ON->SEMI ->ON. In these states,
the AVC is still active and can provide the 2s delay. A
transition ON->SEMI->STB Y->SEMI->ON cannot be
made in less than 2s, because the standby state will
be maintained for at least 4s.
unblank the video
Wait until valid and stable audio and video, corresponding to the
requested output is delivered
AND
the backlight has been switched on for at least the time which is
indicated in the display file as preheat time
Release audio mute
Set the Ambilight functiona lity according the last status
settings
No
Start POWER-OK line
detection algorithm as defined
in the CHS service.
return
Display already on?
(cold boot with splash
screen)
Yes
Startup display
(see separate tab)
Display cfg file present
and up to date, according
correct display option?
No
Prepare Start screen Display config
file and copy to Flash
Yes
