Philips 55PFL8007T Service Manual

Service Modes, Error Codes, and Fault Finding
EN 23QFU1.1E LA 5.
2012-Sep-14
back to
div. table
Quality items
• Signal quality. Bad / average /good (not for DVB-S).
• Ethernet MAC address. Displays the MAC address
present in the SSB.
• Wireless MAC address. Displays the wireless MAC
address to support the Wi-Fi functionality.
• BDS key. Indicates if the set is in the BDS status.
• CI module. Displays status if the common interface
module is detected.
• CI + protected service. Yes/No.
• Event counter :
S : 000X 0000(number of software recoveries : SW
EVENT-LOG #(reboots)
S : 0000 000X (number of software events : SW EVENT-
LOG #(events)
H : 000X 0000(number of hardware errors)
H : 0000 000X (number of hardware events : SW EVENT-
LOG #(events).
• Coldboot counter. Neglect “BDS mode settings”
• Fastcoldboot counter. Neglect “BDS mode settings”
• Hotboot counter. Neglect “BDS mode settings”
• Application hotboot counter. Neglect “BDS mode
settings”
How to Exit CSM
Press “MENU” (or "HOME") / “Back” key on the RC-transmitter.
5.3 Start-up
As described, the start-up diagrams below, documents which
supplies are present at any certain moment.

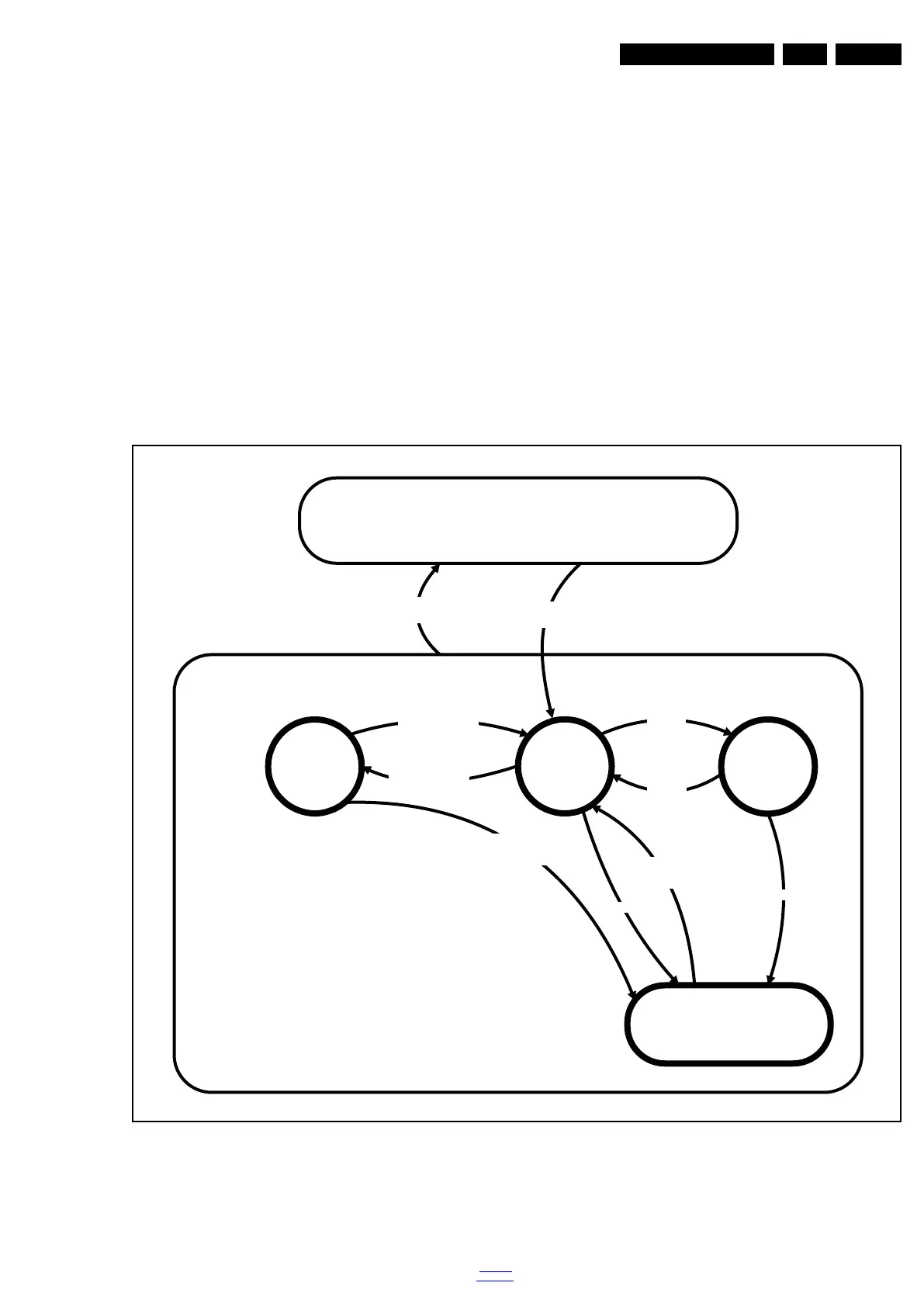

Figure 5-4 Transition diagram
19210_076_120504.eps
120504
Active
Off
On
Semi
St by
St by
Mains
on
Mains
off
GoToProtection
-WakeUp requested
-Acquisition needed
- stby requested and
no data Acquisition
required
St by
requested
WakeUp
requested
Protection
WakeUp
requested
(SDM)
GoToProtection
GoToProtection
(triggered during startup
by standby µP)
