FUNCTIONAL OVERVIEW
(
*
) The unit can also be turned on by pressing these buttons.
1. STANDBY-ON
button
Press to turn the unit on and off.
2. Disc tray
Place a disc when opening the disc tray.
3. OPEN/CLOSE A button*
Press to open or close the disc tray.
4. Display
Refer to “Front Panel Display” on page 14.
5. HDD ACTIVE indicator
Appears when HDD is in recording, dubbing, or play-
ing back.
6. PLAY B button*
Press to start or resume playback.
7. STOP C button
Press to stop playback or recording.
8. RECORD button
Press once to start a recording. Press repeatedly to
start one-touch timer recording.
9. DV-IN jack (E3)
Use to connect the DV output of external device with
a DV cable.
10. AUDIO input jacks (E2)
Use to connect external device with a RCA audio
cable.
11. VIDEO input jack (E2)
Use to connect external device with a RCA video
cable.
12. USB input jack (USB)
You can plug your USB device here, and play back the
contents in it.
13. Infrared sensor window
Receive signals from your remote control so that you
can control the unit from a distance.

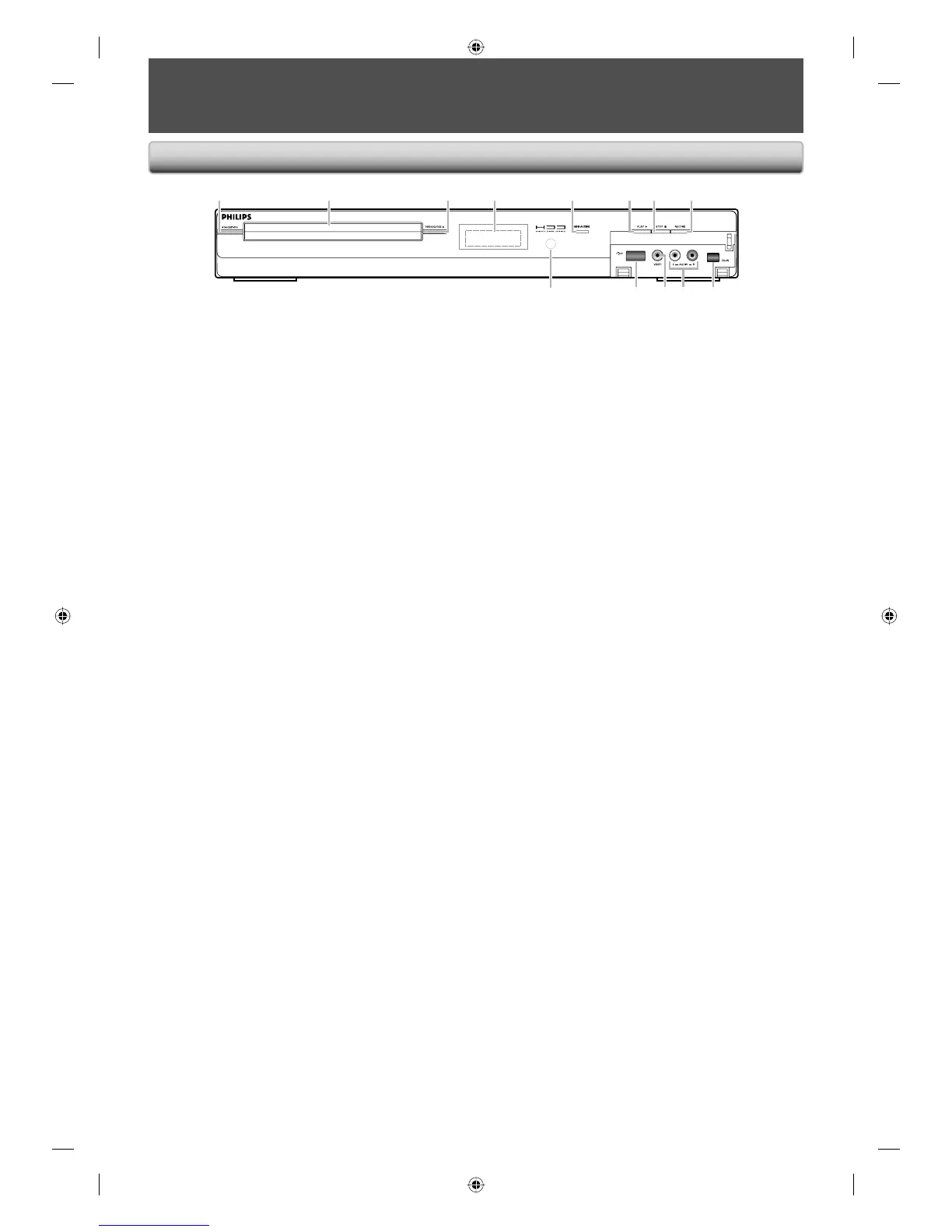

Front Panel
HDD & DVD PLAYER / RECORDER DVDR
3575
H
1 2 3* 5 6* 7 8
910111213
4
USB
