11EN
Recording Playback Editing
Introduction
Connections Basic Setup Function Setup Others
11EN
1. ANTENNA IN jack
Use to connect an antenna.
2. VIDEO IN jack (E1)
Use to connect external device with a RCA video
cable.
3. VIDEO OUT jack
Use to connect a TV monitor, AV receiver or other
device with a RCA video cable.
4. COMPONENT VIDEO OUTPUT jacks
Use to connect a TV monitor with component video
inputs with a component video cable.
5. HDMI OUT jack
Use an HDMI cable to connect to a display with an
HDMI compatible port.
6. AC Power Cord
Connect to a standard AC outlet to supply power to
this unit.
7. DIGITAL AUDIO OUTPUT (COAXIAL/OPTICAL) jacks
Use to connect an AV receiver, Dolby Digital decoder
or other device with a digital audio coaxial/optical
input jack with a digital audio coaxial/optical cable.
8. S-VIDEO OUT jack
Use to connect the S-video input of a TV monitor, AV
receiver or other device with an S-video cable.
9. AV OUT jacks
Use to connect a TV monitor, AV receiver or other
device with a RCA audio cable.
10. S-VIDEO IN jack (E1)
Use to connect the S-video output of external device
with an S-video cable.
11. AV IN jacks (E1)
Use to connect external device with a RCA audio
cable.
12. ANTENNA OUT jack
Use to connect an RF coaxial cable to pass the signal
from the ANTENNA IN to your TV.
Note
• Do not touch the inner pins of the jacks on the rear
panel. Electrostatic discharge may cause permanent
damage to the unit.
• This unit does not have the RF modulator.

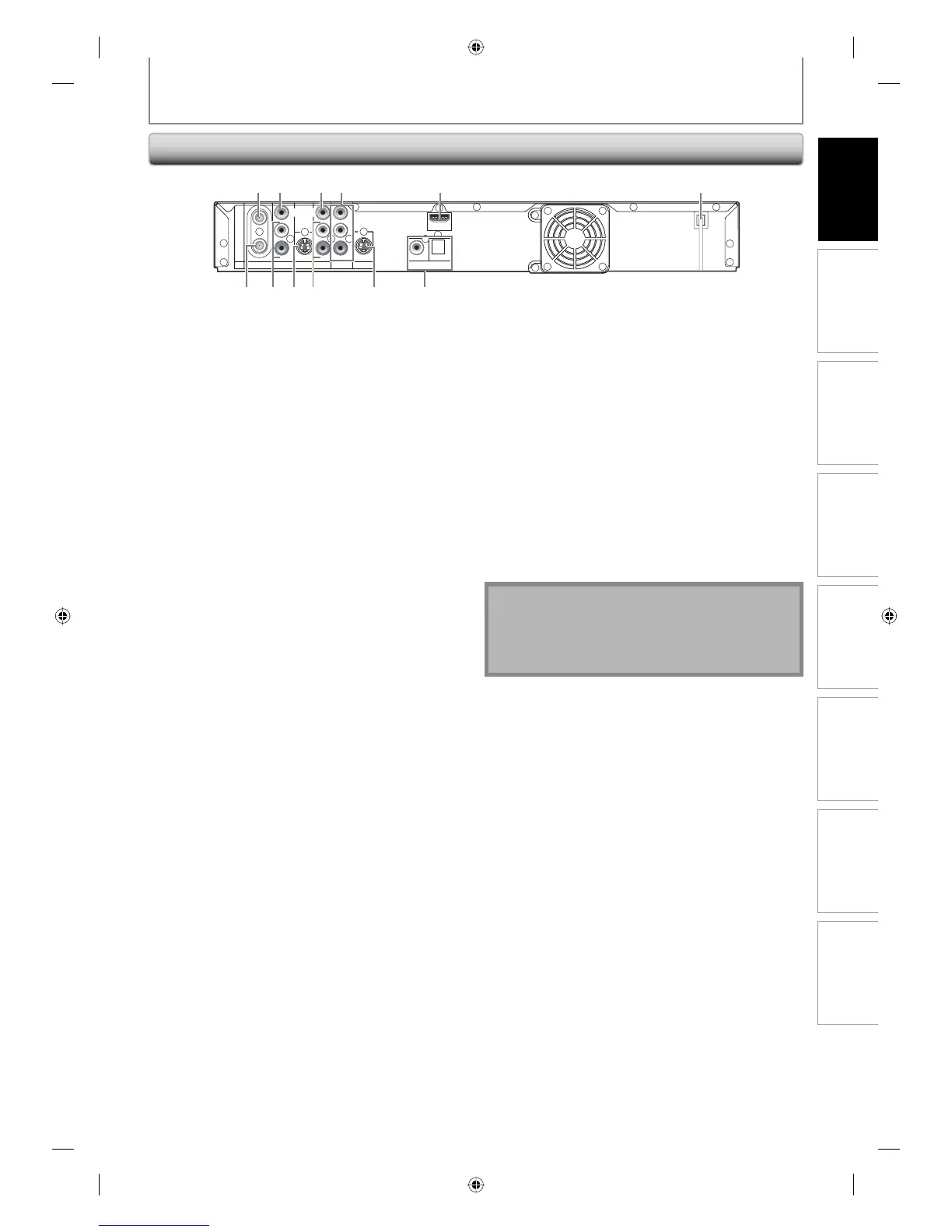

Rear Panel
FUNCTIONAL OVERVIEW
IN
OUT
OUT
VIDEO
OUT
Y
P
R
/C
R
P
B
/C
B
R
L
R
L
VIDEO
IN
S-VIDEO
S-VIDEOANTENNA
COAXIAL OPTICAL
AV IN
AV O U T
COMPONENT
VIDEO OUTPUT
DIGITAL AUDIO OUTPUT
PCM / BITSTREAM
IN
HDMI OUT
1 2 43 65
10 8
712 11 9
E2H40UD.indd 11E2H40UD.indd 11 2007/05/16 16:27:542007/05/16 16:27:54
