Graph 1
① Push the direction
adjustment bar to the top.
③ Pull out the latch bolt, rotate it
to adjust the direction.
② Insert a screw driver to the
slot, and use the screw driver to
push the latch bolt’s connecting
rod to the direction of the latch
bolt.
④ Follow the direction of
the arrow to push the latch
bolt in.
Pre-install instruction

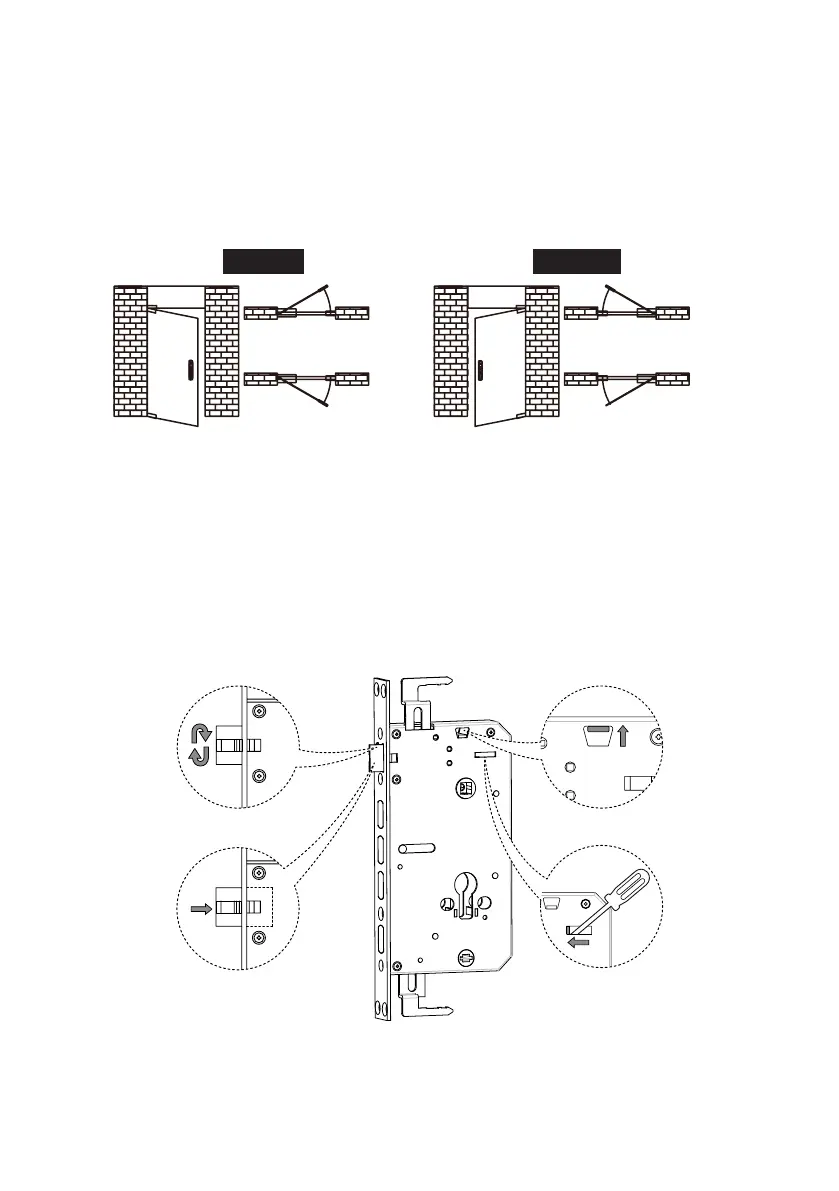

Step 1 | Door opening direction
This product is suitable for doors with four opening directions: left-out pull, right-
out pull, left-in push and right-in push.
Left-open Right-open
Left-in push Right-in push
Left-out pull Right-out pull
Step 2 | Changing the latch bolt’s direction
You can change the direction of the latch bolt to adapt to doors of dierent
opening directions. When the bolt bevel faces outside, it is for inwards opening;
And when the bolt bevel faces inside, it is for outwards opening. There might
be one of the two types of mortise attached, please follow the below steps to
change the latch bolt’s direction as per “Graph 1” or “Graph 2”.
To Next Page
