Philips EasyKey 9000 Series User Manual

6
First x the mounting plate
against the inner surface of the
door, and fasten it with 4 M5
connecting screws, and then x the
upper mounting plate w ith M6
connecting screws.
Fasten the 4 anchor
screws in the
mortise.
The latch bolt can’t be poped
up during installation.
2
Pass the connecting cable through
the hole above the door. Align
the square shaft of the outside
escutcheon with the two rotary
holes on the mortise, then
insert the square shaft into the
rotary holes, so that the outside
escutcheon is close t in the outside
door.
4
5

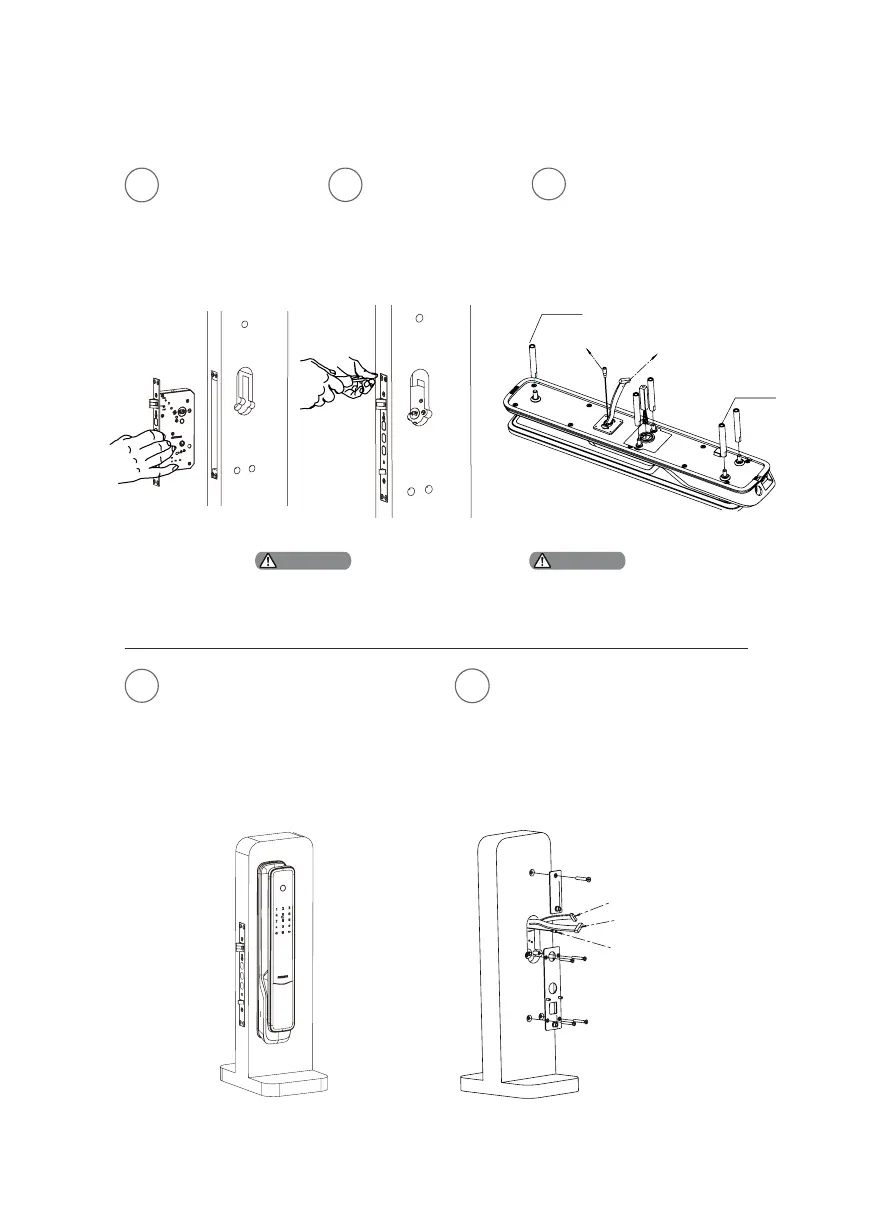

Installation Steps
Please use the appropriate
square shaft and connecting
tubes with proper length.
To install the connecting
screw tubes on the outside
escutcheon, and put the
compressed spring and
square shaft accordingly
into the square shaft
holes.
3
1
To drill the needed
holes in the door
as per the drilling
template,then mount
the mortise on the
door frame.
M6 Connecting
Screw Tube
Mortise Connecting
Cable
Escutcheon
Connecting Cable
Front Bluetooth
Connecting Cable
M5 Connecting
Screw Tube
Front Bluetooth
Connecting Cable
Escutcheon
Connecting Cable
