6. Clip: To connect, press onto the mask frame .
7. Headgear tab: Press tab against the headgear strap to reattach .
Adjusting the Mask
8. Headgear: Adjust the top straps evenly .
9. Headgear: Adjust the bottom straps evenly .
Note: Do not overtighten the headgear.
The location of the headgear crown strap may vary depending on head size. Position the strap so
the mask sits comfortably .
Using the mask
10. Connect the exible tubing (included with CPAP or bi-level device) to the quick release swivel.
11. Turn the therapy device on. Lie down. Breathe normally.
12. Assume dierent sleeping positions. Move around until comfortable. If there are any excessive air leaks,
make nal adjustments. Some air leaking is normal.
Tubing Quick Release
The elbow is equipped with a tubing quick release for the CPAP tubing. Pull on the tubing quick release
and it will disengage from the elbow and come loose with the tubing .
Comfort Tips
• The most common mistake is overtightening the headgear. The headgear should t loose and
comfortable. If your skin bulges around the mask or if red marks appear on your face, loosen the
headgear.
• Re-seat the mask by pulling it directly away from your face and gently setting it back into place.
Removing the Mask
Disconnect a bottom clip or undo a headgear tab. Slide the headgear forward over your head.
Disassembly / Assembly

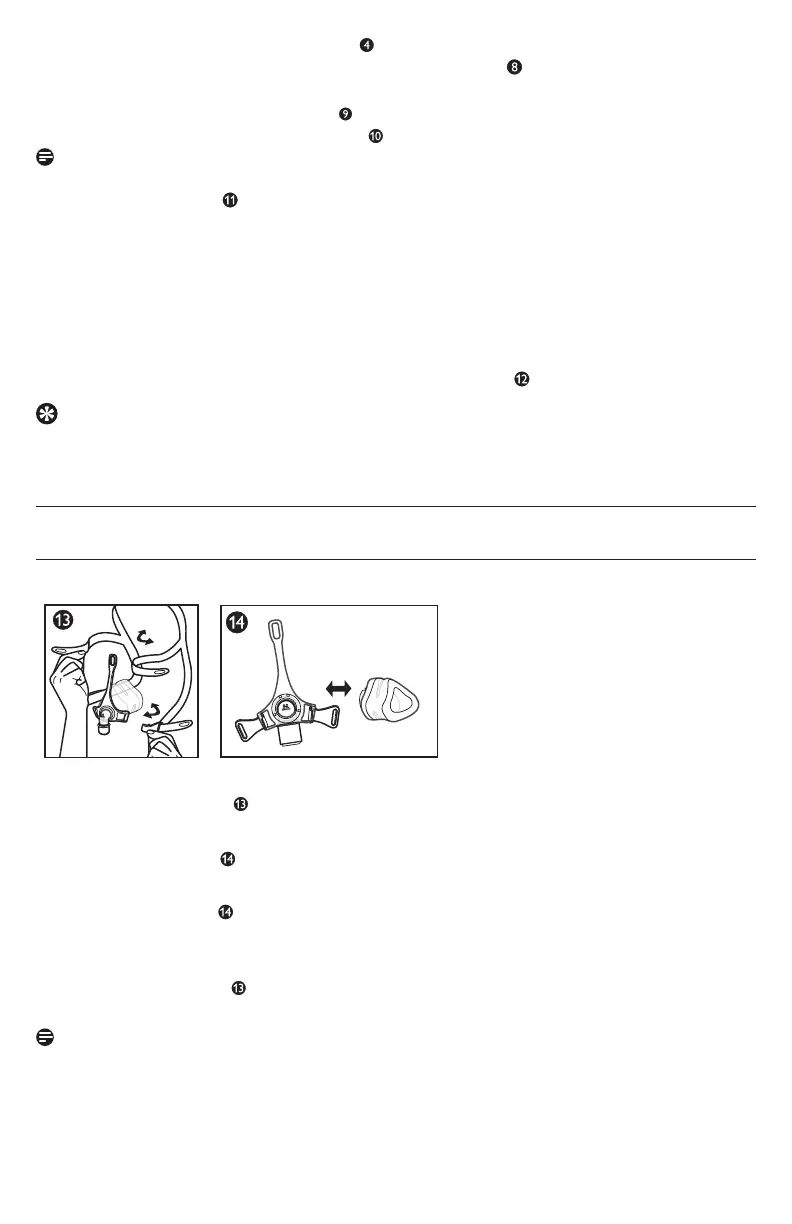

Removing the Headgear
Peel away the tabs and pull through the slots in the mask frame or clip.
Removing the Cushion
Pull cushion away from the frame.
Attaching the Cushion
1. Align the cushion size (S/M, L, XL) mark on the bottom of the cushion to the bottom edge of the frame.
2. Press cushion onto frame until it clicks into place.
Attaching the Headgear
1. With the crown strap upward hold the top straps together.
Note: The Philips Respironics logo is on the outside back of the headgear when correctly assembled.
2. Thread the top straps through the top slot in the mask frame.
3. Thread the bottom straps through the bottom slots in the mask frame or clips.
4. Fold the ends back and press the tabs onto the straps.
