03_06
Lubricating oil for flexible shafts (throttle control)
Hub oil level (03_07, 03_08, 03_09)
Check the oil in the rear hub.
To check the rear hub oil level, proceed as follows:
1.Park the scooter on level ground and rest it on its centre stand.
2. Unscrew the oil dipstick «A», dry it with a clean cloth. Reinsert it and screw it tightly
into place.
3. Pull out the dipstick and check that the oil level is between the MIN and MAX ref-
erence marks. If the oil level is below the MIN notch, top up with the required amount
of hub oil.
4. Screw the dipstick back in, checking that it is locked in place.

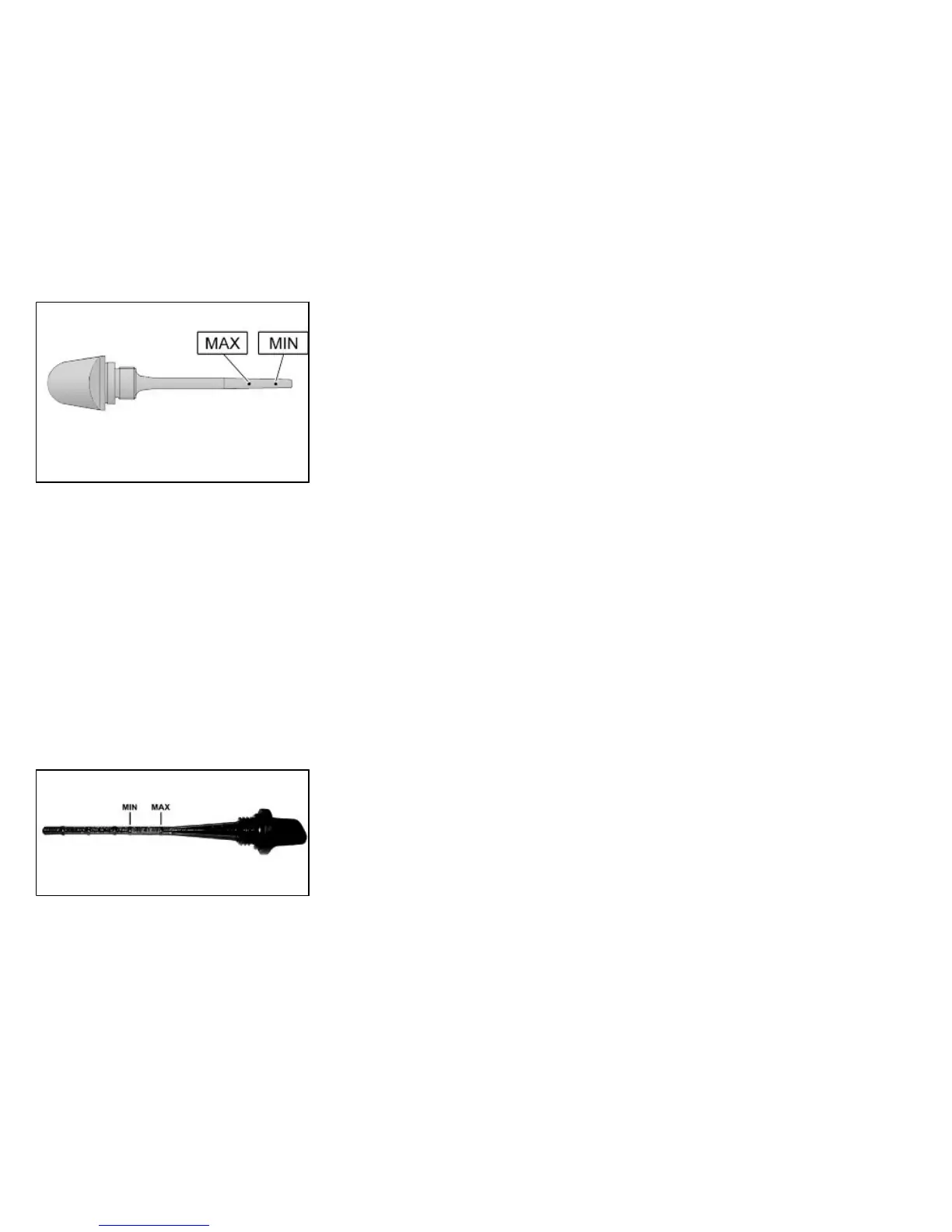

03_07
The notches on the hub oil level dipstick, apart from that indicating the MAX level,
refer to other models from the manufacturer and have no specific function for this
model.
47
