Pioneer A-209R Service Manual

3
A-209R, A-209

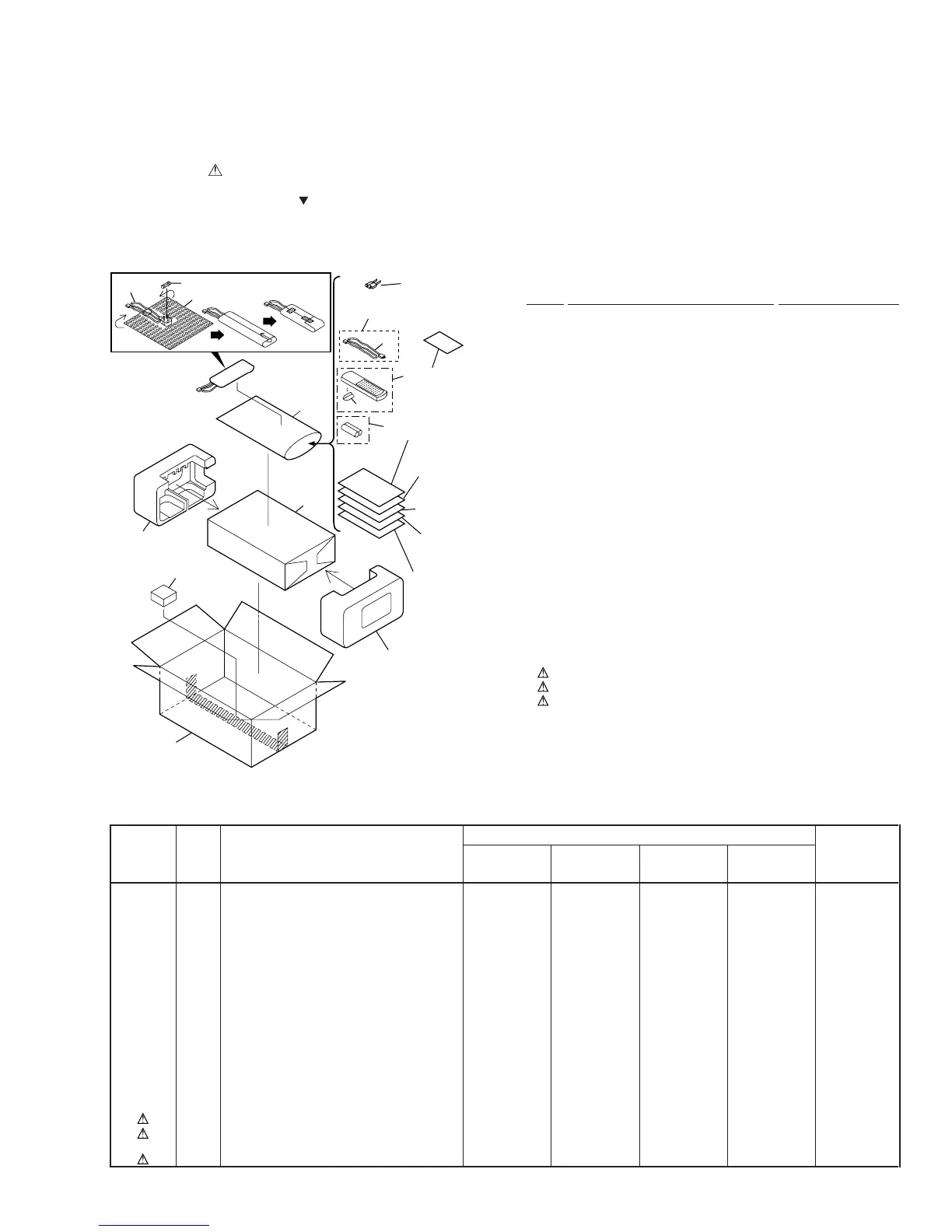

2.1 PACKING
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
1 Operating Instructions See Contrast table(2)
(English)
2 Operating Instructions See Contrast table(2)
(German)
3 Operating Instructions See Contrast table(2)
(French/Italian/Dutch/Swedish/Spanish/Portugese)
NSP 4 Warranty Card See Contrast table(2)
5 Remote Control Unit (CU-A019) See Contrast table(2)
6 Battery Cover See Contrast table(2)
NSP 7 Dry Cell Battery (AA/R6P) See Contrast table(2)
8 Side Pad L AHA7205
9 Side Pad R AHA7206
10 Sub Pad AHA7218
11 Packing Case See Contrast table(2)
NSP 12 Literature Bag AHG1180
13 Packing Sheet AHG7015
14 Operating Instructions See Contrast table(2)
(English/Spanish/Chinese)
15 Caution Label 220V See Contrast table(2)
16 AC Plug Adapter See Contrast table(2)
NSP 17 Air Cap See Contrast table(2)
18 Power Cord See Contrast table(2)
19 Power Cord with Fuse See Contrast table(2)
20 Fuse (T5A) See Contrast table(2)
(1) PACKING PARTS LIST
(2) CONTRAST TABLE
A-209R/MYXJ, MVXJ, A-209/MLXJ and SBDXJ are constructed the same except for the following :
6
12
17
20
19
13
8
10
11
9
5
7
18
MVXJ type Only
Except
MVXJ type
2 (MYXJ type
Only)
15
(SBDXJ type
Only)
3 (MYXJ type
Only)
14 (MLXJ and
SBDXJ types
Only)
16 (SBDXJ
type Only)
1 (MYXJ and
MVXJ types
Only)
4 (MYXJ and
MVXJ types
Only)
FRONT
Part No.
Mark No. Symbol and Description A-209R A-209R A-209 A-209 Remarks
/MYXJ /MVXJ /MLXJ /SBDXJ
1 Operating Instructions (English) ARB7236 ARB7236 Not used Not used
2 Operating Instructions (German) ARC7322 Not used Not used Not used
3 Operating Instructions (French/Italian/ ARC7323 Not used Not used Not used
Dutch/Swedish/Spanish/Portuguese)
NSP 4 Warranty Card ARY7022 ARY7022 Not used Not used
5 Remote Control Unit (CU-A019) AXD7193 AXD7193 Not used Not used
6 Battery Cover AZN2249 AZN2249 Not used Not used
NSP 7 Dry Cell Battery (AA/R6P) VEM-013 VEM-013 Not used Not used
11 Packing Case AHD7869 AHD7869 AHD7870 AHD7891
14 Operating Instructions Not used Not used ARE7269 ARE7269
(English/Spanish/Chinese)
15 Caution Label 220V Not used Not used Not used ARR1003
16 AC Plug Adapter Not used Not used Not used VKX1007
NSP 17 Air Cap Not used AHG1087 Not used Not used
18 Power Cord ADG1154 Not used ADG1154 ADG1154
19 Power Cord with Fuse Not used ADG1156 Not used Not used
20 Fuse (T5A) Not used AEK1046 Not used Not used
