Pioneer BDP-LX91 User Manual

13
En
01

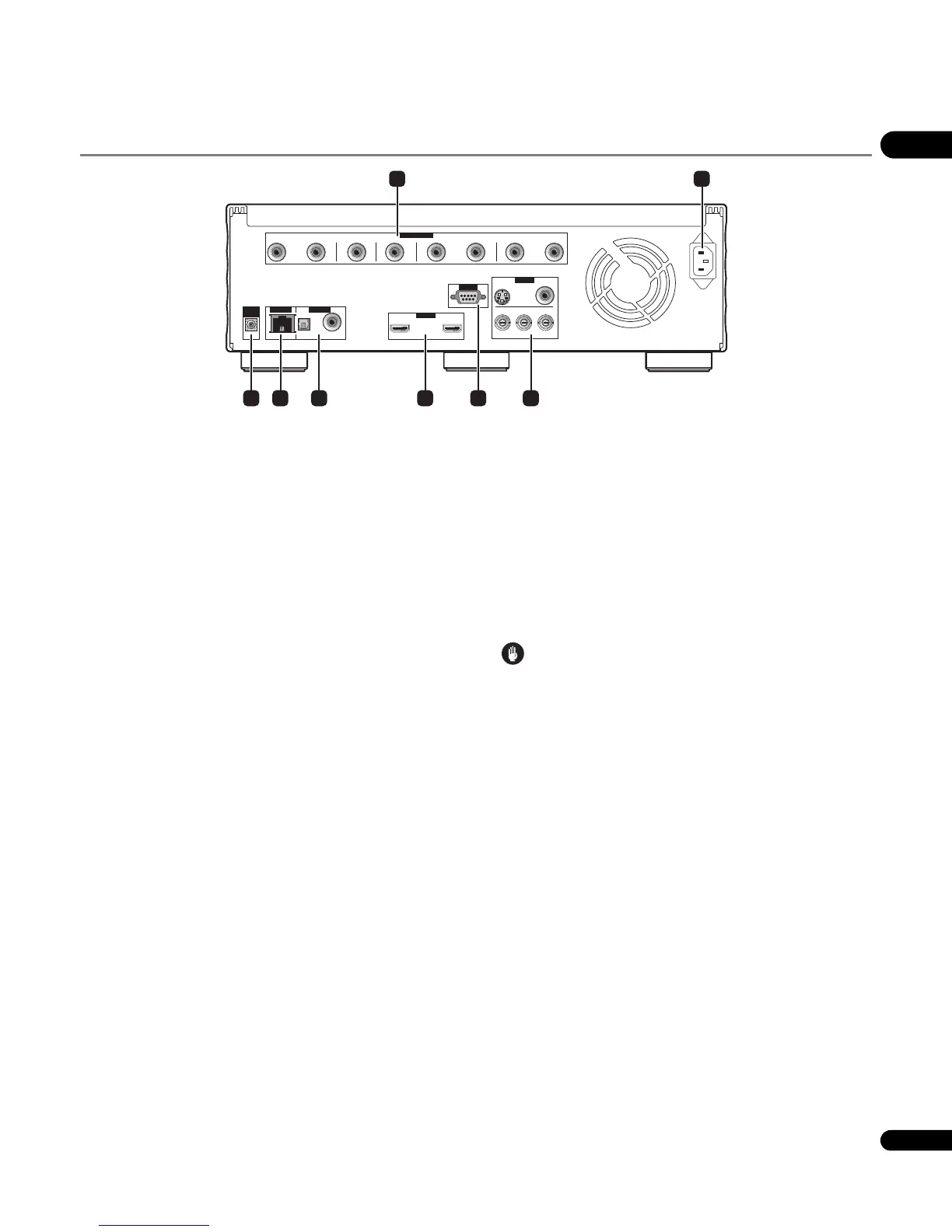

Rear Panel
1 AUDIO OUT (7.1 ch) terminals
Connect with the multi-channel (7.1- or 5.1-channel) audio input
terminals on an AV receiver or amplifier, etc. (page 18).
To connect to the 2-channel audio input terminals on a TV, etc.,
connect to FRONT (L/R).
2AC IN
Connect the power cord here.
3 VIDEO OUT terminals
VIDEO – Connect with the video input terminal on a TV, AV
receiver or amplifier, etc. (page 17).
S-VIDEO – Connect with the S-Video input terminal on a TV, AV
receiver or amplifier, etc. (page 17).
COMPONENT VIDEO (BNC jacks) – Connect with the
component video input terminals on a TV, AV receiver or
amplifier, etc. (page 17).
4 RS-232C terminal
This terminal is not used.
5 HDMI OUT terminals
MAIN (KURO LINK) – Connect with an HDMI-compatible TV, AV
receiver or amplifier, etc. (page 15).
SUB – Connect with an HDMI-compatible TV, projector, etc.
(page 15). This terminal outputs linear PCM 2-channel audio
signals. Do not connect an AV receiver or amplifier to this
terminal. Also note that the KURO LINK function will not work
for devices connected to this terminal (page 15).
6 DIGITAL OUT (COAXIAL/OPTICAL) terminals
Connect with the digital audio input terminal on an AV receiver or
amplifier, etc. (page 18).
7 LAN (100) terminal
Ethernet port for 100BASE-TX (100 Mbps) network connection
(page 19).
8 CONTROL IN terminal
Use to control this player from the remote sensor of another Pioneer
component with a CONTROL OUT terminal and bearing the 
mark. Connect the CONTROL OUT terminal of the other component
to CONTROL IN on this player using a mini-plug cord (commercially
available).
Caution
• Be sure to connect cables for outputting the audio and video
signals.
• When connected via System Control, point the remote control
toward the connected component (such as an AV receiver or
amplifier). The remote will not work correctly when pointed at
this player.
• You cannot use System Control with components that do not
have a System Control terminal or with components
manufactured by companies other than Pioneer.
ACIN
R
VIDEO OUT
HDMI OUT
RS-232 C
DIGITAL OUT
LAN(100)
CONTROL
IN
L
R
L
R
L
YPBPR
FRONT
OPTICAL COAXIAL
COMPONENT VIDEO
SURROUNDCENTER
VIDEO
S-VIDEO
MAIN(KURO LINK) SUB
SUB WOOFER SURROUND
BACK
AUDIO OUT ( 7.1 ch )
1 2
35678 4

Pioneer BDP-LX91 Specifications

General

HDMI	Yes
Weight	14300 g
Audio system	Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD
Playback formats	AVCHD, DivX
Dimensions (WxDxH)	420 x 365 x 143 mm
Power requirements	AC 220-240 V, 50/60 Hz
Disc types supported	BD-ROM, CD, DVD-R DL
Audio formats supported	AAC, MP3, WMA
Image formats supported	JPG
Power consumption (standby)	0.3 W
Power consumption (typical)	59 W
Component video (YPbPr/YCbCr) out	1
Audio output channels	7.1 channels
Networking features	Ethernet
