Pioneer DJM-500 Service Manual

DJM-500

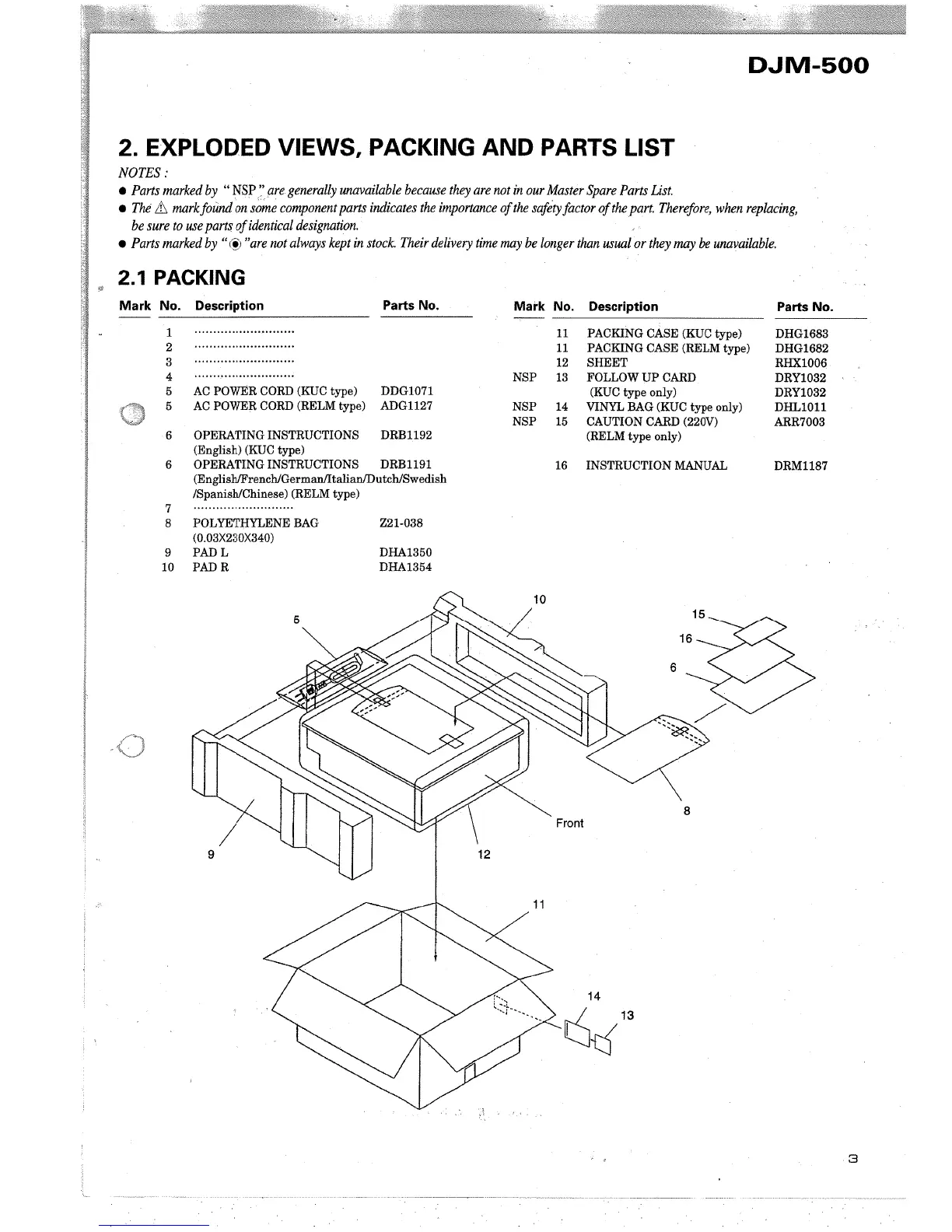

2. EXPLODED VIEWS, PACKING AND PARTS LIST
NOTES:
. Parts marked by "NSP.".ae generally unavailable because they are not in our Master Spare Parts List,
. Thé 6 mark foùnd on some component parts indicates the importance of the safety factor of thepart, Therefore, when replacing,
be sure to use parts of identical designation.
. Parts marked by .. (~) "are not always kept in stock, Their delivery time may be longer than usual or they ma be unavailable,
2.1 PACKING
Mark No, Description
Parts No,
Mark No.
Description
Parts No.
-
1
............................
11
PACKING CASE (KUC type)
DHGl683
2
...........................
11 PACKING CASE (RELM type)
DHGl682
3
...........................
12 SHEET
RHXI006
4
............................
NSP 13 FOLLOW UP CARD
DRYI032
5 AC POWER CORD (KUC type)
DDGlO71
(KUC type only)
DRYI032
5 AC POWER CORD (RELM type)
ADG1127
NSP 14
VINY BAG (KUC type only)
DHLI011
NSP 15
CAUTION CARD (220V)
ARR7003
6 OPERATING INSTRUCTIONS
DRB1192
(RELM type only)
(English) (KUC type)
6 OPERATING INSTRUCTIONS
DRB1191
16 INSTRUCTION MAUAL
DRM1187
(EnglishJrench/Germantalianutch/Swedish
/Spanish/Chinese) (RELM type)
7
...........................
8
POLYETHYENE BAG Z21-038
(0.03X230X340)
9
PADL DHA1350
10 PADR DHA1354
3

Pioneer DJM-500 Specifications

Power

power supply voltage	AC 120 V, 60 Hz
power consumption	41 W

Operating Environment

operating temperature	+5 °C to +35 °C
operating humidity	5 % to 85 %

Weight and Dimensions

weight	5.9 kg
external dimensions	320 (W) x 357.4 (D) x 107 (H) mm
