Pioneer DJM-500 Service Manual

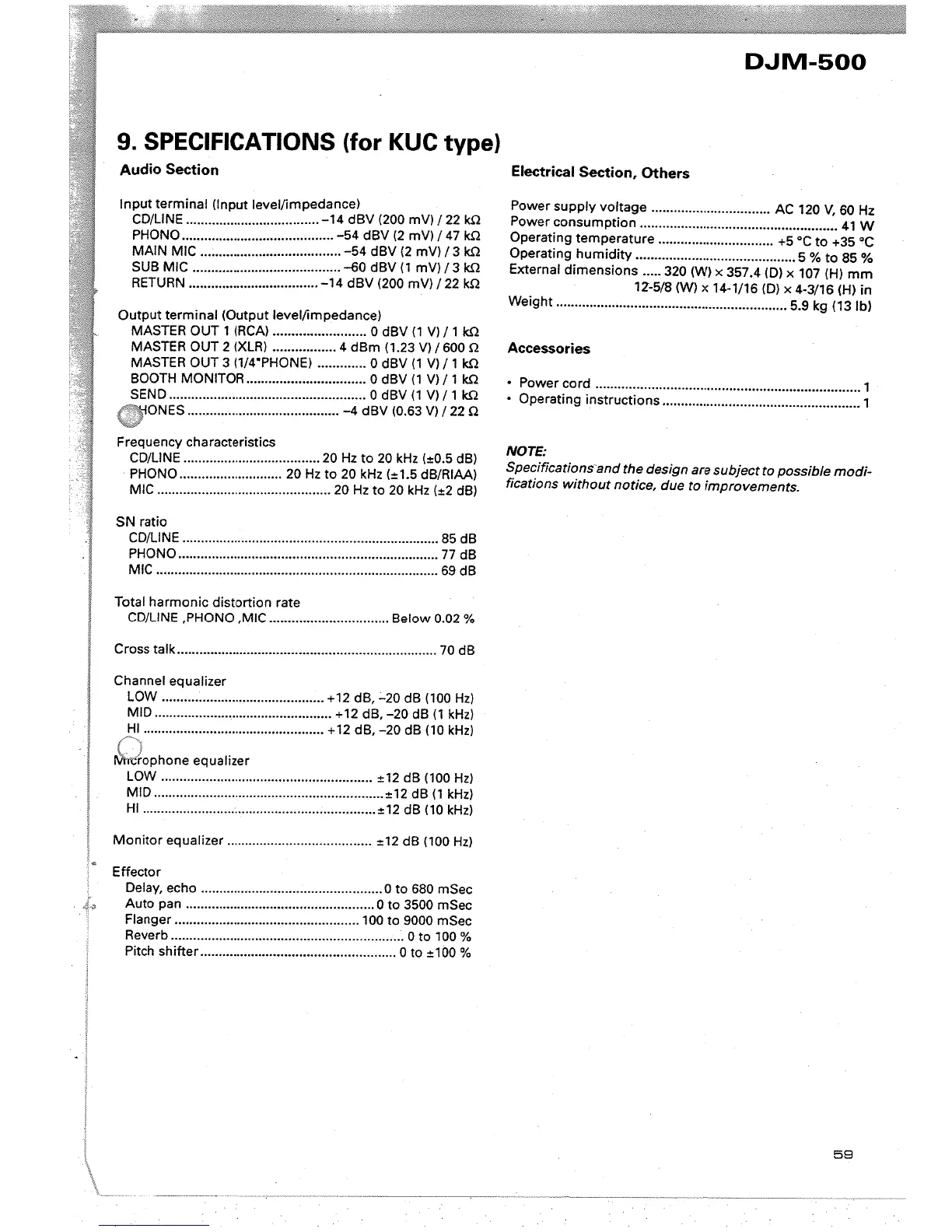

9. SPECIFICATIONS (for KUC type)
Audio Section
Input terminal (Input levellimpedance)
CD/LINE ....................................-14 dBV (200 mV) / 22 kQ
PHONO ......................................... -54 dBV (2 mV) / 47 kQ
MAIN MIC ...................................... -54 dBV (2 mV) /3 kQ
SUB MIC ........................................ -60 dBV (1 mV) /3 kQ
RETURN ................................... -14 dBV (200 mV) / 22 kQ
Output terminal (Output levellimpedance)
MASTER OUT 1 (RCA) ......................... 0 dBV (1 V) / 1 kQ
MASTER OUT 2 (XLR) ................. 4 dBm (1.23 V) / 600 Q
MASTER OUT 3 (1/4"PHONE) ............. 0 dBV (1 V) / 1 kQ
BOOTH MONITOR ................................ 0 dBV (1 V) /1 kQ
SEND..................................................... 0 dBV (1 V) /1 kQ
ONES ......................................... -4 dBV (0.63 V) / 22 Q
Frequency characteristics
CD/LINE ..................................... 20 Hz to 20 kHz (::o.5 dB)
PHONO............................ 20 Hz to 20 kHz (::1.5 dB/RlAA)
MIC ............................................... 20 Hz to 20 kHz (::2 dB)
SN ratio ................. 85 dB
CD/LINE .................................................... 77 dB
PHONO....................................................................,. 69 dB
MIC ...................,.................,.......,..............................
Total harmonic distortion rate
CD/LINE ,PHONO ,MIC ................................ Below 0.02 %
Cross talk......................................................................70 dB
Channel equalizer
LOW............................................ + 12 dB, -20 dB (100 Hz)
MID................................................ +12 dB, -20 dB (1 kHz)
HI................................................. +12 dB, -20 dB (10 kHz)
/"'.'"0,,"
( ¡
Ntr60phone equalizer
LOW..,....................,................................. ::12 dB (100 Hz)
MID ..............................................................::12 dB (1 kHz)
HI ..,...........................,.,......................,.......::12 dB (10kHz)
Monitor equalizer ....................................... ::12 dB (100 Hz)
Effector
Delay, echo ................................................. 0 to 680 mSec
Auto pan ...................................................0 to 3500 mSec
Flanger .................................................. 100 to 9000 mSec
Reverb ...............................................................0 to 100 %
Pitch shifter ..................................................... 0 to :: 1 00 %
D.JM-500
Electrical Secion, Others
Power supply voltage ................................ AC 120 V, 60 Hz
Power consumption ..................................................... 41 W
Operating temperature ............................... +5 °C to +35 °C
Operating humidity ........................................... 5 % to 85 %
External dimensions .....320 (W) x 357.4 (D) x 107 (H) mm
12-5/8 (W) x 14-1/16 (D) x 4-3/16 (H) in
Weight .............................................................. 5.9 kg (13 Ib)
Accessories
. Power cord ....................................................................... 1
. Operating instructions .....................................................1
NOTE:
Specifications-and the design are subject to possible modi-
fications without notice, due to improvements.
59

Pioneer DJM-500 Specifications

Power

power supply voltage	AC 120 V, 60 Hz
power consumption	41 W

Operating Environment

operating temperature	+5 °C to +35 °C
operating humidity	5 % to 85 %

Weight and Dimensions

weight	5.9 kg
external dimensions	320 (W) x 357.4 (D) x 107 (H) mm
