Pioneer DVH-760AV/XEUW5 User Manual

DVH-760AV/XEUW5
18
1234
1234
C
D
F
A
B
E

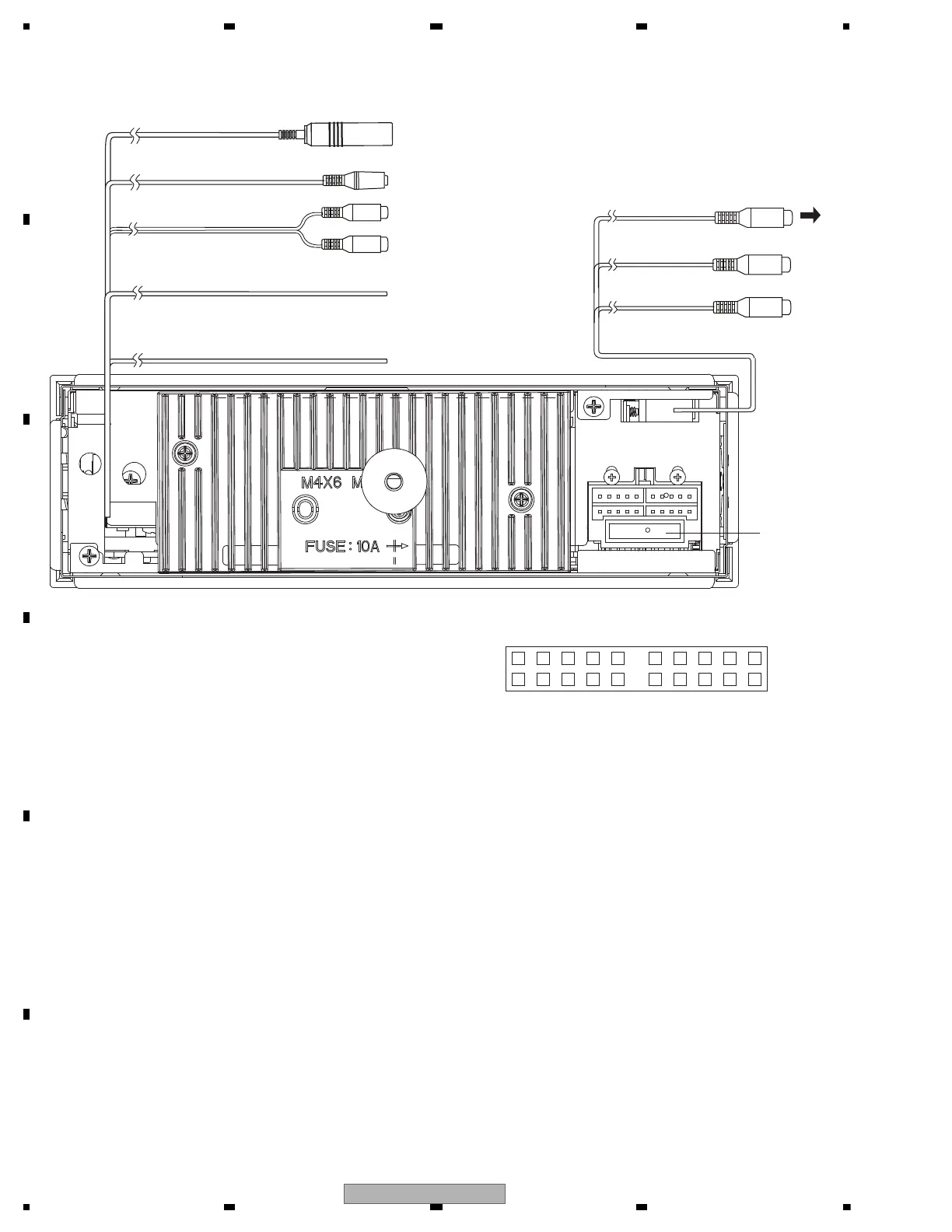

5.3 CONNECTOR FUNCTION DESCRIPTION
1: FR-
2: FL+
3: FR+
4: FL-
5: RR+
6: ILLU_IN
7: RR-
8: ANT
9: T_MUTE
10: +B
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
17
18
19
20
11: RL+
12: GND
13: RL-
14: LO-FL
15: ACCIN
16: LO-FR
17: GND
18: GND
19: LO/SUB-RR
20: LO/SUB-RL
Fuse 10A
(Pink)
REVERSE
SWC (Steering Wheel Control)
AUDIO IN (AV)
RADIO ANTENNA
R(Red)
L(White)
(Light Green/White)
PARKING SW
(Active low level input)
VIDEO OUT
(Yellow)
(Yellow)
CAMERA IN
(Yellow)
VIDEO IN (AV)
To Monitor with
NTSC system
