CONNECTIONS
÷ Before making or changing the connections, switch off the
STANDBY/ON switch and disconnect the power cord from
the AC outlet.
CONNECTING THE OUTPUT CABLE:
Connect the LINE OUT jacks of this unit to the input jacks (CD or
AUX) of the amplifier. Make sure that the white plugs are connected
to the left (L) jacks and the red plugs to the right (R) jacks.
÷ Be sure not to connect this unit to the amplifier’s PHONO jacks,
as sound will be distorted and normal playback will not be
possible.
CD•Deck synchro function
If you have a Pioneer cassette deck provided with the CD•Deck
synchro function, connect the CD•DECK SYNCHRO jacks of the
CD player and cassette deck. With this function, synchro recording
can be carried out between player and deck.
÷ For details on connections and operation, refer to the Operating
Instructions supplied with the cassette deck.
÷ The CD•DECK SYNCHRO cable is not supplied with the CD
player.
NOTE:
In order to enable the CD
•
DECK SYNCHRO recording function, the
normal output cable must be connected to the stereo amplifier.
CONNECTING THE POWER CORD:
Connect the power cord to a household AC wall outlet or an AC
outlet on your amplifier. (See the section “AC power cord connection
and functions” on page 8.)
÷ Make sure plugs are inserted fully into the jacks and wall outlet.

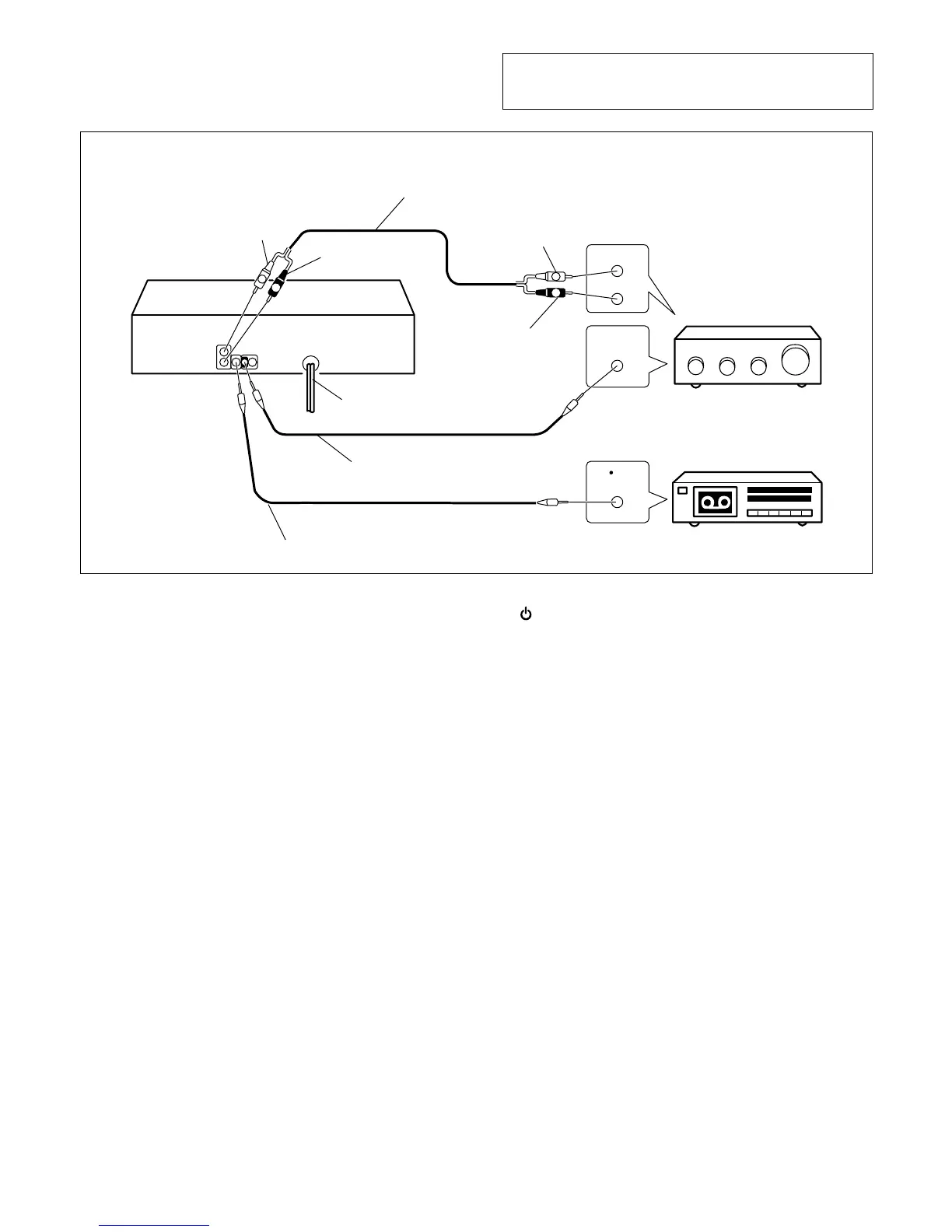

PD-217/PD-117
Output cable
Cable de salida
輸出電纜
White
Blanco
白色
Red
Rojo
紅色
Power cord
Cable de alimentación
電源線
White
Blanco
白色
Red
Rojo
紅色
Stereo amplifier
Amplificador estreo
立體聲放大器
Control cable (PD-117 only)
Cable de control (PD-117 solamente)
控制電纜（只限於 PD-117）
Cassette deck
Grabadora de casetes
卡式放音機
CD•DECK SYNCHRO cable (supplied with cassette deck)
Cable CD•DECK SYNCHRO (suministrado con la platina
de casete)
CD•DECK SYNCHRO 電纜（與錄音卡座一起提供）
R
L
CONTROL
OUT
CD DECK
SYNCHRO
CD
L
R
R
L
