NAMES AND FUNCTIONS OF PARTS

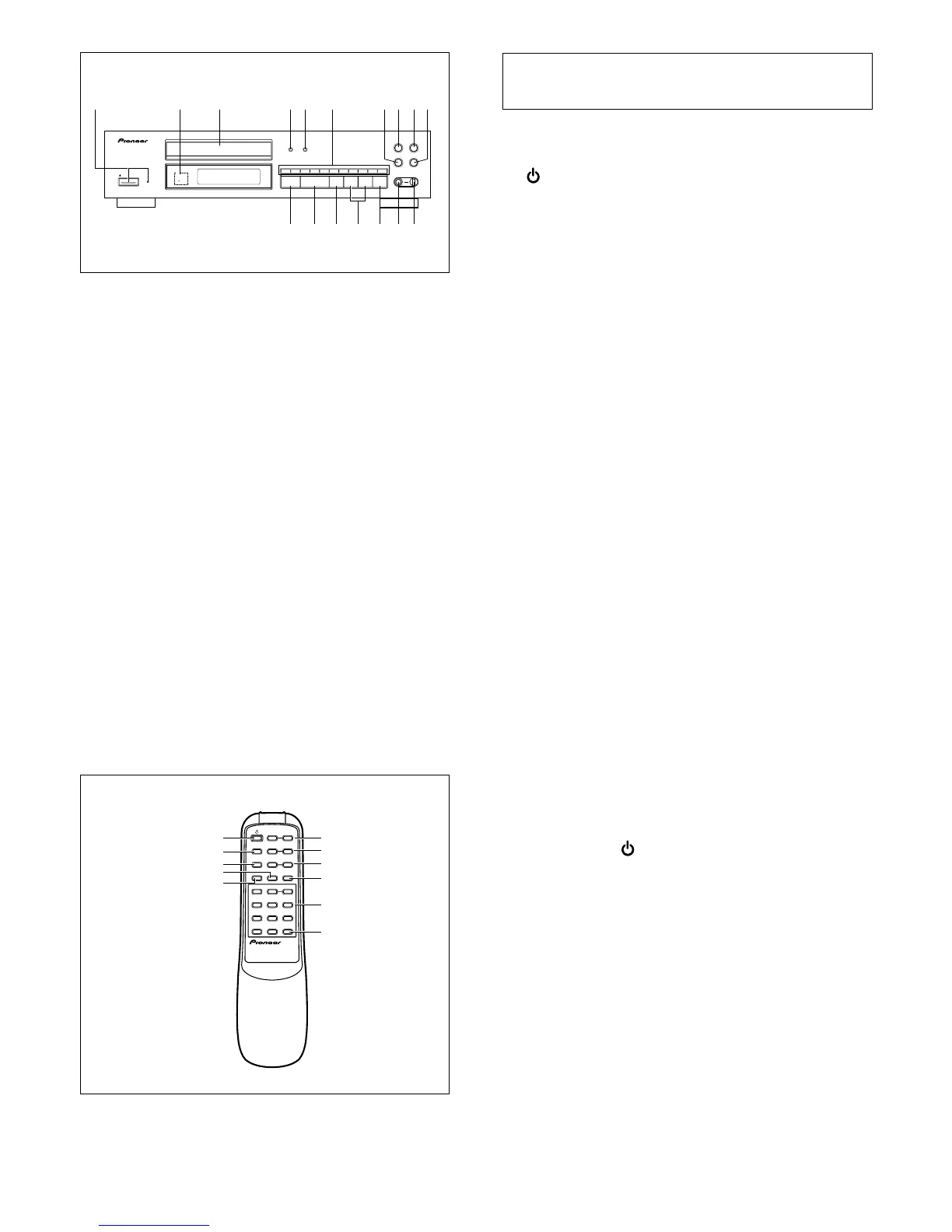

FRONT PANEL
1 STANDBY/ON switch and STANDBY indicator
2 Remote sensor (PD-217 only)
Receives the signal from the remote control unit.
3 Disc tray
4 TIME button
5 DISPLAY OFF button
6 Digit buttons (1 - 10, >10) (PD-217 only)
7 COMPU/AUTO EDIT button
8 RANDOM button
9 REPEAT button
0 HI-LITE scan button
- OPEN/CLOSE button (0)
= Play/Pause button (6)
~ Stop button (7)
! Track/Manual search buttons
(4 1/¡ ¢)
@ PROGRAM button
# Headphones jack (PHONES) (PD-217 only)
$ Headphones volume control (LEVEL) (PD-217
only)
REMOTE CONTROL UNIT (PD-217 only)
Remote control buttons with the same names or marks as buttons
on the front panel of the player control the same operations as the
corresponding front panel buttons.
1 STANDBY/ON( ) button
2 RANDOM PLAY button
3 HI-LITE button
4 PAUSE button ( 8 )
5 STOP button ( 7 )
6 OUTPUT LEVEL buttons (–/+)
7 MANUAL search buttons ( 1 / ¡ )
8 TRACK search buttons ( 4 / ¢ )
9 PLAY button ( 3 )
0 Digit buttons (1 - 10, >10)
- PROGRAM button
PD-217 only
PD-217 seulement
僅為 PD-217 型機
1234567890
$#@!~=-
COMPACT DISC PLAYER
STANDBY/ON
STANDBY
OPEN/CLOSE
0
6 7 41 ¡¢
PROGRAM
RANDOM
REPEAT
EDIT
HI-LITE
PHONES
LEVEL
¶COMPU
¶¶AUTO
MIN MAX
1234567
8
910>10
TIME DISPLAY OFF
Î
CD DECK SYNCHRO
TRACK INDEX MIN SEC/dB
'
DIRECT LINEAR CONVERSION
OUTPUT
– LEVEL +
RANDOM
HI-LITE
1¡
4¢
7
83
123
456
789
10 >10
PROGRAM
Î
COMPACT DISC PLAYER
REMOTE CONTROL UNIT
1
2
3
4
5
6
7
8
9
0
-

Pioneer PD-117 Specifications

Power

power requirements	220 - 240 V, 50/60 Hz
power consumption	12 W
operating temperature	+5˚C - +35˚C

Audio Performance

frequency response	2 Hz - 20 kHz
signal to noise ratio	98 dB or more
dynamic range	96 dB or more
harmonic distortion	0.003% or less
output voltage	2.0 V

Weight and Dimensions

weight	3.1 kg
width	420 mm
height	101 mm
depth	263 mm
