BASIC OPERATION
1
DISP OFF
\
To turn off the display
Press DISPLAY OFF. All the indicators other than DISP OFF go off.
The display circuit which may interfere with the sound quality does
not function.
÷ When the control button is pressed, the corresponding indicator
lights for about a few seconds.
÷ In stop mode or pause mode, the display remains lit even when
DISPLAY OFF is pressed.
Time display
During playback, pressing the TIME button changes the time display
in the following sequence: A Time (elapsed playback time of the
track being played) = B Remain (remaining playback time of the
track being played) = C AL Remain (remaining playback time from
the playing point to the end of the disc) = D Total (total playback
time of the disc).
÷ With track No. 30 or more, the Remain time B cannot be
displayed.
÷ During random playback, AL Remain time C cannot be displayed.
÷ During Program playback, the remaining playback time of the
programmed tracks can be displayed with the AL Remain setting
C. The number of program steps and total time of program can
be displayed with the Total setting D.
D
C
|
E D I T
45
TRACK INDEX MIN SEC/dB
678910
11
12
E D I T
45
TRACK INDEX MIN SEC/dB
678910
11
12
AB
\
E D I T
4 5
TRACK INDEX MIN SEC/dB
6 7 8 9 10
11 12
E D I T
45
TRACK INDEX MIN SEC/dB
678910
11
12
3
(PD-217)
(PD-217)
(PD-217)
7 STOP:
8 PAUSE:
Label surface
Superficie de señales
標簽面
2
\
(PD-217)
«»
8 cm
12 cm
STANDBY/ON
STANDBY
6
6
7
DISPLAY OFF
TIME
OPEN/CLOSE
0

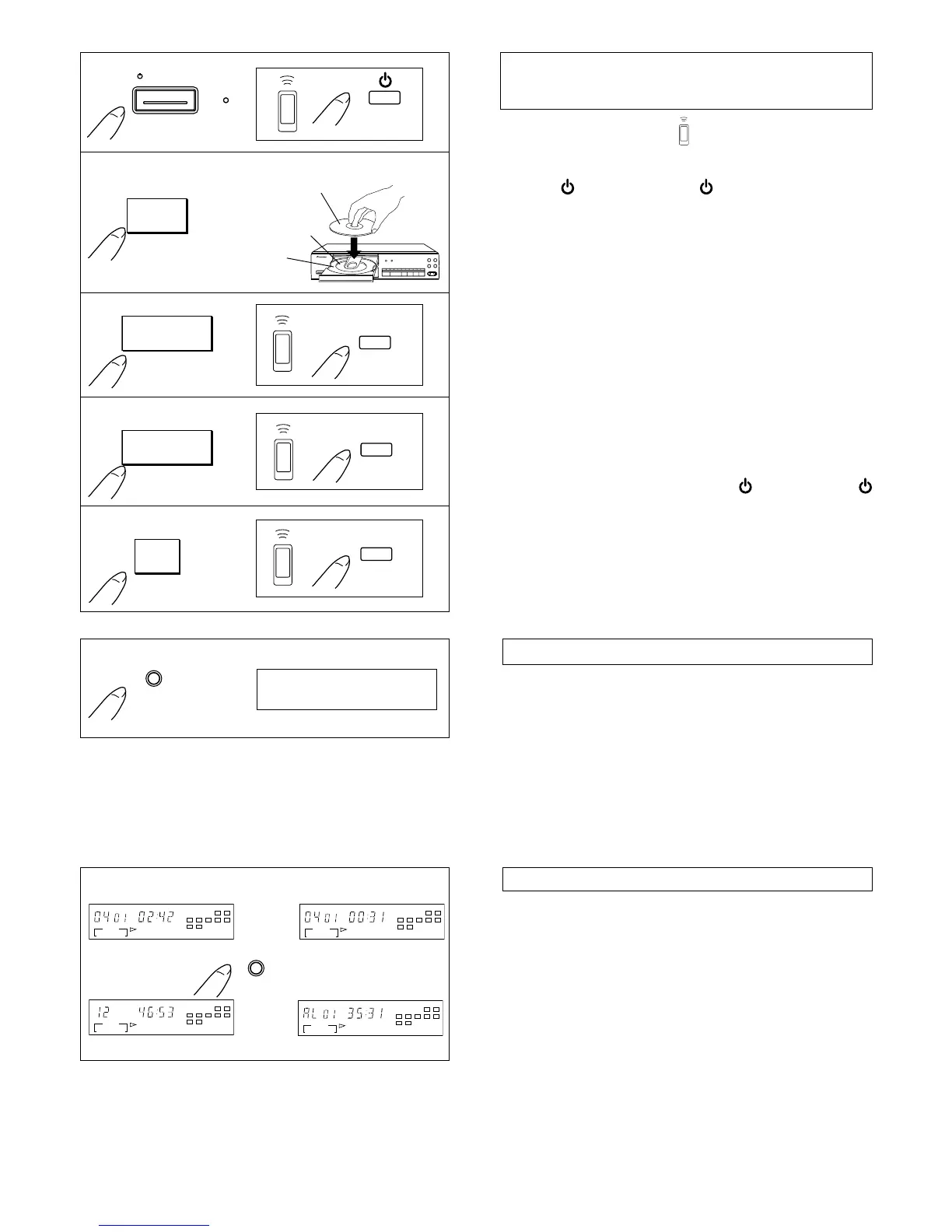

Operations indicated by the [ ] mark are performed with the
remote control unit. (PD-217 only)
1 Press STANDBY/ON (or on the remote control)
to turn on the power to the player.
2 Press OPEN/CLOSE and load a disc.
÷ Place the disc with the label surface facing UP.
÷ Place a disc on the disc tray according to the 8 cm CD disc
guide or 12 cm CD disc guide respectively.
3 Press 6 (or 3) to start playback.
To pause playback temporarily:
Press 6 (or 8). The 8 indicator lights and playback is paused at
that point.
Pressing 6 (or 8) again (or 3) resumes playback from the position
where pause mode was entered.
To stop playback:
Press 7.
To stop playback and take out the disc:
Press OPEN/CLOSE and remove the disc. Press OPEN/CLOSE
again to close the disc tray and then press STANDBY/ON (or
on the remote control) to turn off the power.
3
8
7

Pioneer PD-117 Specifications

Power

power requirements	220 - 240 V, 50/60 Hz
power consumption	12 W
operating temperature	+5˚C - +35˚C

Audio Performance

frequency response	2 Hz - 20 kHz
signal to noise ratio	98 dB or more
dynamic range	96 dB or more
harmonic distortion	0.003% or less
output voltage	2.0 V

Weight and Dimensions

weight	3.1 kg
width	420 mm
height	101 mm
depth	263 mm
