6. ADJUSTMENT
6.1 TUNER SECTION

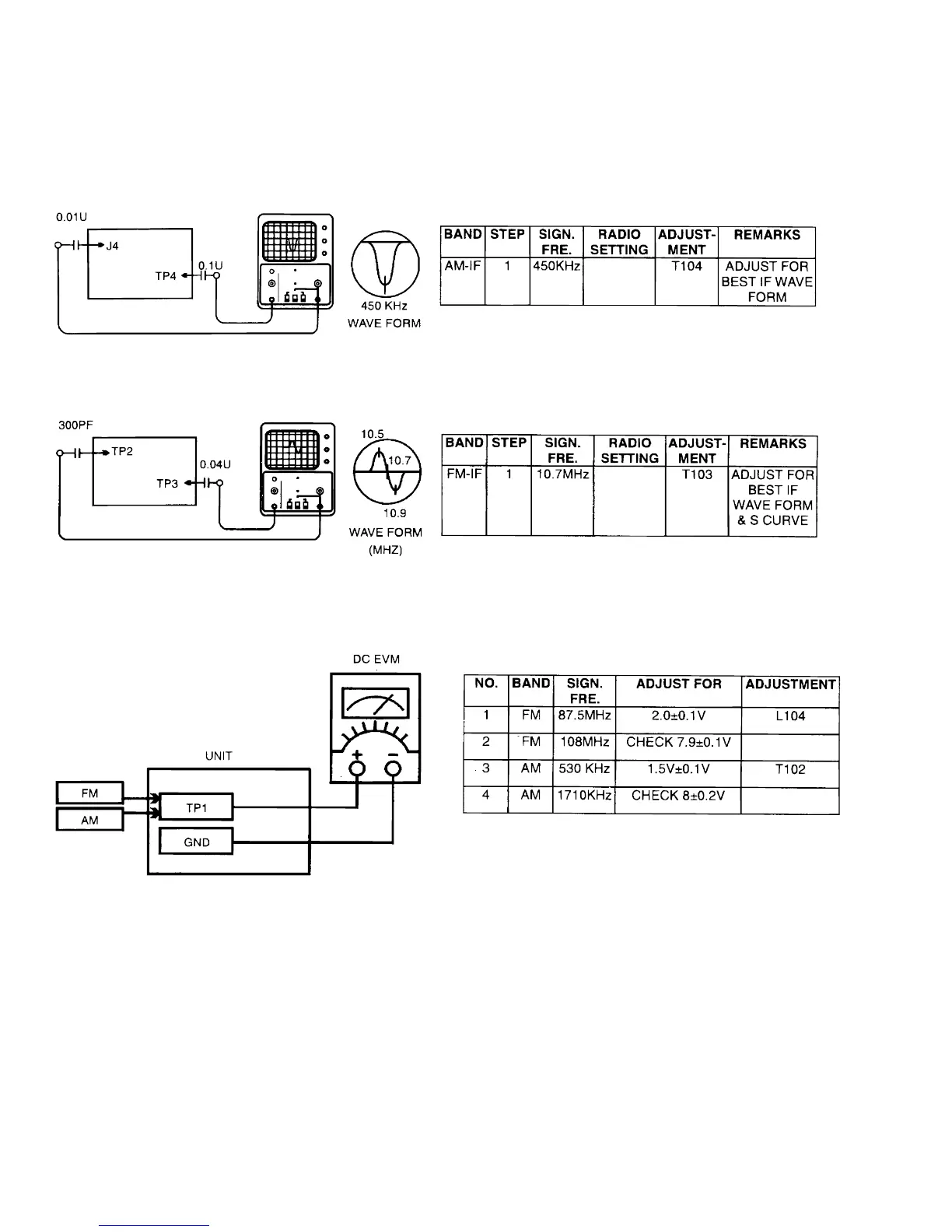

6.1.1 AM IF ADJUSTMENT
6.1.2 FM IF ADJUSTMENT
6.1.3 TUNING FREQUENCY RANGE ADJUSTMENTS
(FM, AM) DC Voltmeter.........Connect to TP1 and GND
Fig.1
Fig.2
Fig.3
