VSX-108
Continous Power Output
Front ............................50 W + 50 W (1kHz, 0.9%, 8 Ω)
Center .................................... 50 W (1kHz, 0.9%, 8 Ω)
Surround ................................. 50 W (1kHz, 0.9%, 8 Ω)
Input (Sensitivity/Impedance)
CD, VCR / TV ........................................200 mV/47 k Ω
Frequency Response
CD, VCR / TV ..........................5 Hz to 100,000 Hz
+0
–3
dB
Output (Level/Impedance)
VCR ....................................................200 mV/2.2 k Ω
Tone Control
BASS ............................................... ± 12 dB (100 Hz)
TREBLE ............................................ ± 12 dB (10 kHz)
LOUNDNESS .............. + 5 dB / + 4 dB (100 Hz/10 kHz)
Signal-to-Noise Ratio (IHF, short circuited, A network)
CD, VCR / TV ..................................................... 70 dB
∗ Measured pursuant to the Federal Trade Commission’s
Trade Regulation rule on Power Output Claims for
Amplifier.
∗∗ Measured by Audio Spectrum Analyzer
FM Tuner Section
Frequency Range ..........................87.5 MHz to 108 MHz
Stereo Separation .....................................40 dB (1 kHz)
Frequency Response..................30 Hz to 15 kHz (±3) dB
Antenna Input ......................................................300 Ω
AM Tuner Section
Frequency Range .......................... 530 kHz to 1,700 kHz
Antenna................................................... Loop antenna
Miscellaneous
Power Requirements ............................. AC 120 V, 60 Hz
Power Consumption ............................................ 210 W
Dimensions ....................420 (W) x 123 (H) x 321 (D) mm
Weight (without package) ......................................6.0 kg
Furnished Parts
FM Antenna ................................................................ 1
AM Loop Antenna .......................................................1
Dry Cell Batteries
[size “AA” (IEC R6P)] ................................................... 2
Remote Control Unit .................................................... 1
RCA Cable ................................................................. 1
Operating Instructions ............................................... 1
NOTE:
Specifications and the design are subject to possible
modifications without notice, due to improvements.
Manufactured under license from Dolby Laboratories
Licensing Corporation. “Dolby”, the double-D symbol
and “Pro Logic” are trademarks of Dolby Laboratories
Licensing Corporation.
8.2 SPECIFICATIONS

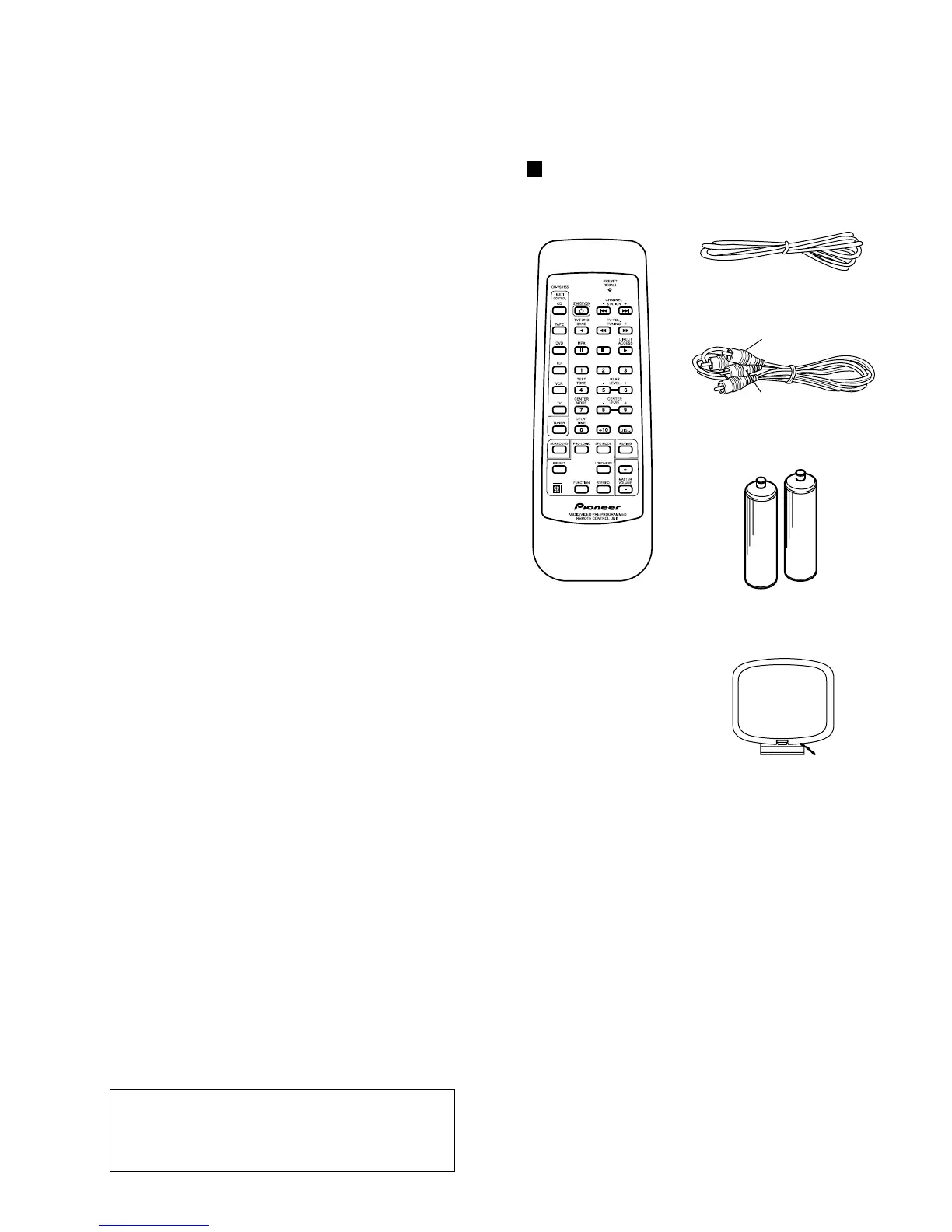

Accessories
(Red)
(White)
FM Antenna
(06410001003S)
Remote Control Unit
(18201080001S)
RCA Cable
Dry Cell Battery
(size "AA" IEC R6P) × 2
AM Loop Antena
(01582100001S)

Pioneer VSX 108 - AV Receiver Specifications

General

Brand	Pioneer
Model	VSX 108 - AV Receiver
Category	Receiver
Language	English
