Pioneer VSX-521-K Service Manual

8
VSX-821-K
1
2 3 4
A
B
C
D
E
F
1
2 3 4
Amplifier section
Continuous average power output of 80 watts* per
channel, min., at 8 ohms, from 20 Hz to 20 000 Hz with
no more than 0.08 %** total harmonic distortion.
Front (stereo)............................................................80 W + 80 W
Power output (1 kHz, 8 Ω, 0.05 %).......................110 W per channel
Guaranteed speaker impedance.....................................6 Ω to 16 Ω
* Measured pursuant to the Federal Trade Commission’s Trade
Regulation rule on Power Output Claims for Amplifiers
** Measured by Audio Spectrum Analyzer
Audio Section
Input (Sensitivity/Impedance)
LINE.......................................................................200 mV/47 kΩ
Output (Level/Impedance)
REC.......................................................................200 mV/2.2 kΩ
Signal-to-Noise Ratio (IHF, short circuited, A network)
LINE.....................................................................................98 dB
Signal-to-Noise Ratio [EIA, at 1 W (1 kHz)]
LINE.....................................................................................79 dB
Video Section
Signal level
Composite...............................................................1 Vp-p (75 Ω)
Component Video.............................................Y: 1.0 Vp-p (75 Ω)
PB, PR: 0.7 Vp-p (75 Ω)
Corresponding maximum resolution
Component Video..................................................1080p (1125p)
Tuner Section
Frequency Range (FM)...................................87.5 MHz to 108 MHz
Antenna Input (FM).................................................75 Ω unbalanced
Frequency Range (AM).....................................530 kHz to 1700 kHz
Antenna (AM)...............................................................Loop antenna
Digital In/Out Section
HDMI terminal............................................................Type A (19-pin)
HDMI output type............................................................5 V, 100 mA
ADAPTER PORT terminal..............................................5 V, 100 mA
Miscellaneous
Power Requirements................................................AC 120 V, 60 Hz
Power Consumption.................................................................415 W
In standby...........................................................0.4 W (Control OFF)
Dimensions....................435 mm (W) x 168 mm (H) x 362.5 mm (D)
17
3
/16 in. (W) x 6
5
/8 in. (H) x 14
5
/16 in. (D)
Weight (without package)....................................9.0 kg (19 lb 14 oz)
Furnished Parts
Microphone (for Auto MCACC setup)...............................................1
Remote control.................................................................................1
Dry cell batteries (AAA size IEC R03)..............................................2
AM loop antenna..............................................................................1
FM wire antenna..............................................................................1
Operating instructions......................................................................1
Note
Specifications and the design are subject to possible modifications
without notice, due to improvements.
VSX-521-K

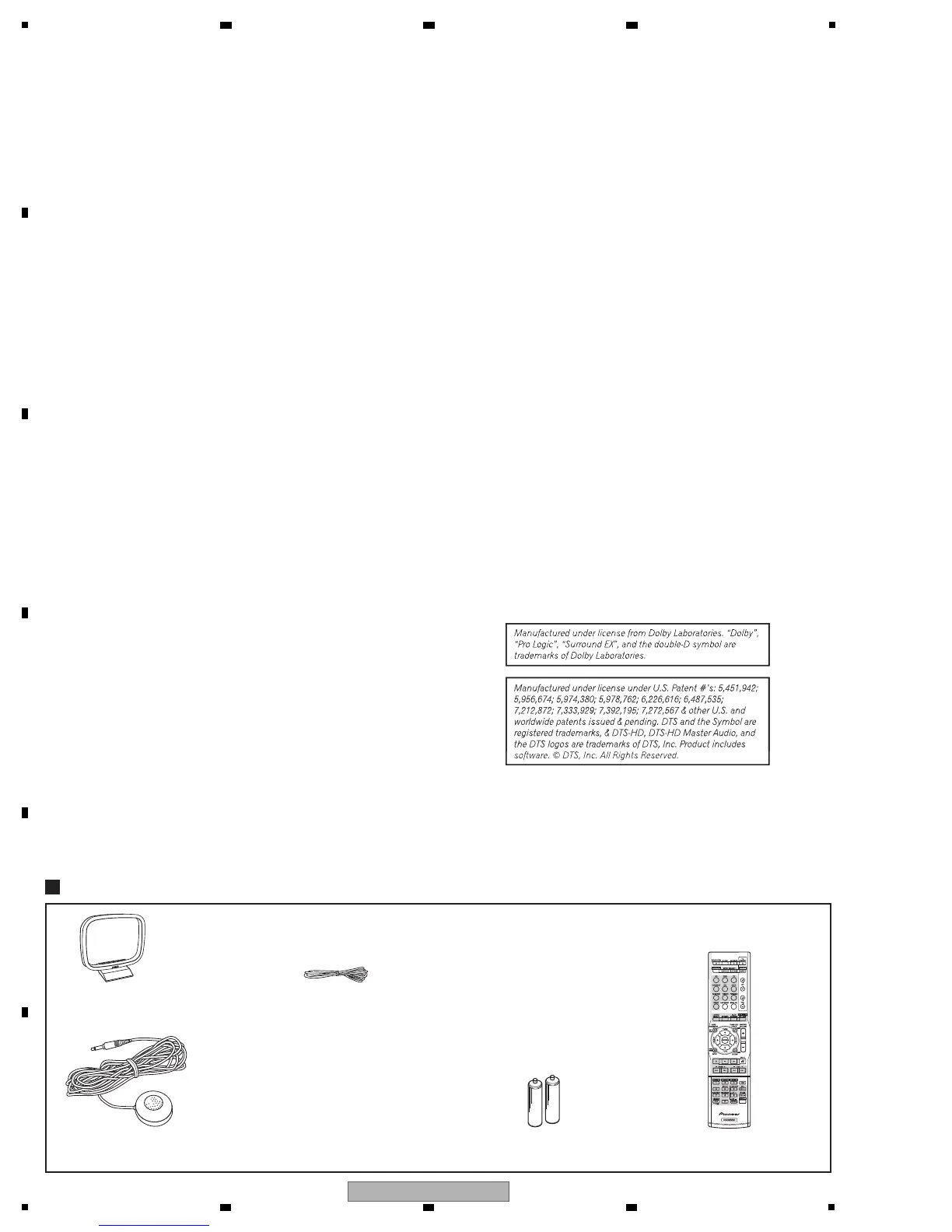

Accessories
Remote control
(8300761900010-IL)
AM loop antenna
(E601019000010-IL)
FM wire antenna
(E605010140010-IL)
Dry cell batteries
(AAA size IEC R03) x2
Microphone (for Auto MCACC setup)
(APM7008)

Pioneer VSX-521-K Specifications

General

Impedance	8 Ω
Receiver type	-
Frequency range	20 - 20000 Hz
RMS rated power	550 W
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	79 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	- W
AirPlay	No
Product color	Black
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD
Apple docking compatibility	Not supported
HDMI in	4
Digital audio coaxial in	1
Digital audio optical in	2
Multichannel audio input type	Terminals
Headphone connectivity	3.5 mm
Connectivity technology	Wired
AM band range	530 - 1700 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	30
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	415 W

Weight and Dimensions

Depth	363 mm
Width	435 mm
Height	168 mm
Weight	9000 g
