2. NAMES AND FUNCTIONS OF PARTS
NAMES OF PARTS

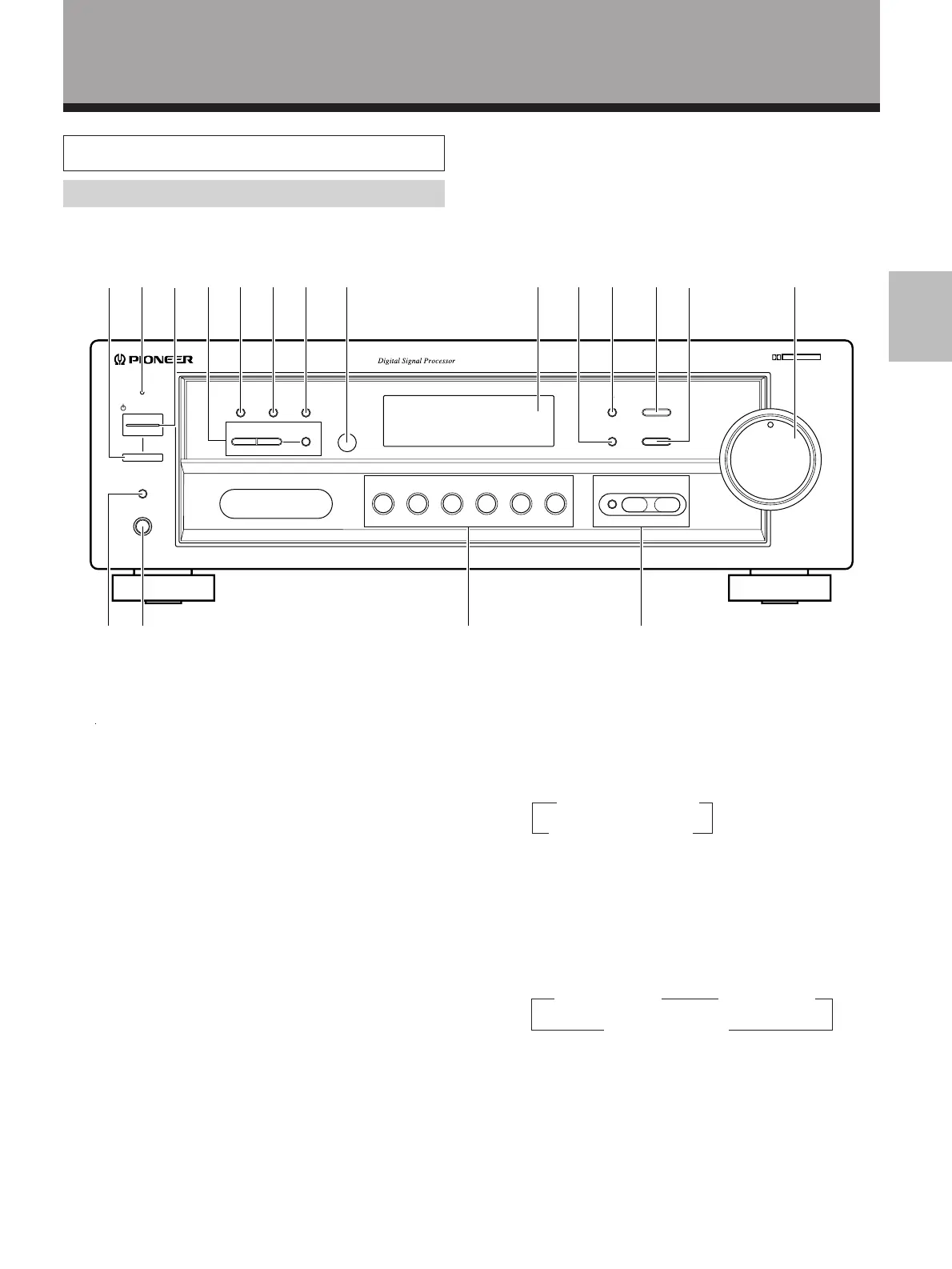

Front Panel
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
STANDBY
STANDBY/ON
SPEAKER
PHONES
MEMORY MPX MODE CLASS
STATION
FREQUENCY
–
–
+
+
TUNING
SELECT
Î
DSP
MODE
DOLBY
VIRTUAL
DOLBY
PRO LOGIC
LOUDNESS
SELECT TONE
BALANCE
–
L
+
R
MASTER
VOLUME
MIN
MAX
TAPE 2
MONITOR
PHONOFM/AMCDDVD/LD
VCR/
TAPE 1
4-CHANNEL
EQUAL POWER OUTPUT
– OFF - ON
N∫m¿Û
≤≤
≥
DOLBY SURROUND
PRO•LOGIC
1
@# $ %
234567 8 9 0- =~ !
3
3
TREBLE control
BASS control
2BALANCE control
TONE (–, +):
Use to adjust tone.
BALANCE (L, R):
Use to adjust volume balance.
The size of characters in the figure may different from
that on the actual product.
- DSP MODE button (P.15)
= DOLBY VIRTUAL button (P.19)
~ DOLBY PRO LOGIC button (P.14)
! MASTER VOLUME
@ SPEAKER button
Switches as follows with each press.
# PHONES jack (Headphone terminal)
$ Function buttons (P.21)
% SELECT, TONE (–, +) and BALANCE (L, R)
button
SELECT:
Use to select the TONE (TREBLE, BASS) and BAL-
ANCE control.
3 FRONT SPEAKER ON
2
FRONT SPEAKER OFF
1 Power button
2 STANDBY indicator
3
STANDBY/ON button
4 TUNING SELECT, STATION(–, +), FRE-
QUENCY (–, +) button
TUNING SELECT:
Use to select the STATION mode and FREQUENCY
mode when operating the tuner.
STATION (–, +):
Use to select the station number when operating the
tuner.
FREQUENCY (–, +):
Use to select the frequency when operating the tuner.
5 MEMORY button
6 MPX MODE button
Use to switch the auto stereo/monaural mode for re-
ceiving FM broadcasts.
When the received broadcast signal is weak, press
this button to set the monaural mode.
7 CLASS button (P.22)
8 Remote sensor
9 Display
0 LOUDNESS button
Press this button when the volume is low to raise
the low and high range levels so that the sound can
be heard more easily.
