MAINTENANCE
Clutch System
Drive Belt Installation

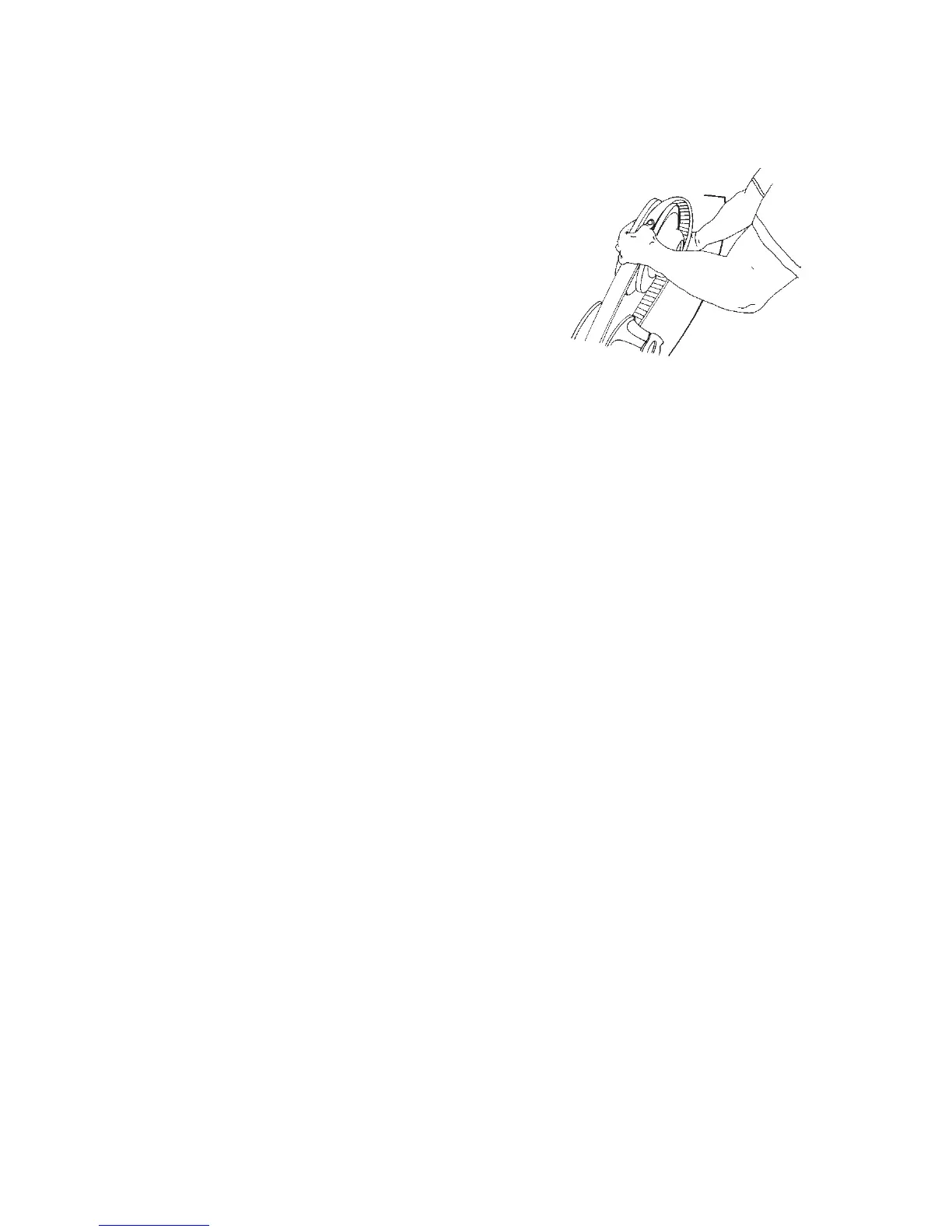

1. Drop the drive belt over the drive
clutch and pull back the slack.
The belt cord line should be flush
with, or slightly above, the outer
circumference of the driven
clutch sheaves. The belt will seat
itself in the driven clutch during
the break-in period. Adjust the
belt ride-out after the break-in
period by readjusting belt deflec-
tion.
2. To ensure satisfactory belt life, install belts so they operate in the
same direction of rotation by positioning the identification numbers
so that you can read them from the left side of the vehicle. If
required, separate the sheaves as outlined in the belt removal proce-
dures.
3. Rotate the L-wrench counter-clockwise to tighten the sheaves while
working the belt to the outer edge of the sheaves.
4. Remove the L-wrench and store it in the tool kit.
5. Reinstall the side panel.
6. Close and secure the hood.
7. Break in the new belt. See page 65.
