MAINTENANCE
Headlights
Headlight Adju stment
The headlight may be adjusted for
vertical aim using the following
procedure:
1. Place the snowmobile on a level
surface with the headlight
approximately 25 feet (7.6m)
from a wall.
2. Measure the distance from the
floor to the center of the
headlight and make a mark on
the wall.
3. S tart the engine and turn the
headlight switch to high beam.
4. Observe t he headlight aim. The
most intense part of the
headlight beam should be aimed
2″ (5.1 cm) below the mark
placed on the wall in step 2.
NOTE: Rider weight must be
included on the seat.
5. Turn the adjustment nut (A),
located inside the hood, just
below the headlamp opening.
Turn the knob in or out as
needed for proper aim.

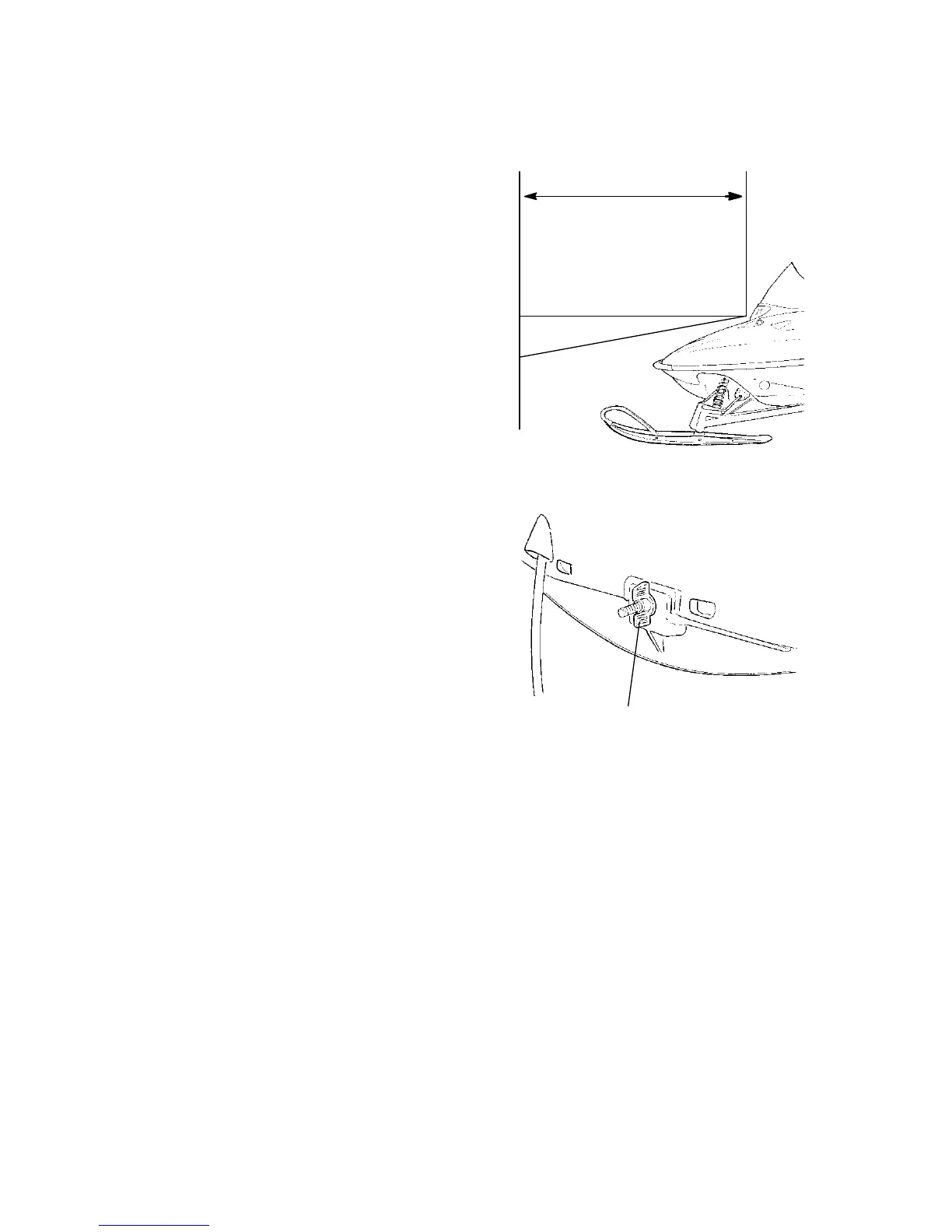

25’ (7.6 m)
Lamp Center
Height
2″ (5.1 cm)
A
